Operation Procedure

  1. Turn ignition switch ON and wait 20 seconds.

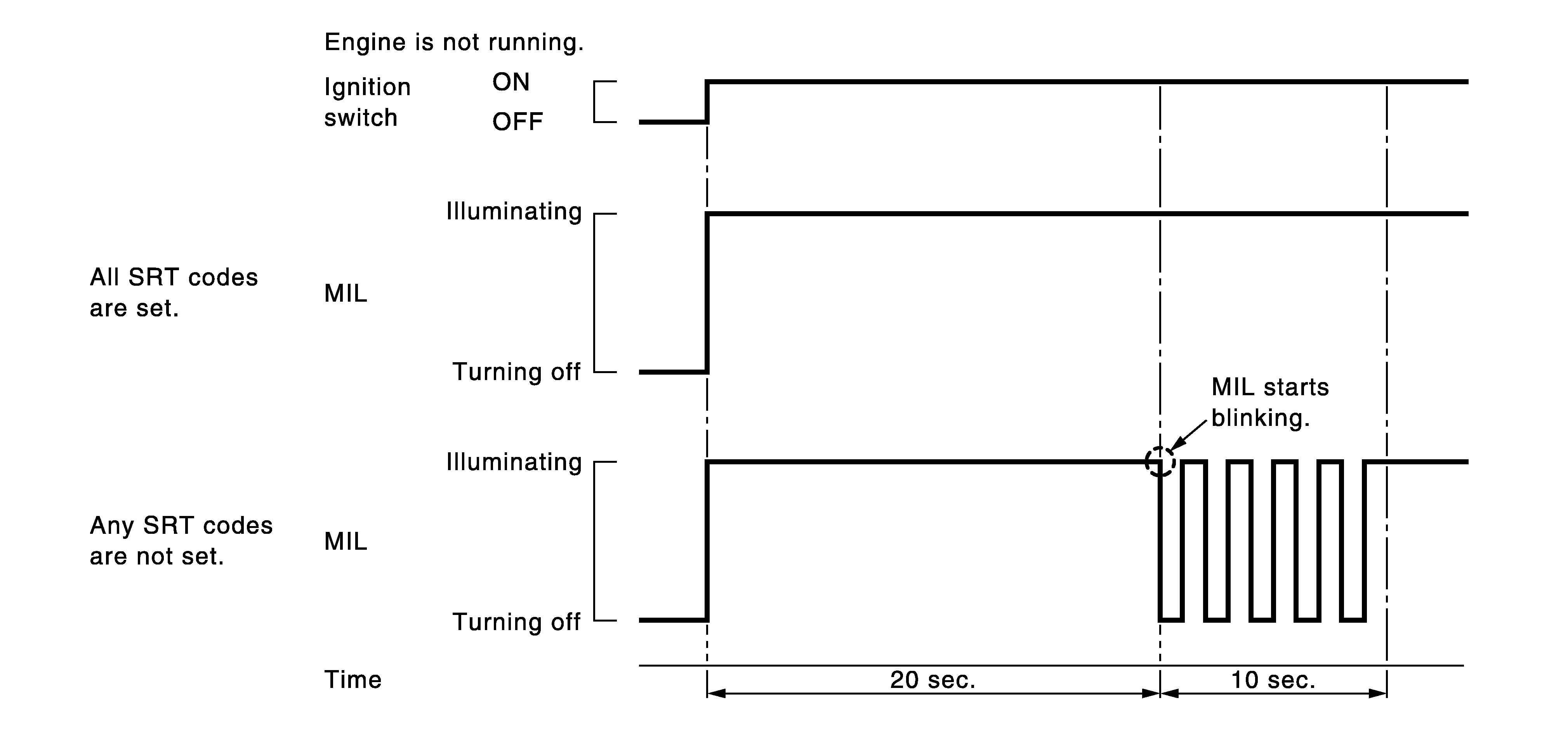

  2. SRT status is indicated as shown blow.
    • ECM continues to illuminate MIL if all SRT codes are set.
    • ECM blinks MIL for about 10 seconds if all SRT codes are not set.
    G05868475Courtesy of NISSAN NORTH AMERICA, INC.
