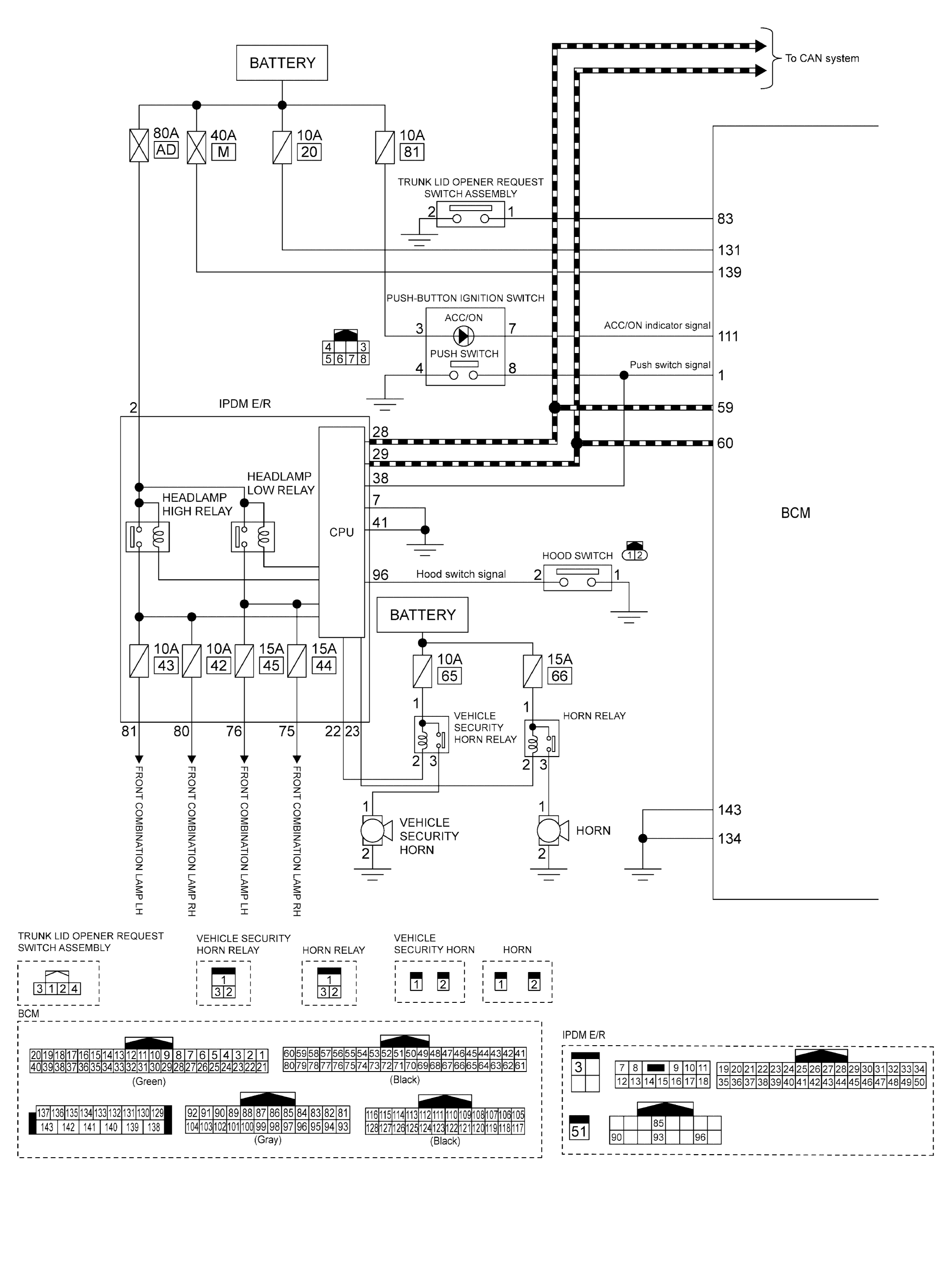

For 2.0L Turbo Gasoline Engine Models

GNSJMKIB7510GB-510

Courtesy of NISSAN NORTH AMERICA, INC.

GNSJMKIB7511GB-511

Courtesy of NISSAN NORTH AMERICA, INC.
