Bench Seat Models

WARNING: This page is about a different car, the 2019 Infiniti Q50. However, it is still accessible from the selected car via links, so may be relevant.

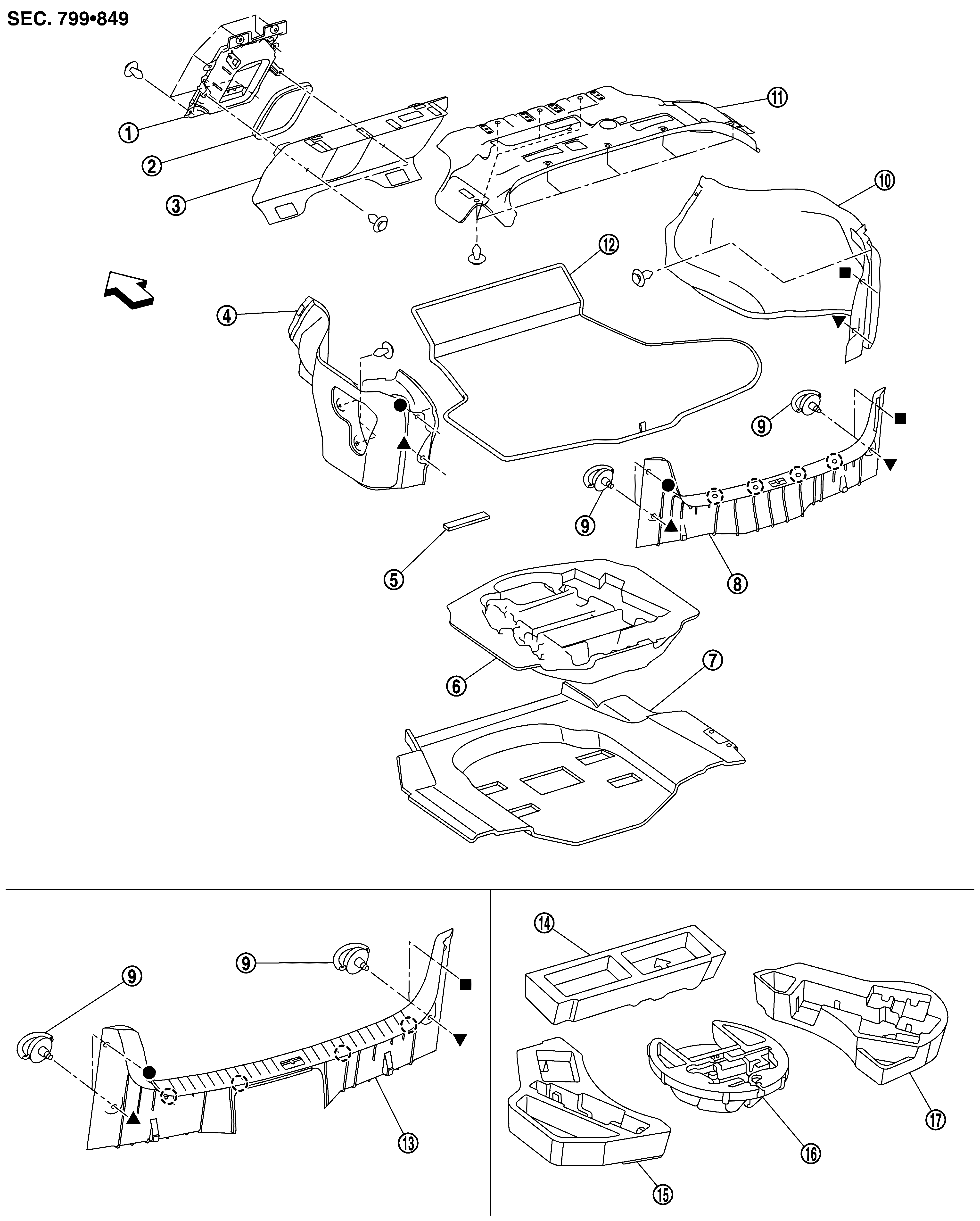

GNSJMJIA9078Z-078Courtesy of NISSAN NORTH AMERICA, INC.

SYMBOL

Rear seatback center finisher

SYMBOL

Rear seatback welt

SYMBOL

Trunk front finisher

SYMBOL

Trunk side finisher LH

SYMBOL

Trunk floor front spacer *1

SYMBOL

Trunk center box *1

SYMBOL

Thinsulate

SYMBOL

Trunk rear plate *1

SYMBOL

Trunk net hook

SYMBOL

Trunk side finisher RH

SYMBOL

Trunk upper finisher

SYMBOL

Trunk floor carpet

SYMBOL

Trunk rear plate *2

SYMBOL

Trunk floor front spacer *2

SYMBOL

Trunk floor rear spacer LH *2

SYMBOL

Trunk floor rear spacer center *2

SYMBOL

Trunk floor rear spacer RH *2

SYMBOL

: Clip

SYMBOL

: Pawl

SYMBOL

: Vehicle front

SYMBOL , SYMBOL , SYMBOL , SYMBOL : Indicates that the part is connected at points with same symbol in actual vehicle.

*1: Without spare tire.

*2: With spare tire.
