Exploded View

WARNING: This page is about a different car, the 2019 Infiniti Q50. However, it is still accessible from the selected car via links, so may be relevant.

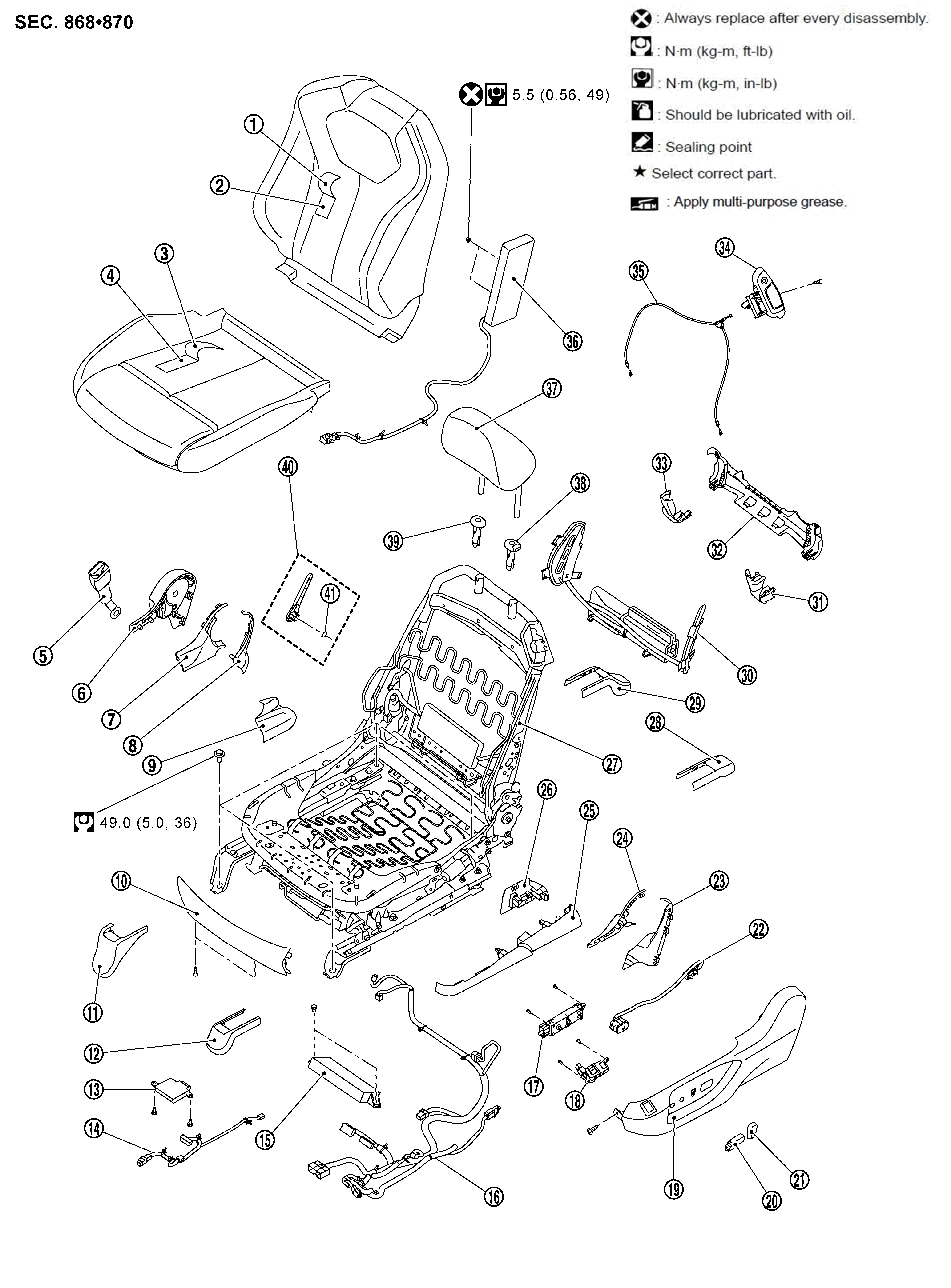

Fig 1: Front Seat With Torque Specification

Courtesy of NISSAN NORTH AMERICA, INC.

Seatback trim	Seatback pad	Seat cushion trim
Seat cushion pad	Seat belt buckle^*	Seat cushion outside finisher inner side
Seat cushion inside finisher inner side front	Seat cushion inside finisher inner side rear	Seat cushion lowside finisher inner side
Seat cushion forward finisher	Front leg cover inner side	Front leg cover outer side
Occupant detection system control unit	ODS harness connector	Driver seat control unit
Harness assembly	Power seat switch	Side support switch (If equipped)
Seat cushion outside finisher outer side	Slide knob	Reclining knob
Lumber support switch	Seat cushion inside finisher outer side rear	Seat cushion inside finisher outer side front
Seat cushion outside finisher outer side lower	Seat cushion inside finisher outer side lower	Seat frame
Rear leg cover outer side	Rear leg cover inner side	Side support assembly (If equipped)
Arm cover LH	Rear arm cover	Arm cover RH
Walk-in lever	Reclining device wire	Side air bag assembly
Headrest	Headrest holder (lock)	Headrest holder (free)
Lumber lever (If equipped)	Snap ring (If equipped)
: Always replace after every disassembly.
: N.m (kg-m, in-lb)
: N.m (kg-m, ft-lb)

*: Tighten together with seat belt buckle and tongue. Refer to Exploded View .
