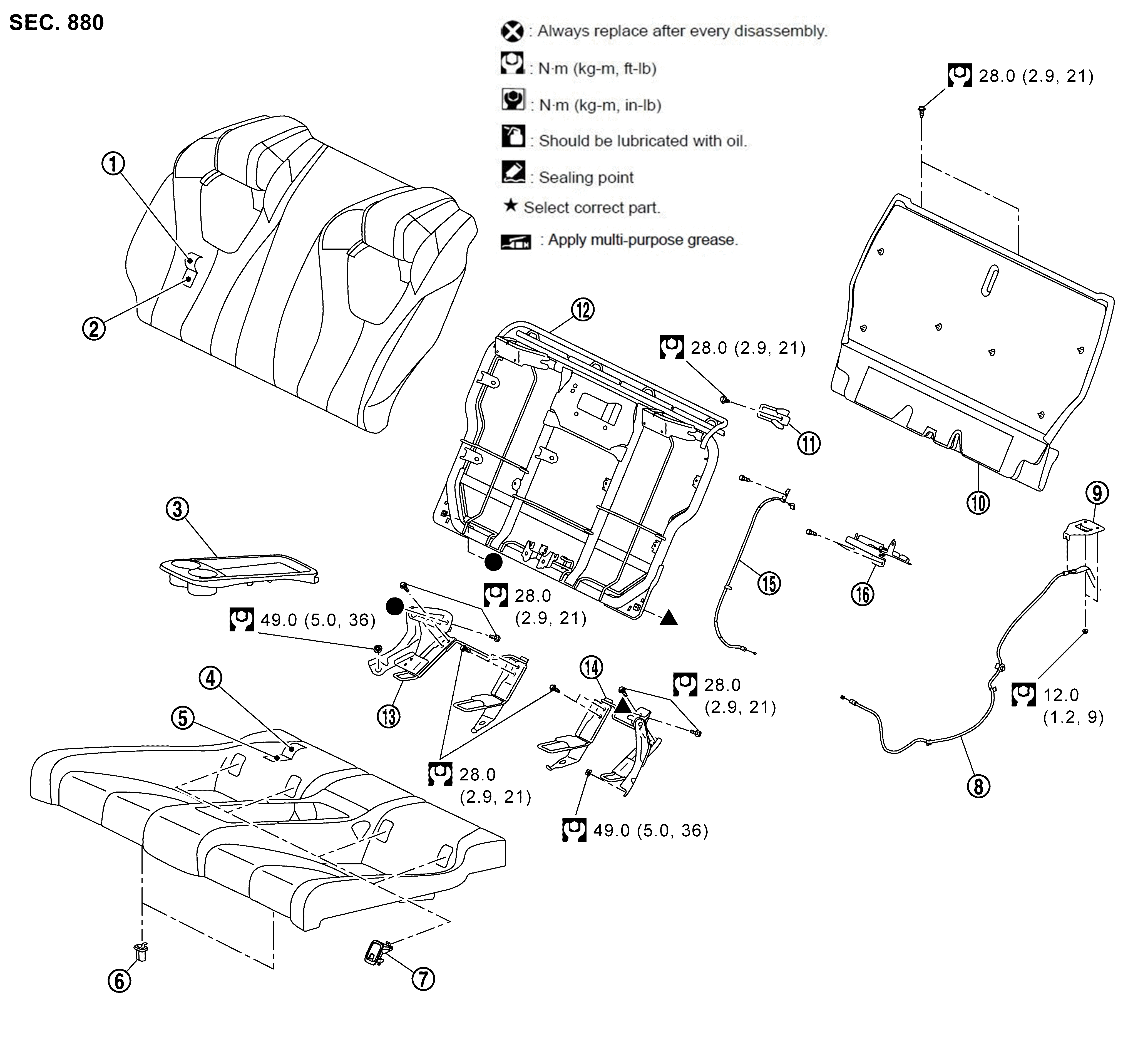

Exploded View
WARNING: This page is about a different car, the 2019 Infiniti Q50. However, it is still accessible from the selected car via links, so may be relevant.
|
|
Seatback trim |
|
Seatback pad |
|
Center tray |
|
|
Seat cushion trim |
|
Seat cushion pad |
|
Seat cushion hook |
|
|
ISO FIX escutcheon & cap |
|
Seatback control cable |
|
Seatback control handle |
|
|
Seatback board |
|
Seat striker |
|
Seatback frame |
|
|
ISO FIX bracket RH |
|
ISO FIX bracket LH |
|
Seatback lock cable |
|
|
Seatback lock assembly |
||||
|
|
: N.m (kg-m, ft-lb) |
||||
|
|
|||||
