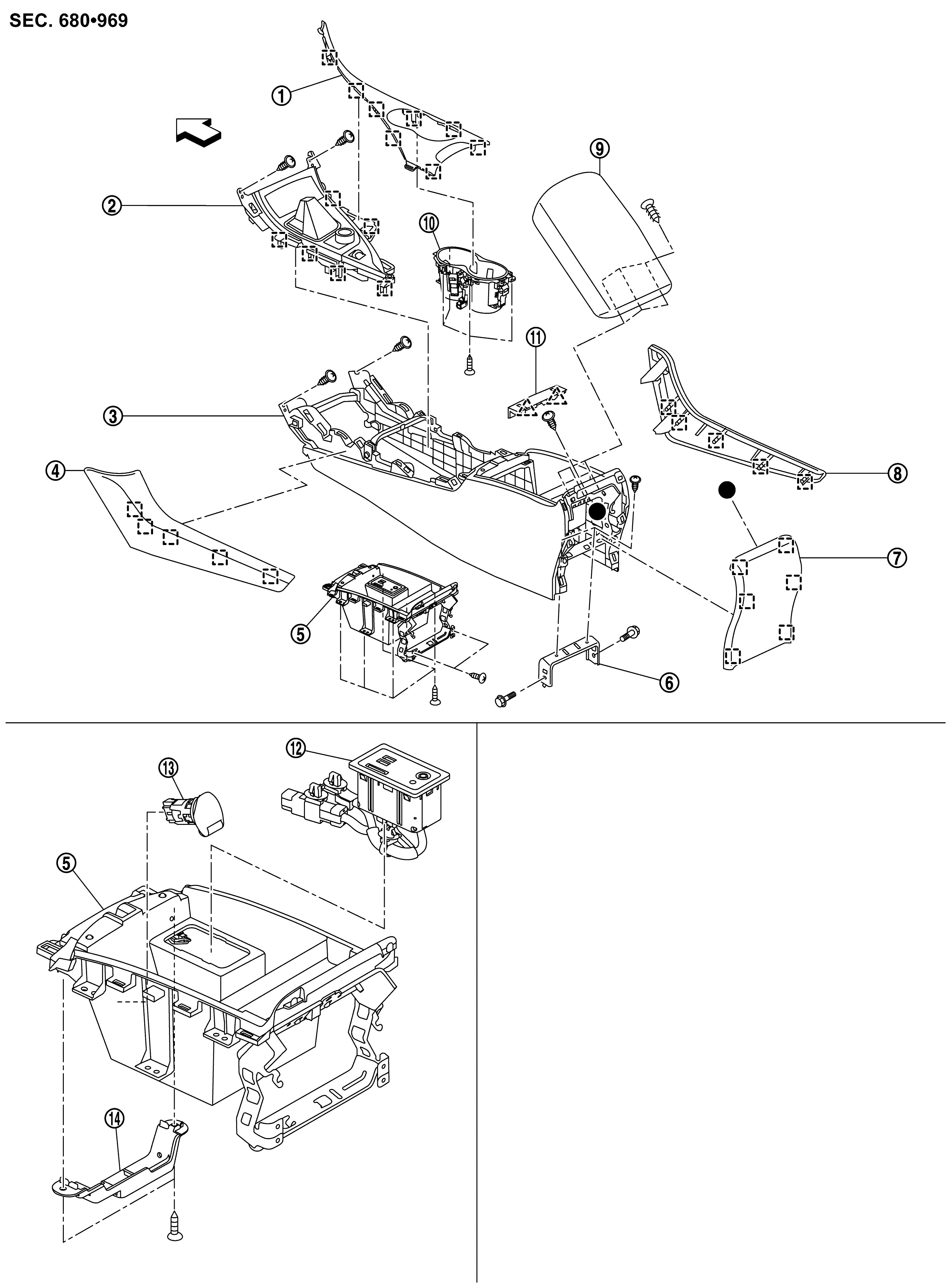

Center Console Assembly

WARNING: This page is about a different car, the 2019 Infiniti Q50. However, it is still accessible from the selected car via links, so may be relevant.

Courtesy of NISSAN NORTH AMERICA, INC.

	Console upper finisher	Console finisher assembly	Center console assembly
	Center console side finisher LH	Console box assembly	Console rear bracket
	Console rear finisher assembly	Center console side finisher RH	Console lid assembly
	Cup holder assembly	Console mask	External data input box
	Power socket assembly	Console bracket
	: Pawl
	: Metal clip
	: Vehicle front
: Indicates that the part is connected at points with same symbol in actual vehicle.
