Front Disc Brake: Inspection: Inspection

WARNING: This page is about a different car, the 2019 Infiniti Q50. However, it is still accessible from the selected car via links, so may be relevant.

Uneven wear

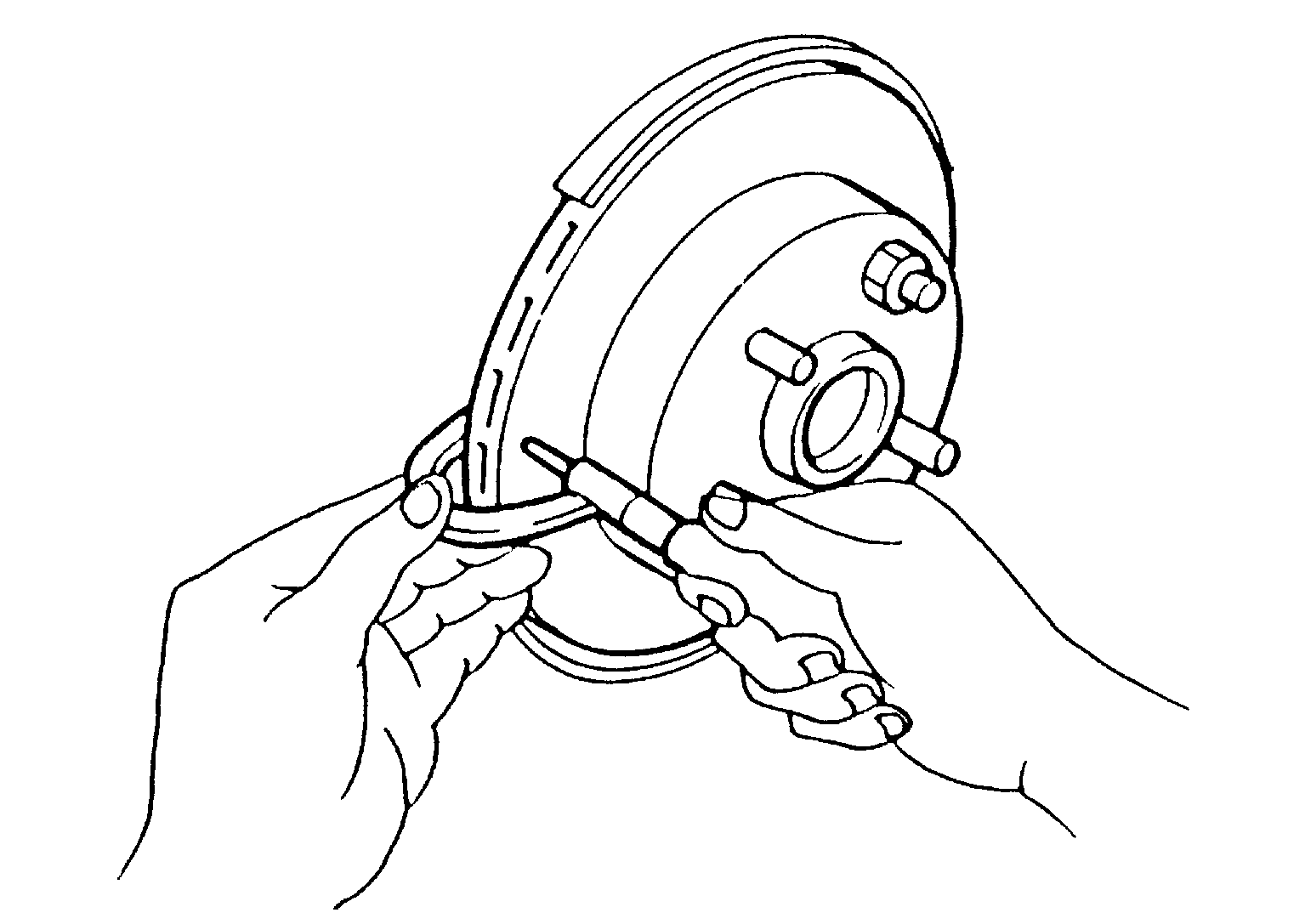

Check the uneven wear of the disc rotor using a micrometer. Replace the disc rotor if the thickness is below the wear limit.

2WD: Refer to Removal and Installation
AWD: Refer to Removal and Installation

Courtesy of NISSAN NORTH AMERICA, INC.

Thickness variation (measured at 8 positions)

: Refer to Front Disc Brake .
