ADAS Control Unit |
|
 |
ECM |
- ECM transmits the accelerator pedal position signal, etc. to ADAS Control Unit via CAN Communication
- ECM controls the fuel injection quantity based on the engine torque demand received from the ADAS Control Unit via CAN Communication

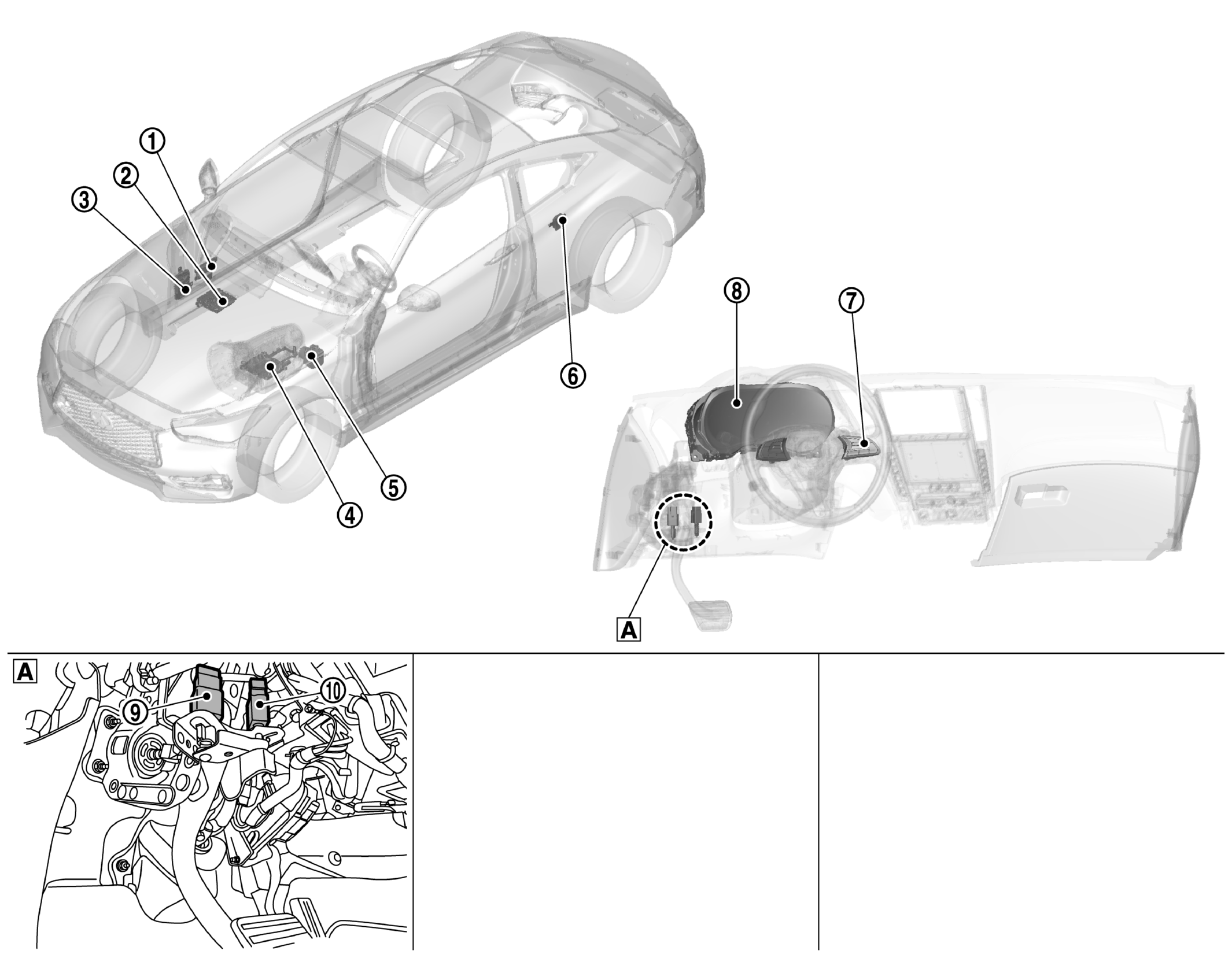

- Refer to COMPONENT LOCATION
for detailed installation location
|
 |
BCM |
- BCM transmits the stop Lamp Switch signal to ADAS Control Unit via CAN Communication
- Refer to COMPONENT LOCATION
for detailed installation location
|
 |
EMCM |
- EMCM transmits the brake Pedal Position Switch signal to ADAS Control Unit via CAN Communication
- EMCM transmits the brake Pedal Position Switch signal, stop Lamp Switch signal to ECM Control Unit via CAN Communication
- Refer to COMPONENT LOCATION
for detailed installation location
|
 |
TCM |
- TCM transmits the signal related to A/T control to ADAS Control Unit via ECM
- Refer to COMPONENT LOCATION
for detailed installation location
|
 |
ABS Actuator And Electric Unit (Control Unit) |
- ABS Actuator And Electric Unit (Control Unit) transmits the vehicle speed signal (wheel speed), stop Lamp Switch signal and VDC/TCS/ABS system operation condition to ADAS Control Unit via CAN Communication
- Refer to COMPONENT LOCATION
for detailed installation location
|
 |
Chassis Control Module |
- Chassis Control Module transmits the a drive mode signal to ADAS Control Unit via CAN Communication
- Refer to COMPONENT LOCATION
for detailed installation location
|
 |
Steering Switch |
|
 |
Combination Meter |
Performs the following operations using the signals received from the ADAS Control Unit via the CAN Communication
|
 |
Brake Pedal Position Switch |
Refer to BRAKE PEDAL POSITION SWITCH / STOP LAMP SWITCH |
 |
Stop Lamp Switch |
