For 2.0L Turbo Gasoline Engine Models

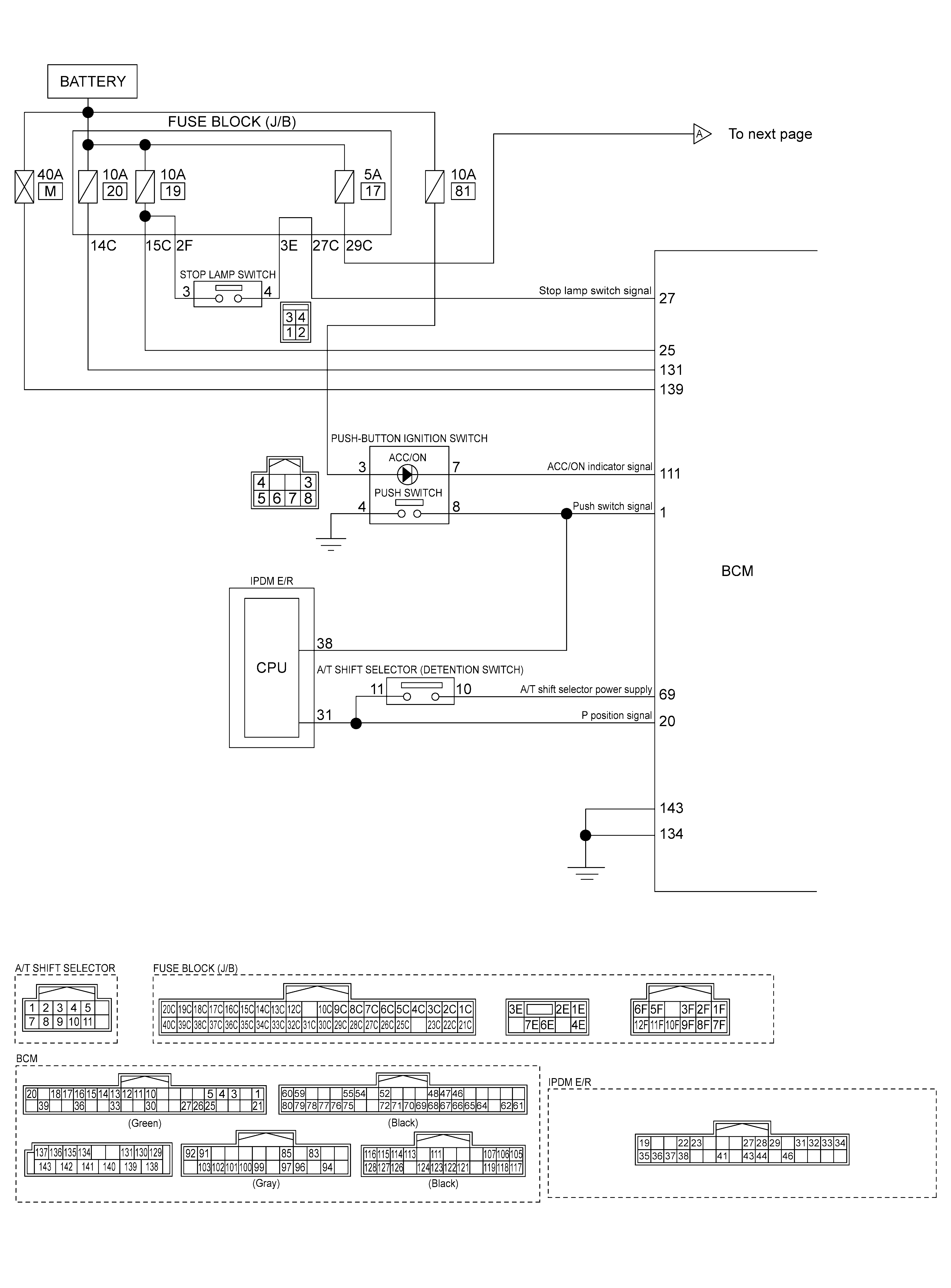

GNSJMKIB6819GB-819

Courtesy of NISSAN NORTH AMERICA, INC.

GNSJMKIB6818GB-818

Courtesy of NISSAN NORTH AMERICA, INC.
