System Description
›
System
›
Vehicle Security System
›

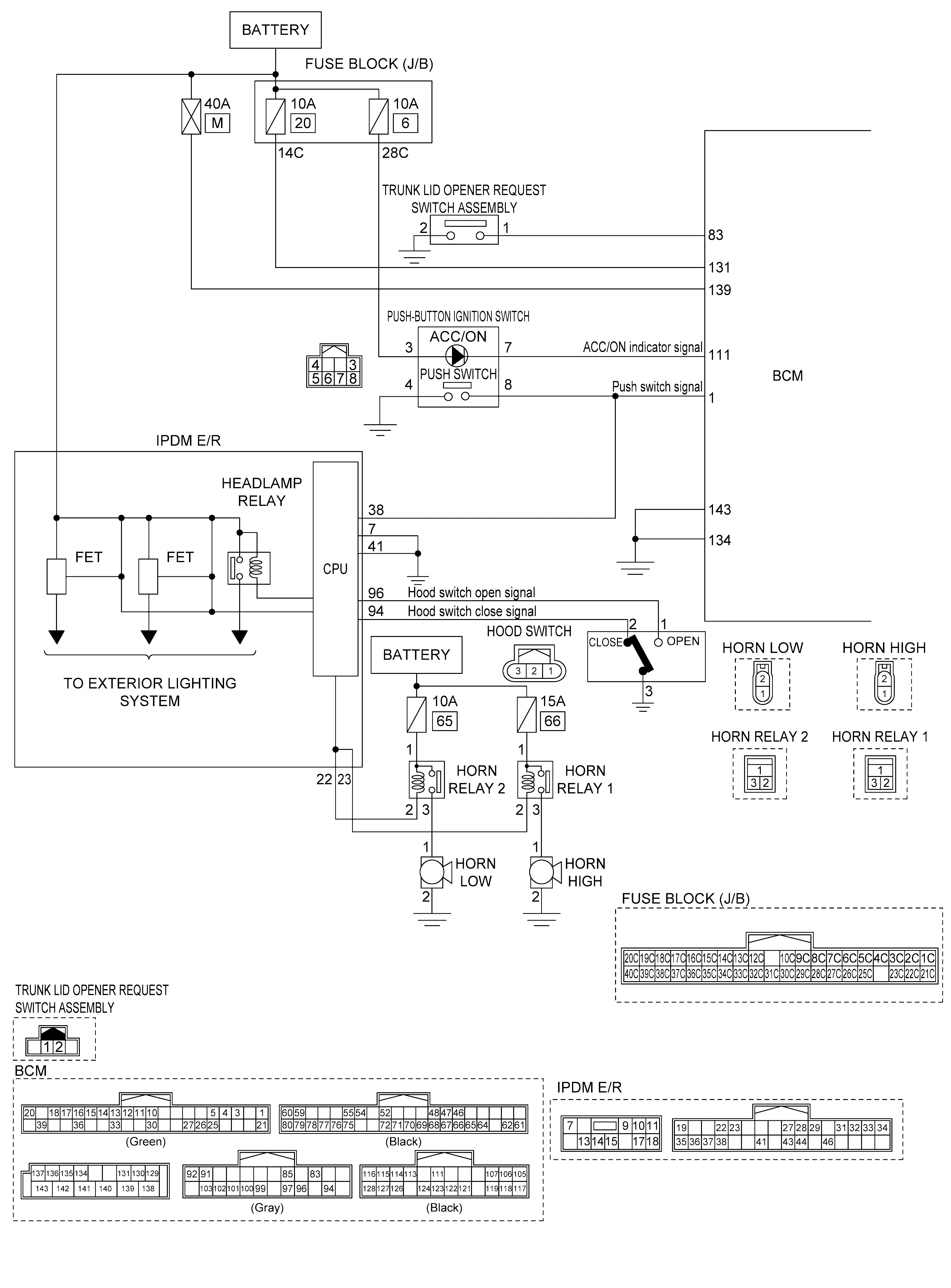

Circuit Diagram
›
VR30DDTT Engine Models (Except For MEXICO)
VR30DDTT Engine Models (Except For MEXICO)
Courtesy of NISSAN NORTH AMERICA, INC.
Courtesy of NISSAN NORTH AMERICA, INC.
Courtesy of NISSAN NORTH AMERICA, INC.
