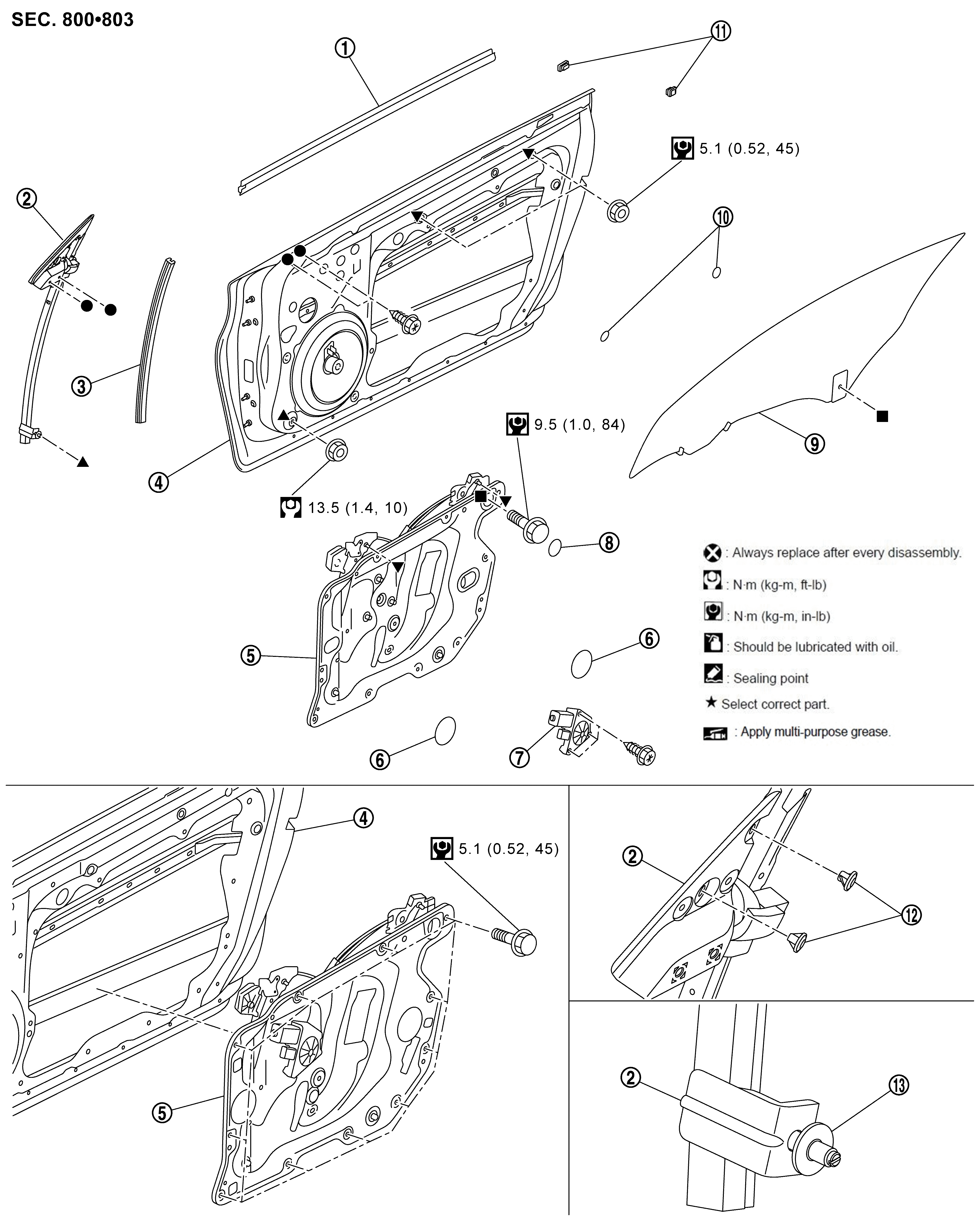

Exploded View With Torque Specifications

Courtesy of NISSAN NORTH AMERICA, INC.

	Door inside seal		Corner piece assembly		Door weather - strip
	Door panel		Door module assembly*		Hole cover A
	Power window motor		Hole cover B		Door glass
	Hole cover C		Door glass stabilizer		Clip (Seal packing)
	Adjust bolt
	: N•m (kg - m, in - lb)
	N•m (kg - m, ft - lb)
, , , : Indicates that the part is connected at points with same symbol in actual vehicle.

^* : Door regulator is included in door module assembly.
