Exploded View

2WD

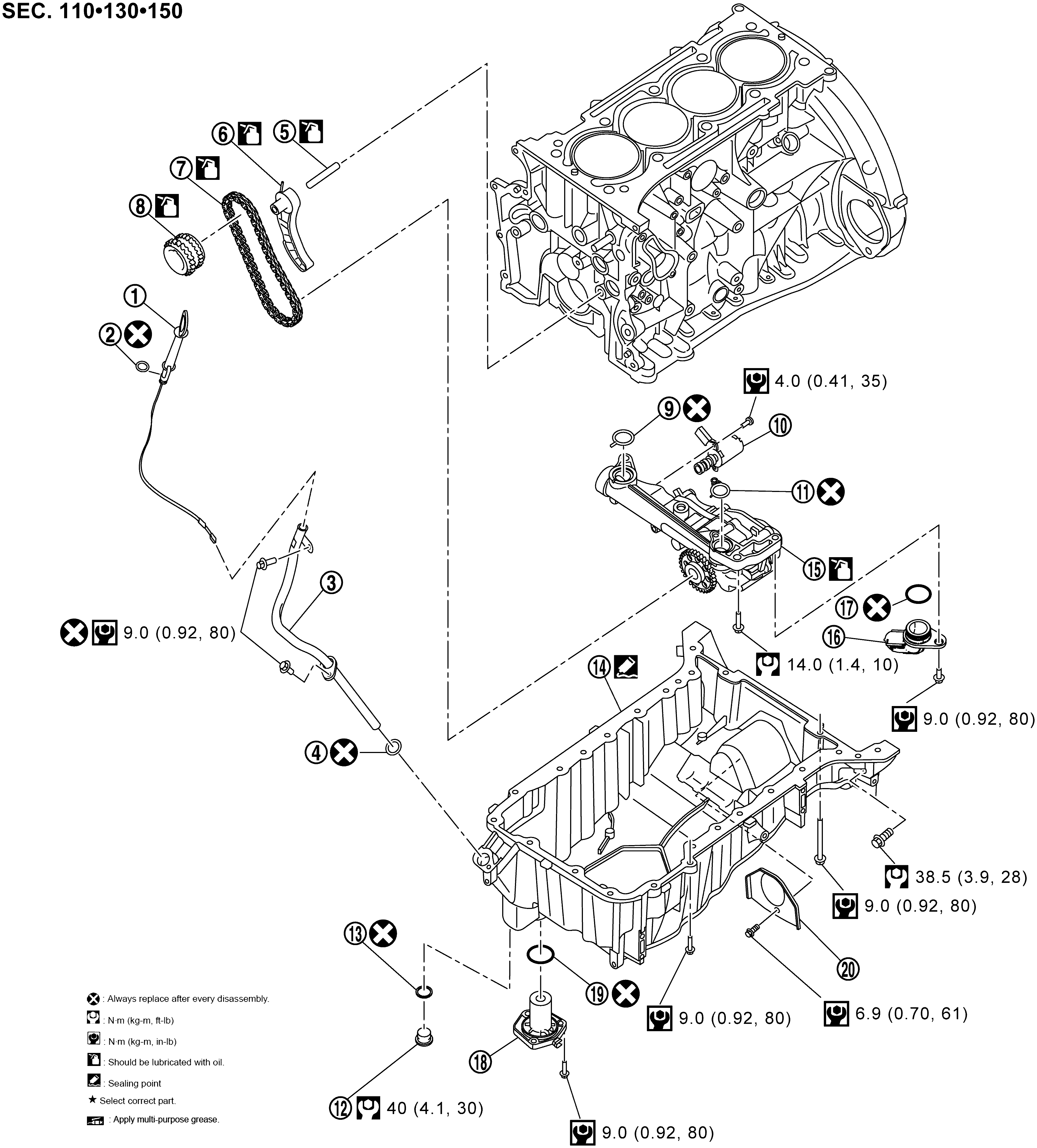

Fig 1: Oil Pump 2WD With Torque Specifications

GNSJSBIA9958GB-958

Courtesy of NISSAN NORTH AMERICA, INC.

	Oil Level Gauge		O-Ring		Oil Level Gauge Guide
	O-Ring		Slide Rail Pin		Timing Chain Guide
	Timing Chain (Oil Pump)		Crank Sprocket		O-Ring
	Engine Oil Pump Valve		O-Ring		Oil Drain Screw
	Oil Drain Screw Washer		Oil Pan		Engine Oil Pump
	Oil Suction Pipe		O-Ring		Engine Oil Level Switch
	O-Ring		Rear Plate Cover
	: Always replace after every disassembly.
	: N•m (kg - m, in - lb)
	: N•m (kg - m, ft - lb)
	: Sealing point
	: Should be lubricated with oil.

AWD

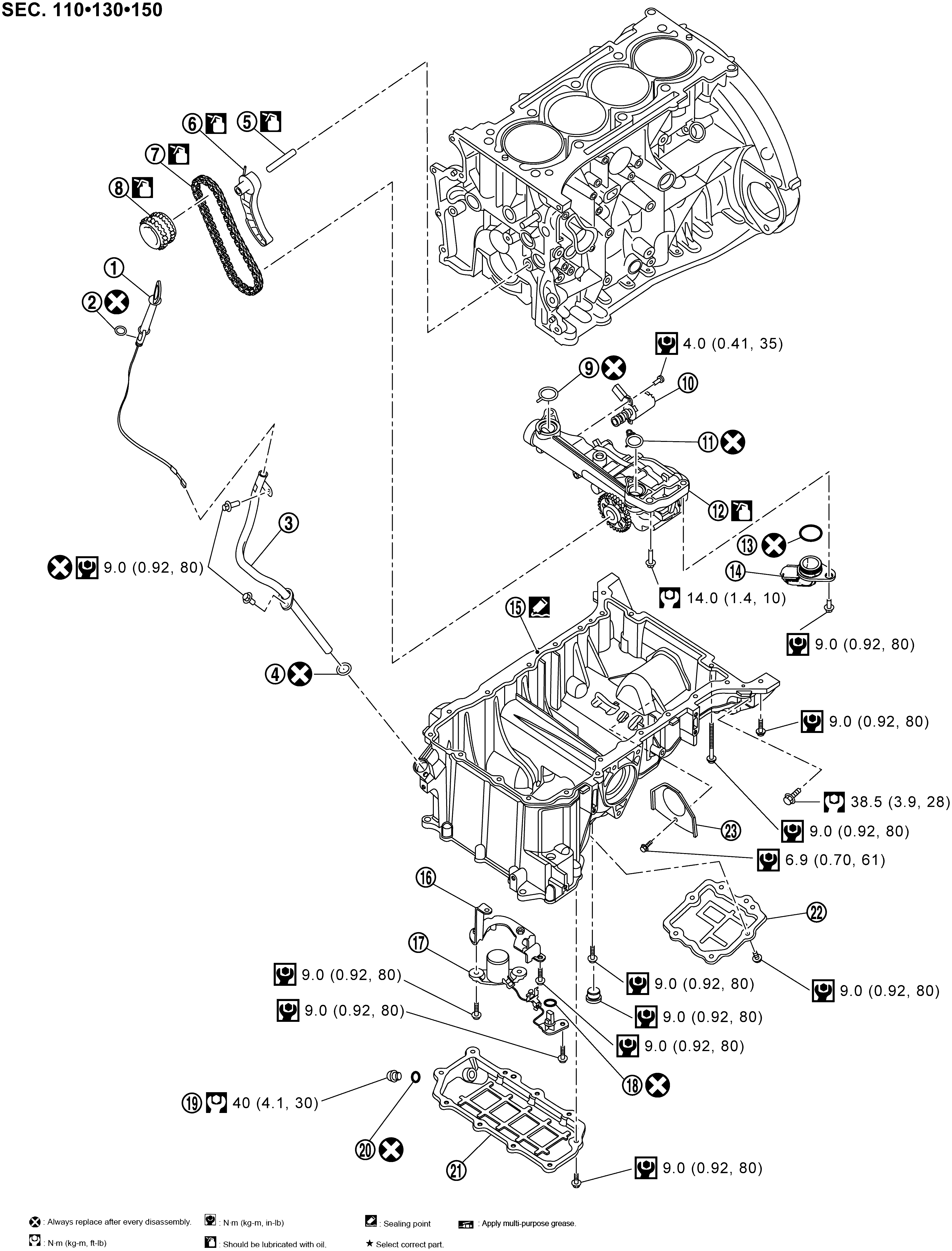

Fig 2: Oil Pump 4WD With Torque Specifications

GNSJSBIA9956GB-956

Courtesy of NISSAN NORTH AMERICA, INC.

	Oil Level Gauge		O-Ring		Oil Level Gauge Guide
	O-Ring		Slide Rail Pin		Timing Chain Guide
	Timing Chain (Oil Pump)		Crank Sprocket		O-Ring
	Engine Oil Pump Valve		O-Ring		Engine Oil Pump
	O-Ring		Oil Suction Pipe		Oil Pan
	Engine Oil Level Switch Bracket		Engine Oil Level Switch		O-Ring
	Oil Drain Screw		Oil Drain Screw Washer		Oil Pan (Lower Front)
	Oil Pan (Lower Rear)		Rear Plate Cover
	: Always replace after every disassembly.
	: N•m (kg - m, in - lb)
	: N•m (kg - m, ft - lb)
	: Sealing point
	: Should be lubricated with oil.
