Disassembly And Assembly: Disassembly

Remove main fuel level sensor unit as follows:

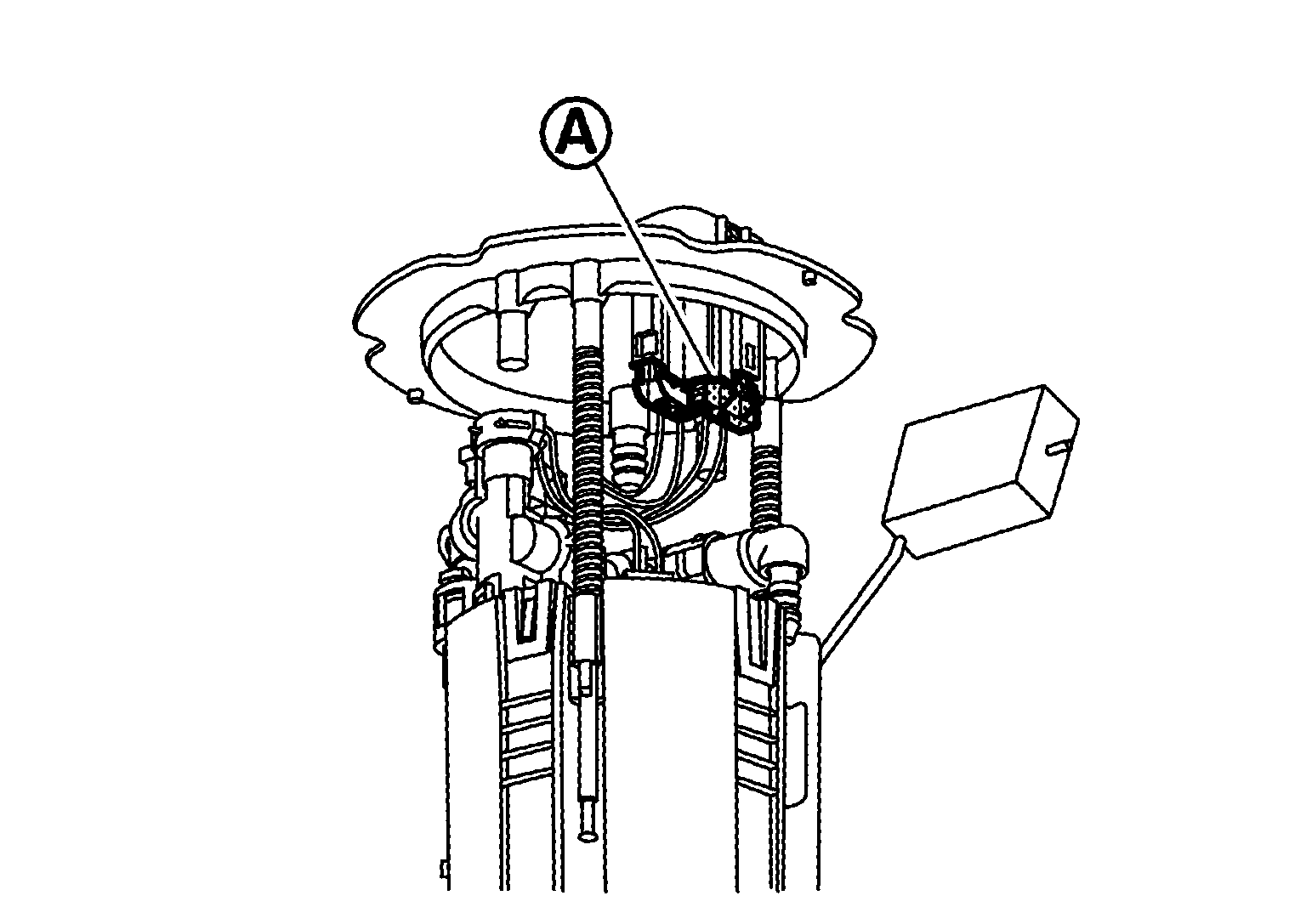

1. Disconnect harness connector .

   Courtesy of NISSAN NORTH AMERICA, INC.

   1. Hold connector by fingers and push stopper release tab.
   2. Pull it out connector.

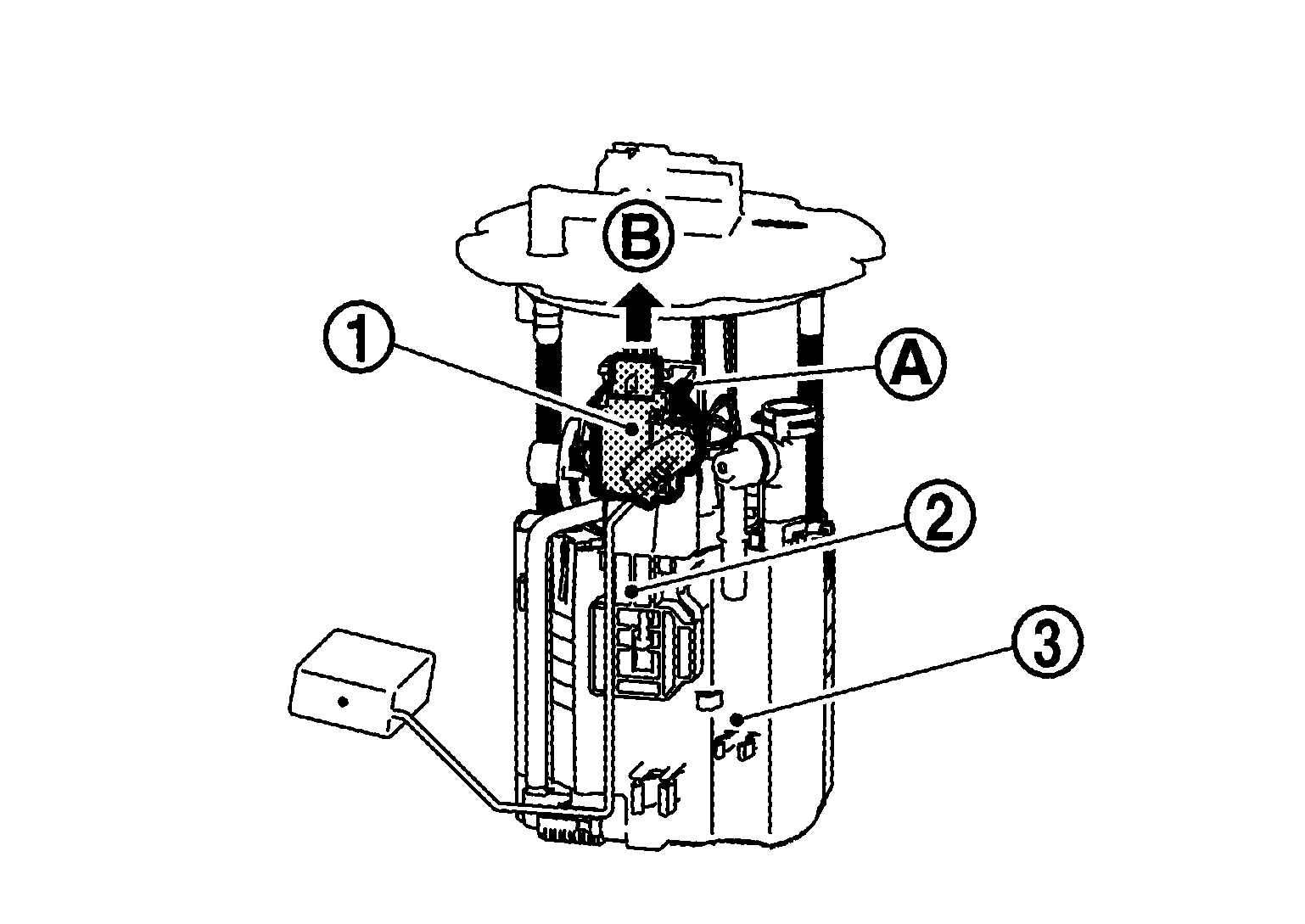

2. Remove main fuel level sensor unit from adapter as follows:

   Courtesy of NISSAN NORTH AMERICA, INC.

   : Fuel filter and fuel pump assembly

   1. Push in tab to release the lock.
   2. After fixing tabs are disengaged, slide main fuel level sensor unit out in direction shown by the arrow .
      CAUTION:

      • Be careful not to damage the main fuel level sensor unit.
      • Never disassemble fuel filter and fuel pump assembly.
3. Remove adapter from the fuel filter and fuel pump assembly in the same procedure used in removing main fuel level sensor unit if necessary.
