Exploded View

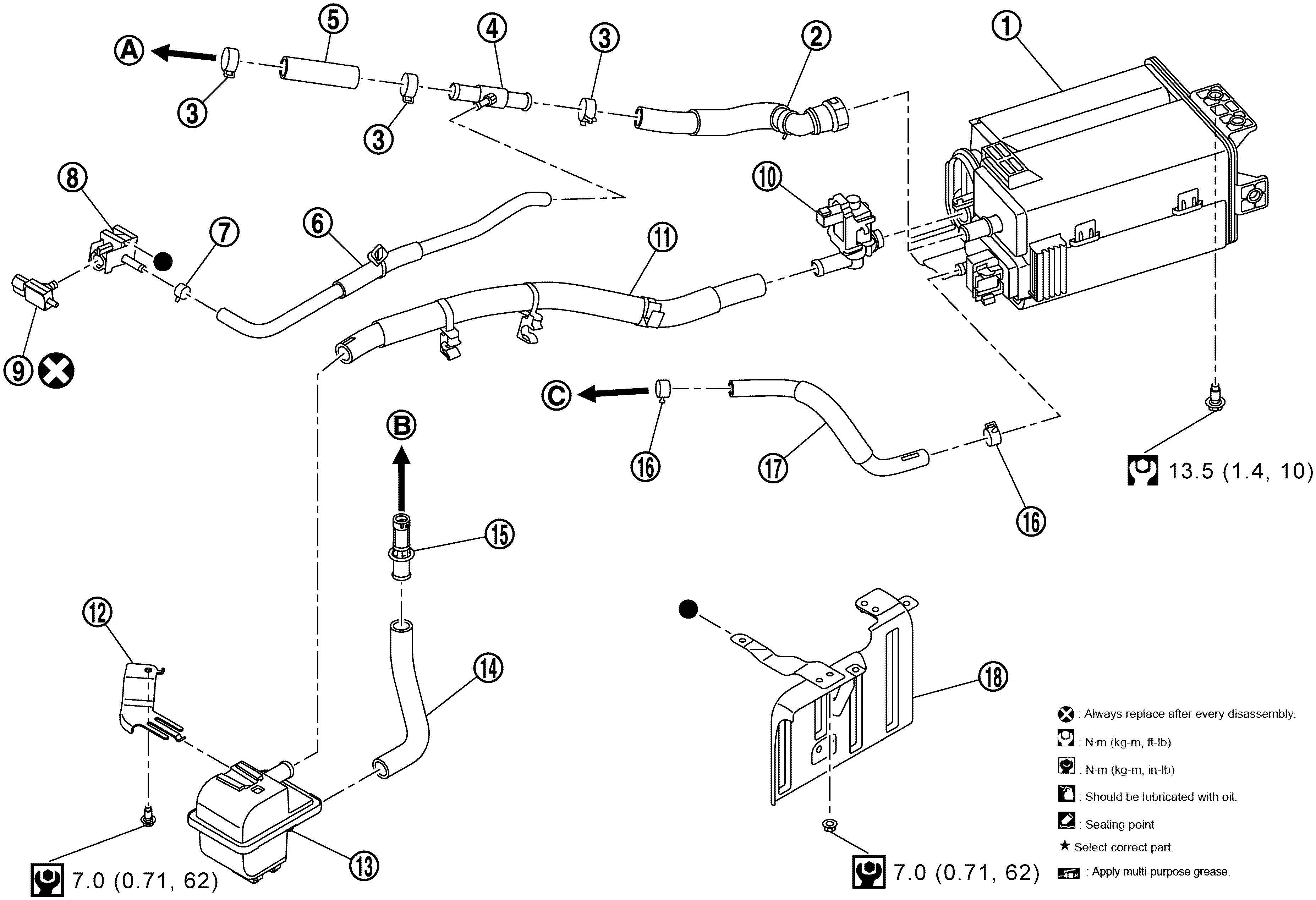

Fig 1: Evap Canister With Torque Specifications

Courtesy of NISSAN NORTH AMERICA, INC.

EVAP Canister	Vent Hose Assembly	Clip
3-Way Connector	Vent Hose	EVAP Hose
Clip	Connector	Fuel Tank Pressure Sensor
EVAP Canister Vent Control Valve	Vent Hose	Bracket
Canister Filter	Vent Hose	Connector
Clip	Purge Hose	Insulator
To Fuel Tank	To Floor Panel	To EVAP Canister Purge Volume Control Solenoid Valve
: N•m (kg-m, ft-lb)
: N•m (kg-m, in-lb)
: Always replace after every disassembly.
