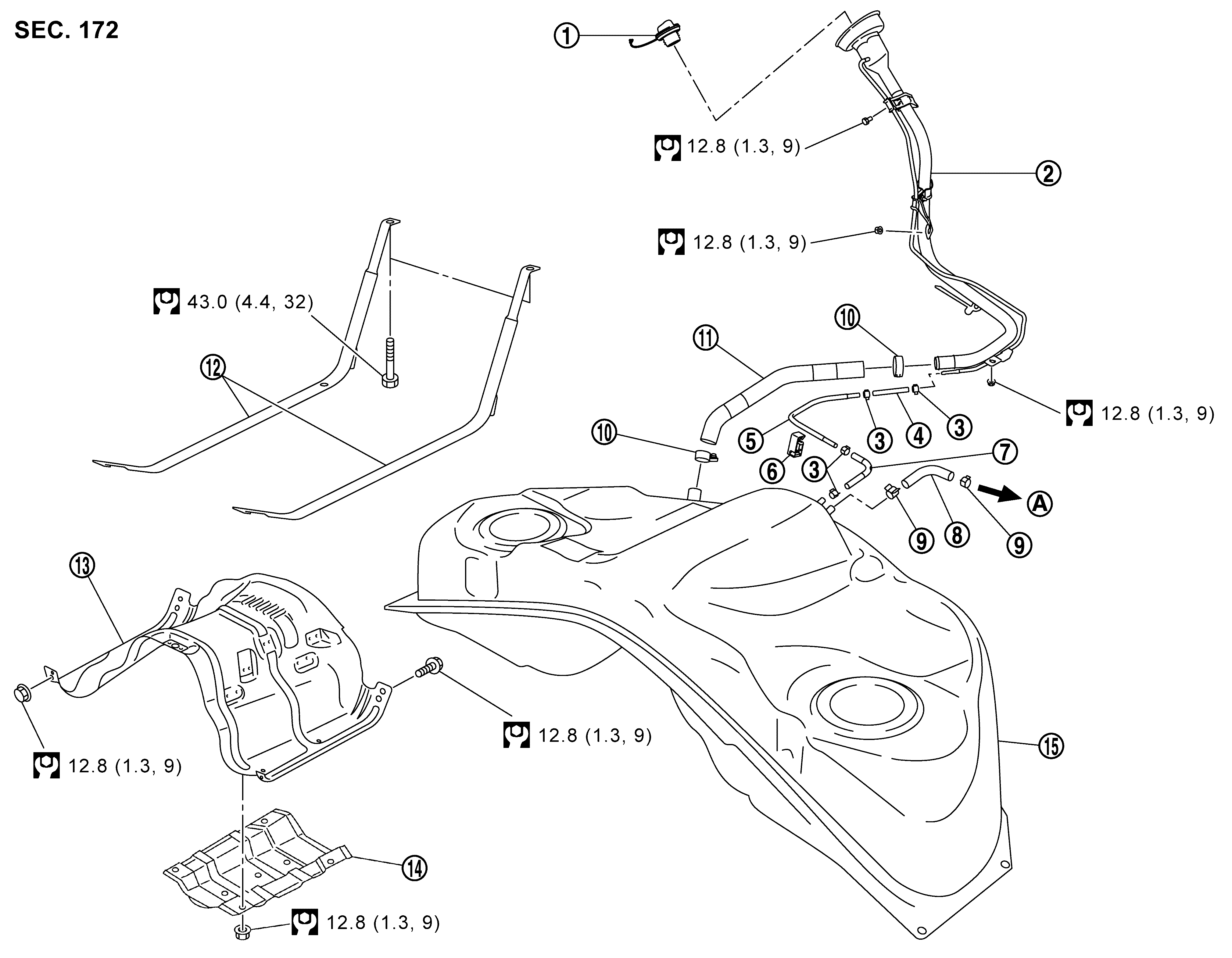

Exploded View
Courtesy of NISSAN NORTH AMERICA, INC.
 |
Fuel Filler Cap |
 |
Fuel Filler Tube |
 |
Clamp |
 |
Vent Hose |
 |
Vent Tube |
 |
Clip |
 |
Vent Hose |
 |
EVAP Hose |
 |
Clamp |
 |
Clamp |
 |
Fuel Filler Hose |
 |
Fuel Tank Mounting Band |
 |
Fuel Tank Protector |
 |
Insulator |
 |
Fuel Tank |
 |
To EVAP Tube |
|
|
|
|
 |
: N•m (kg-m, ft-lb) |
