Section 6 (Engine Control System (Introduction) (VR30DDTT))
›
System Description
›
System
›
Engine Control System
›
Circuit Diagram (Turbo Low Pressure Model)

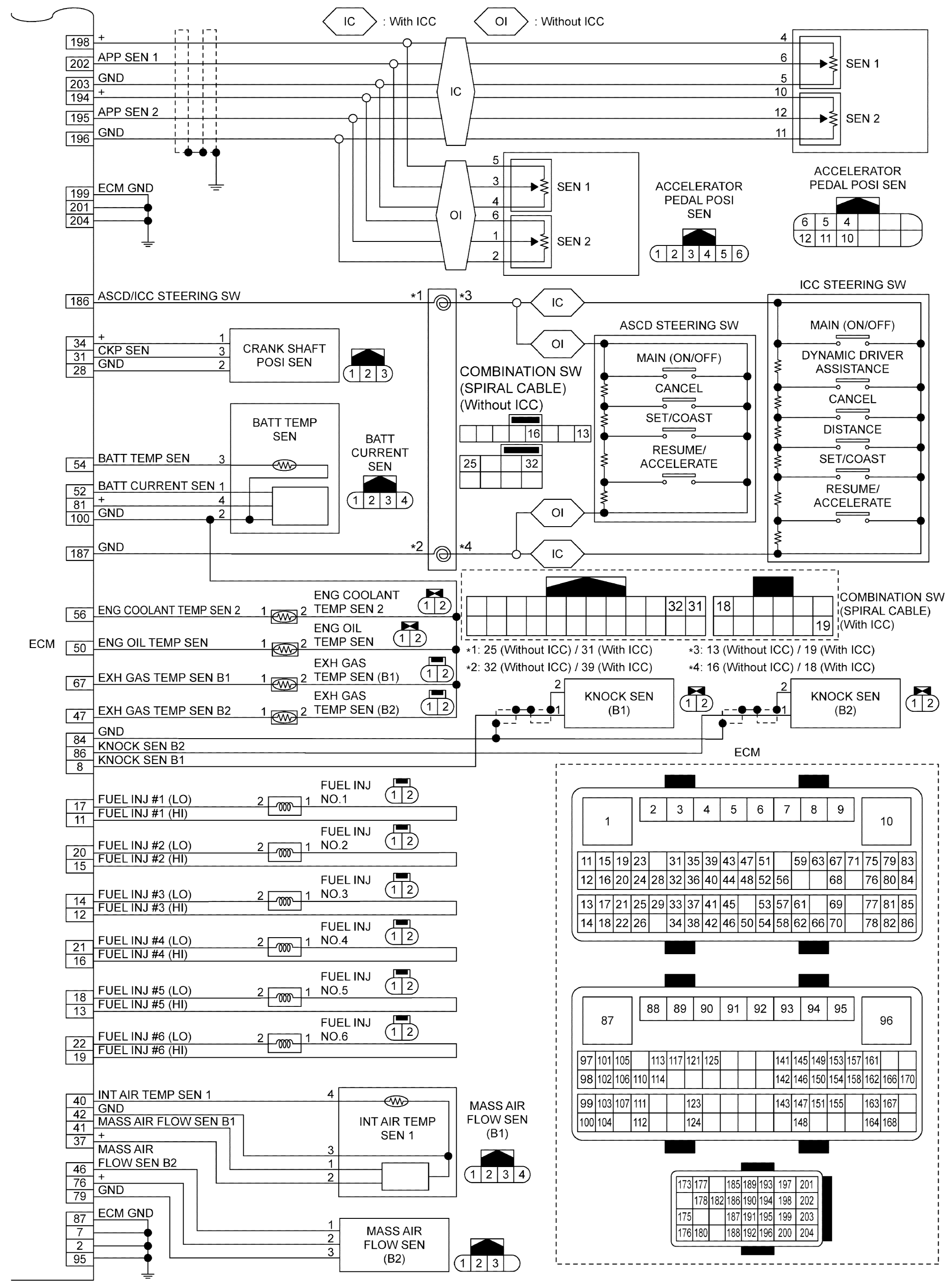

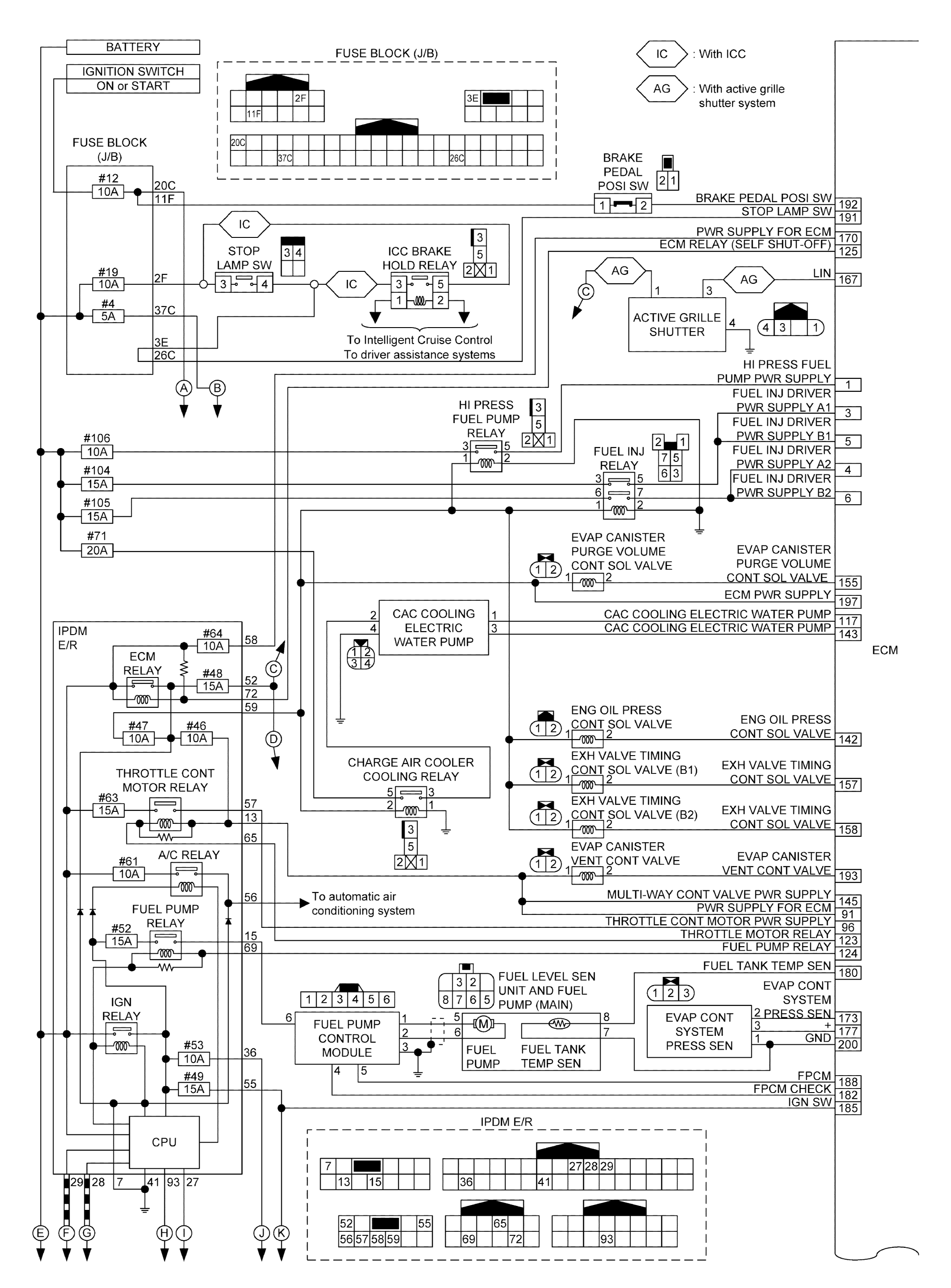

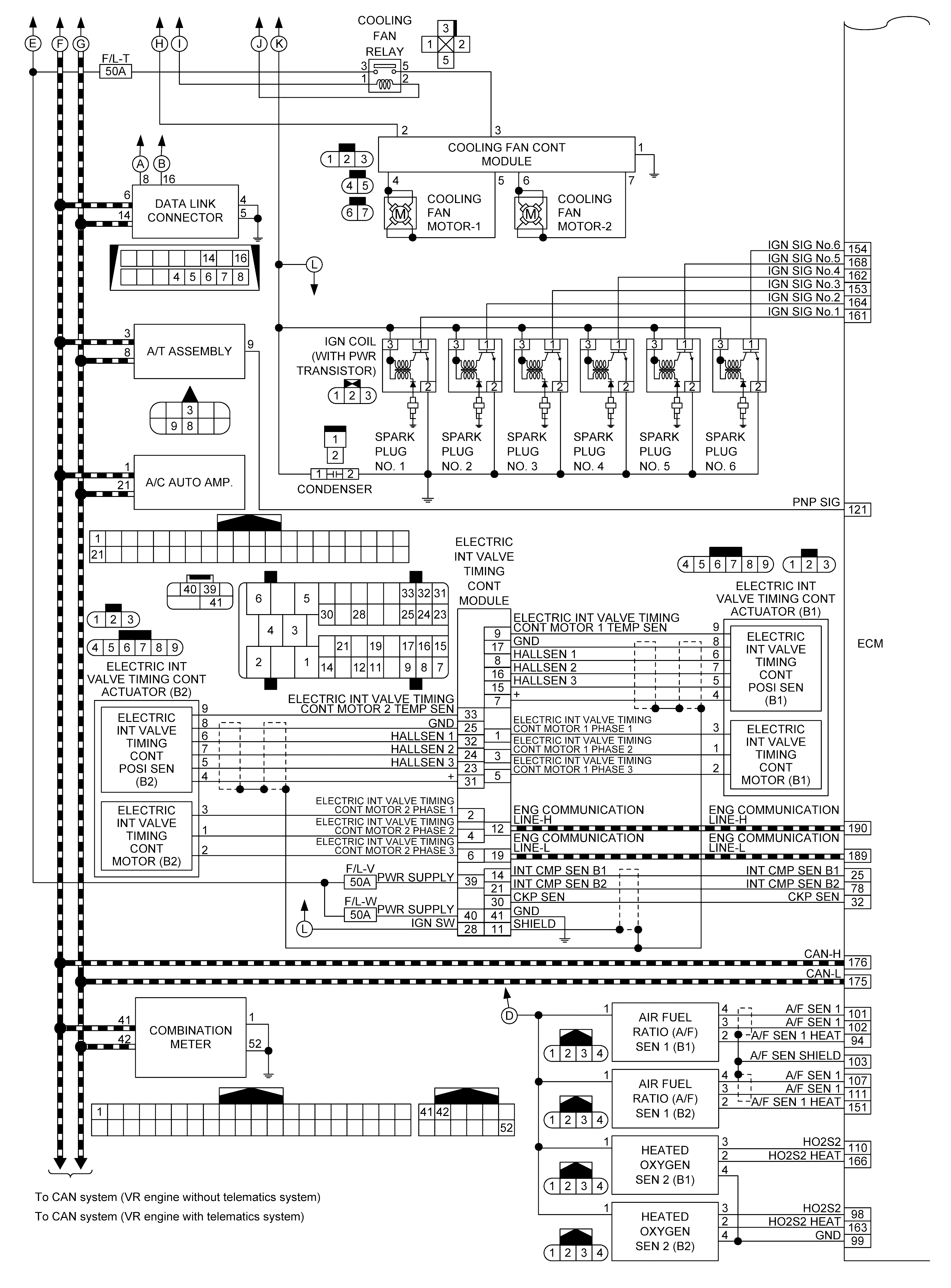

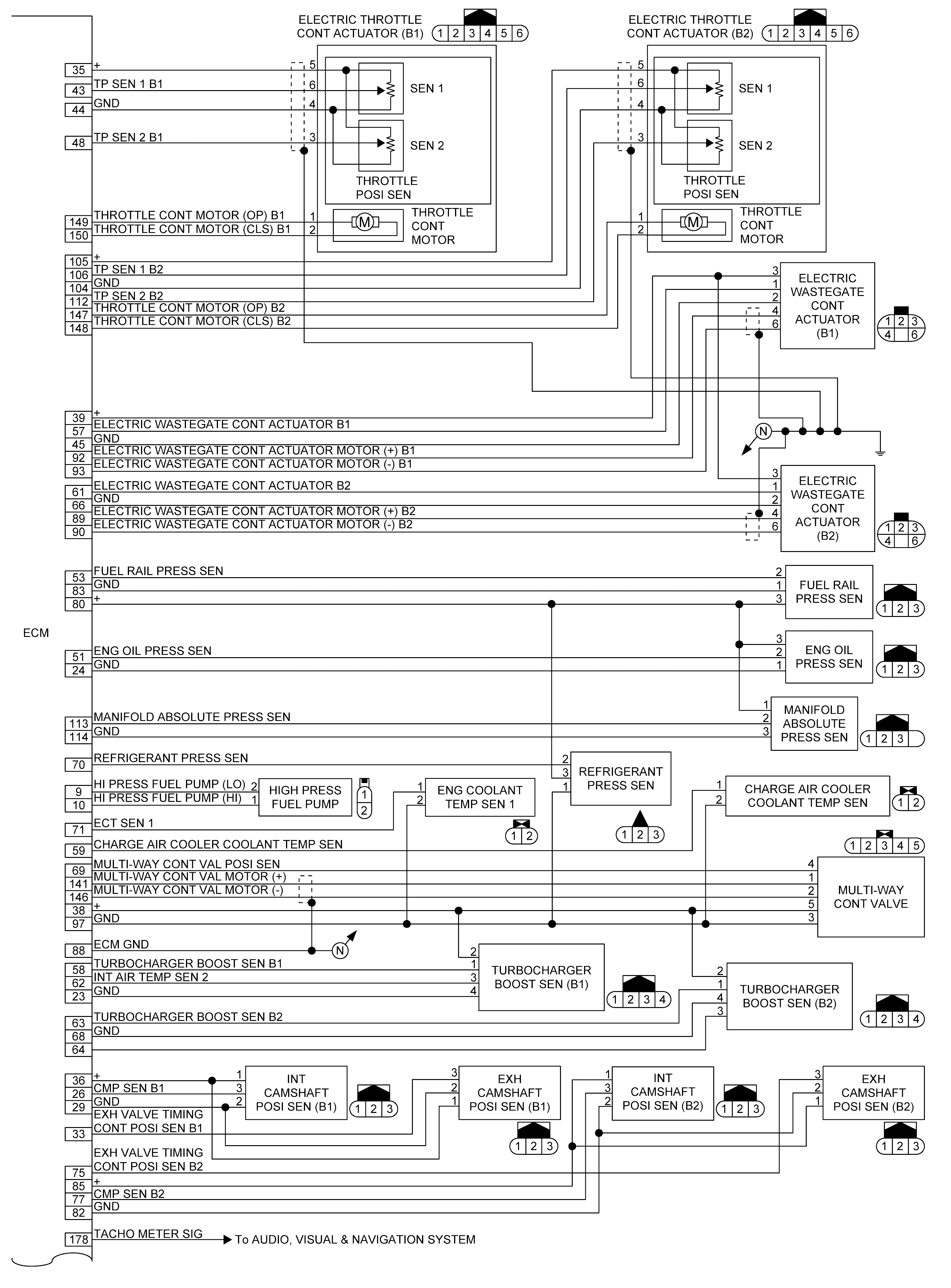

Circuit Diagram (Turbo Low Pressure Model)
WARNING:
This page is about a different variant/trim than selected.
Courtesy of NISSAN NORTH AMERICA, INC.
Courtesy of NISSAN NORTH AMERICA, INC.
Courtesy of NISSAN NORTH AMERICA, INC.
Courtesy of NISSAN NORTH AMERICA, INC.
