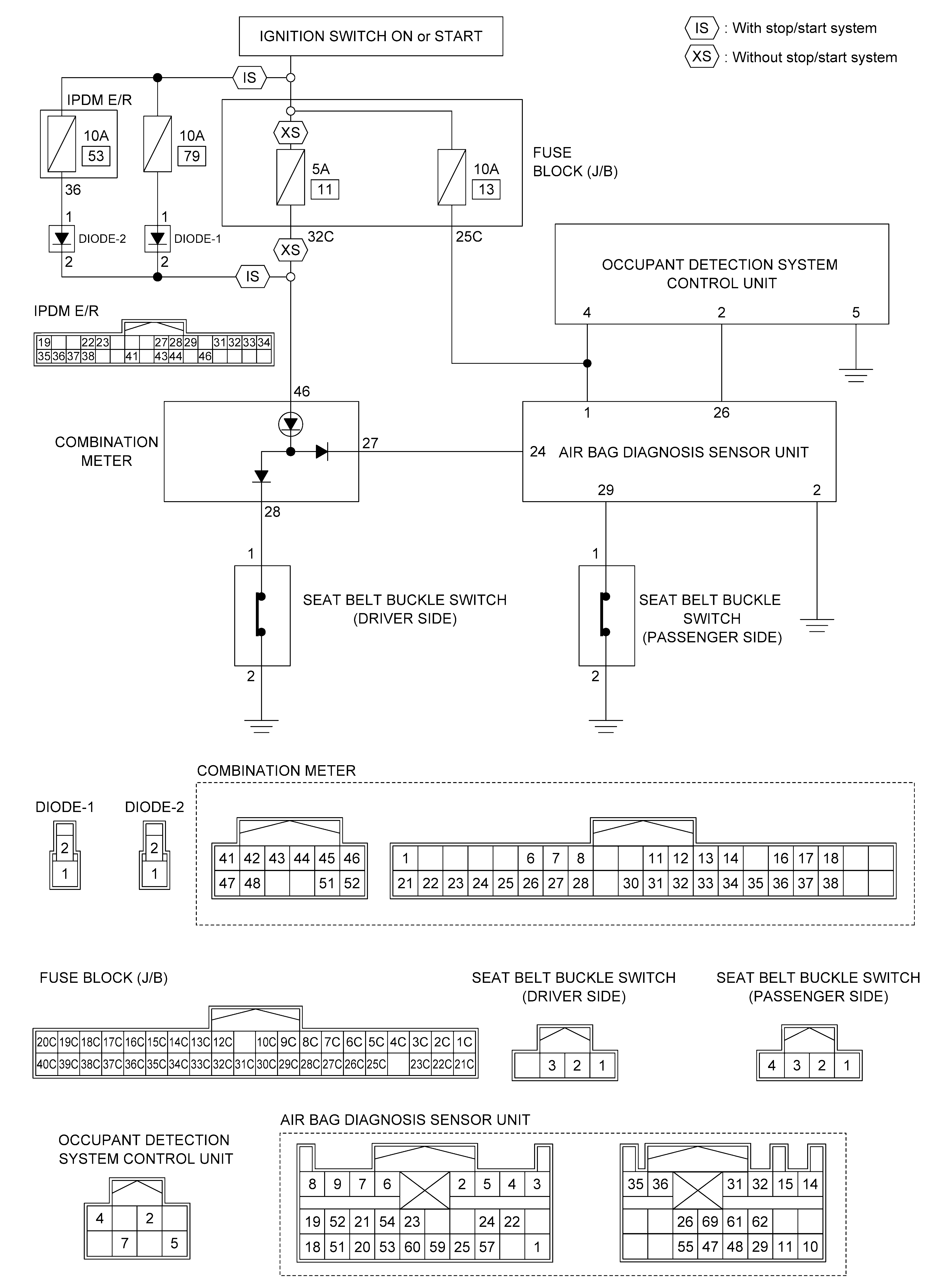

Home › Infiniti › 2017 › Q60 Base, AWD › Repair and Diagnosis › Restraints › Restraints Control Systems › Seat Belt Control System › System Description › System › Seat Belt Warning Lamp System › Circuit Diagram
