DAST Calibration (Mode 2): Description

"DAST CALIBRATION (MODE2) " is a function to calculate an off-center of the steering rack after adjust toe-in without using the alignment tester.

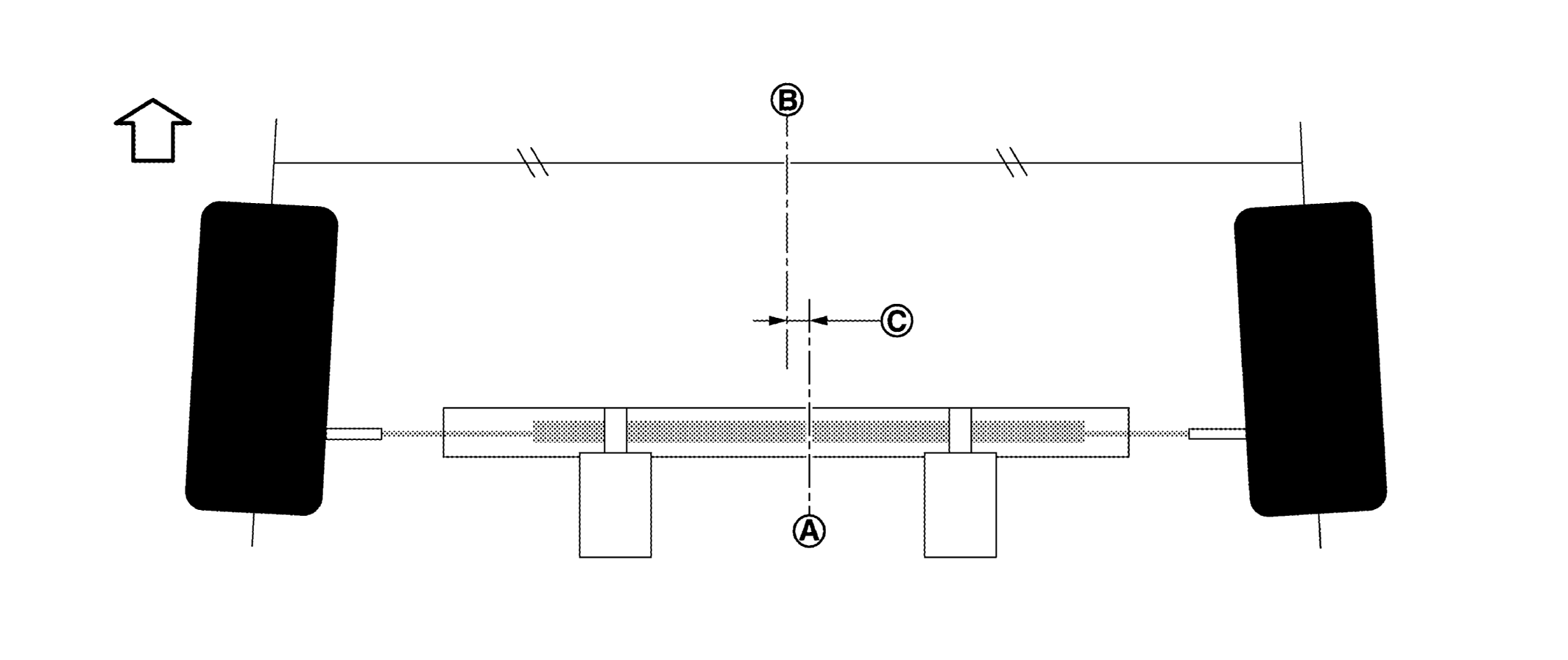

Off-center is calculated by the difference between a neutral position of the vehicle's alignment and the neutral position of the steering rack . Refer to WORK PROCEDURE .

Courtesy of NISSAN NORTH AMERICA, INC.

: Vehicle front
