Dynamic Digital Suspension

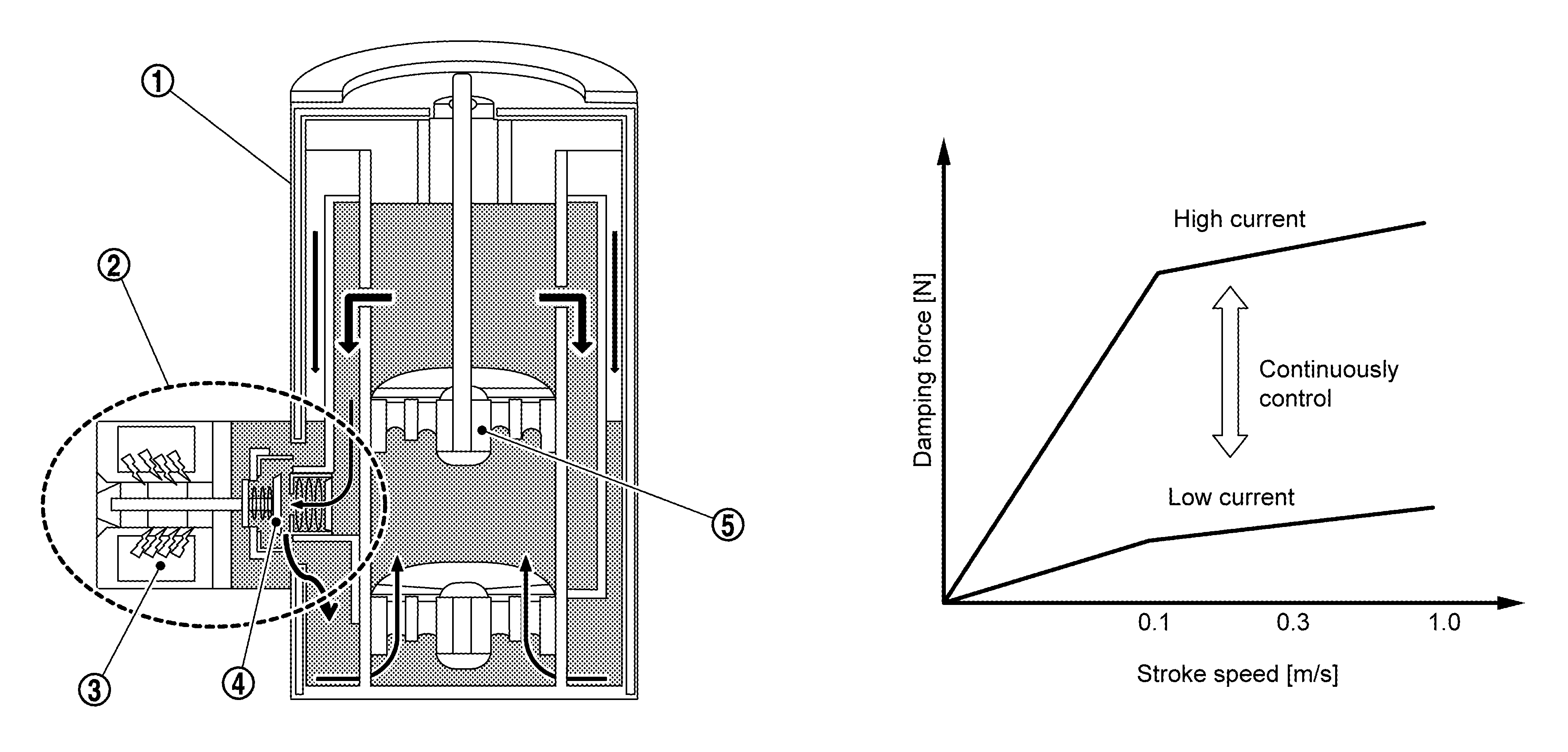

- Shock absorber actuator is integrated into the dynamic digital suspension on 4 wheels.
- Proportional solenoid valve that is able to operate in high speed is used for shock absorber actuator.
- Shock absorber actuator opens/closes the control valve by moving the solenoid core with the control current from chassis control module to regulate the damping force.
| Dynamic digital suspension | Shock absorber actuator | Solenoid core | |||
| Control valve | Piston | ||||
| Oil flow |
