Without Digital Motion Control

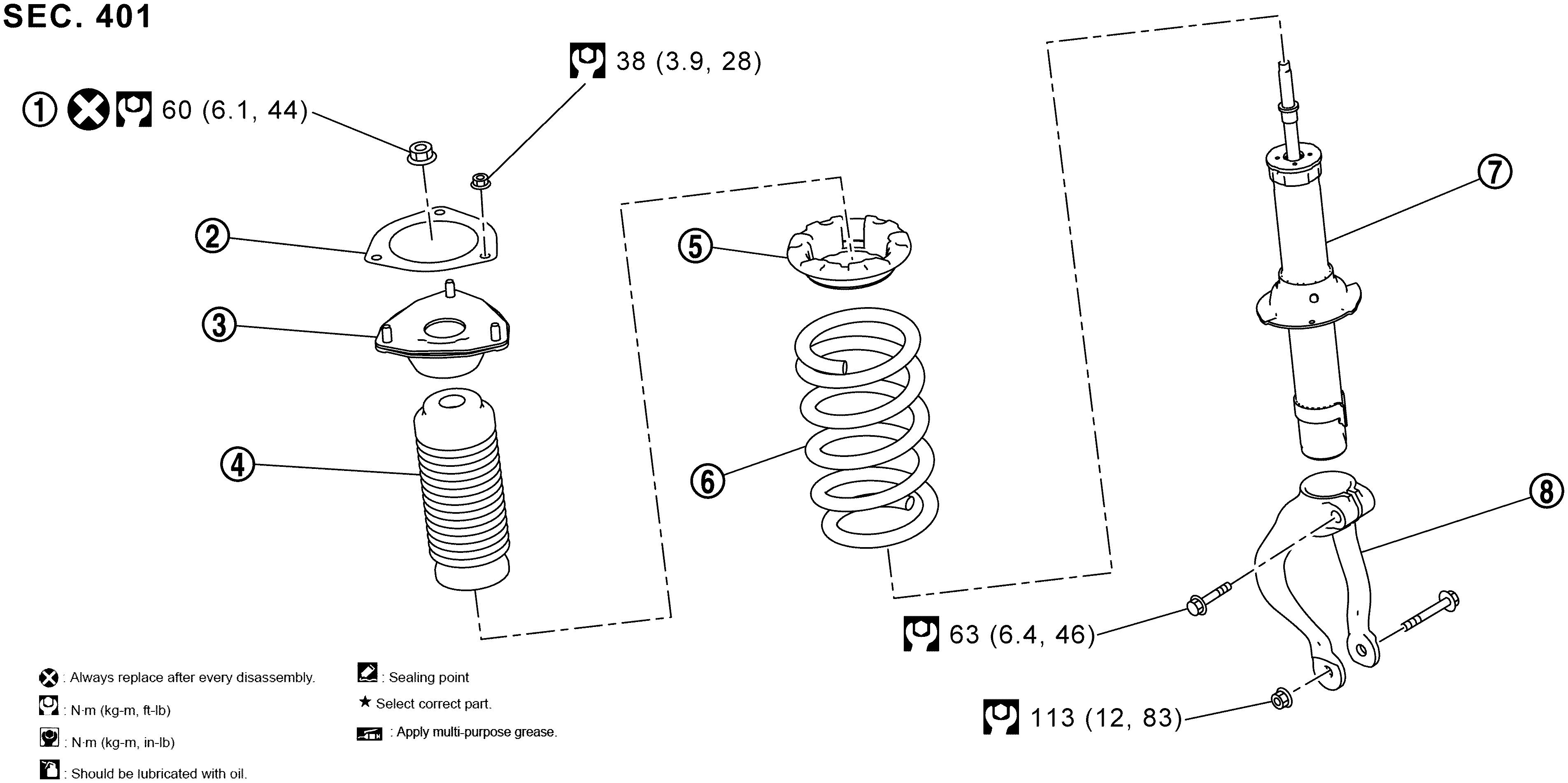

Fig 1: Front Coil Spring And Shock Absorber W/O Digital Motion Control With Torque Specifications

Courtesy of NISSAN NORTH AMERICA, INC.

Piston Rod Lock Nut	Mounting Seal	Shock Absorber Mounting Bracket
Bound Bumper	Rubber Seat	Coil Spring
Shock Absorber	Shock Absorber Arm
: N•m (kg-m, ft-lb)
: Always replace after every disassembly.
