Exploded View

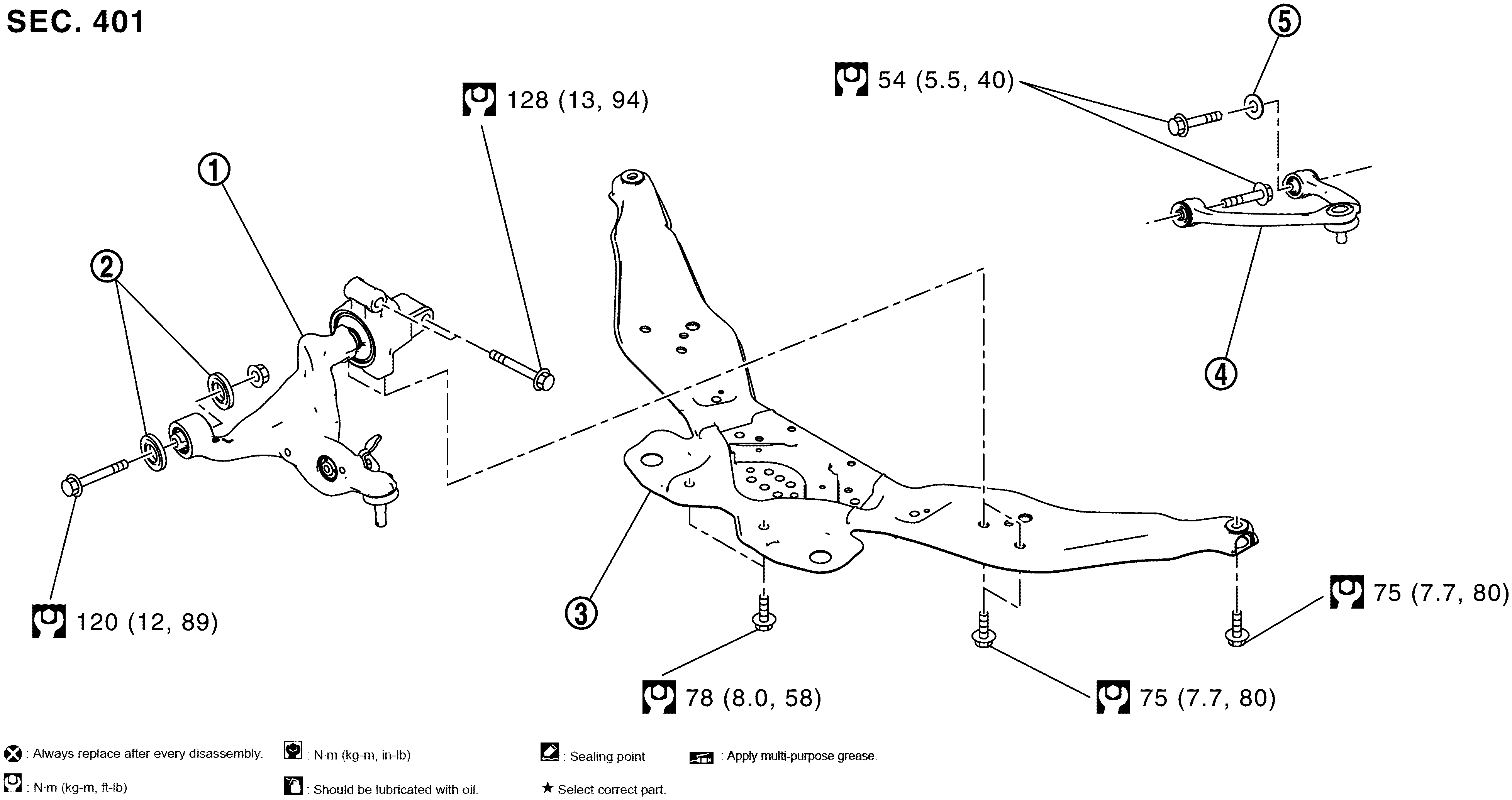

Fig 1: Transverse Link With Torque Specifications

Courtesy of NISSAN NORTH AMERICA, INC.

Transverse Link	Stopper Bushing	Front Cross Bar
Upper Link	Stopper Arm Bushing
: N•m (kg-m, ft-lb)
: Always replace after every disassembly.
