Exploded View

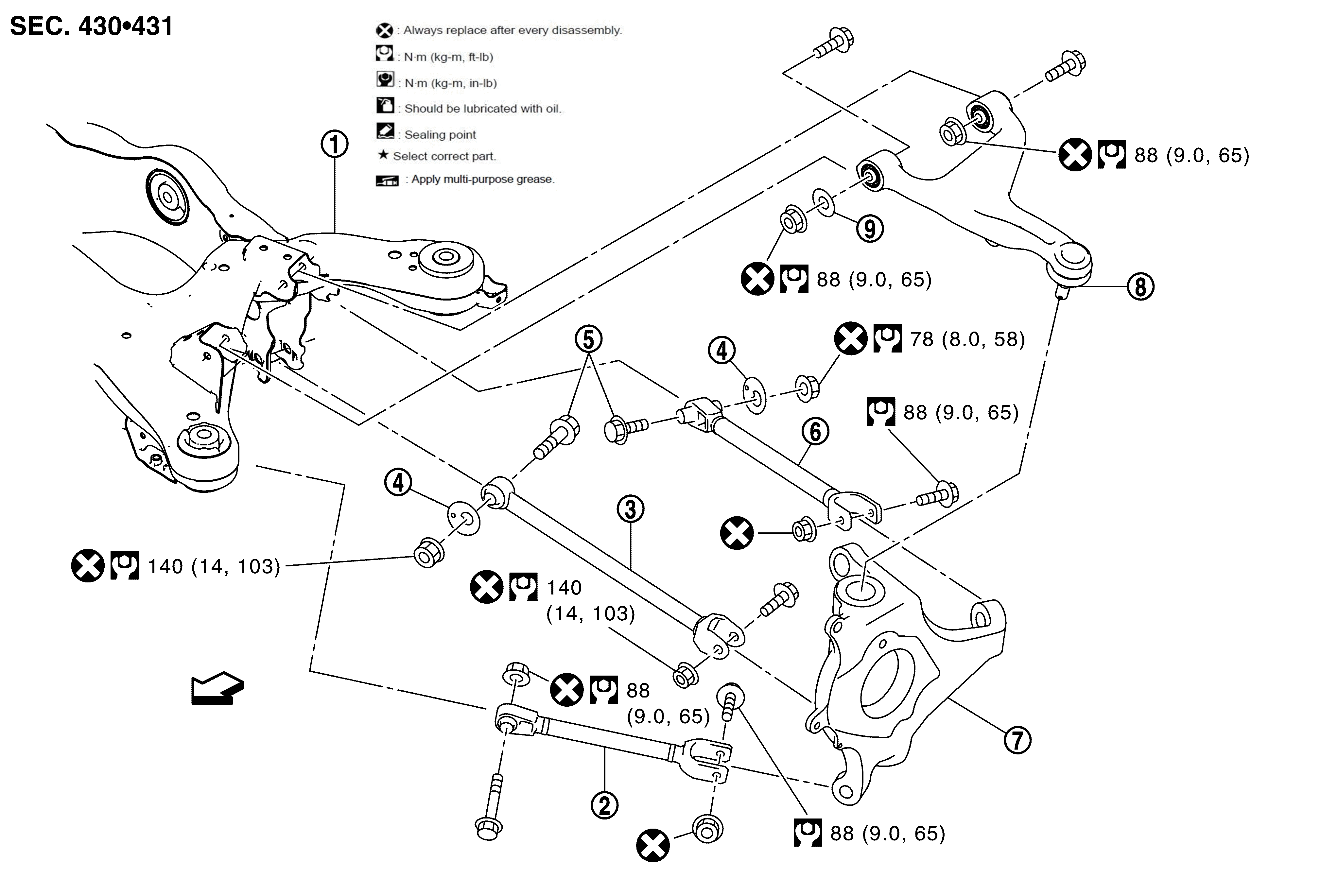

Fig 1: Front Lower Link With Torque Specifications

Courtesy of NISSAN NORTH AMERICA, INC.

	Rear Suspension Member	Front Lower Link	Rear Lower Link
	Eccentric Disk	Adjusting Bolt	Toe Control Link
	Axle Housing	Suspension Arm	Stopper Bushing
: Vehicle front
	: N•m (kg-m, ft-lb)
	: Always replace after every disassembly.
