With Digital Motion Control

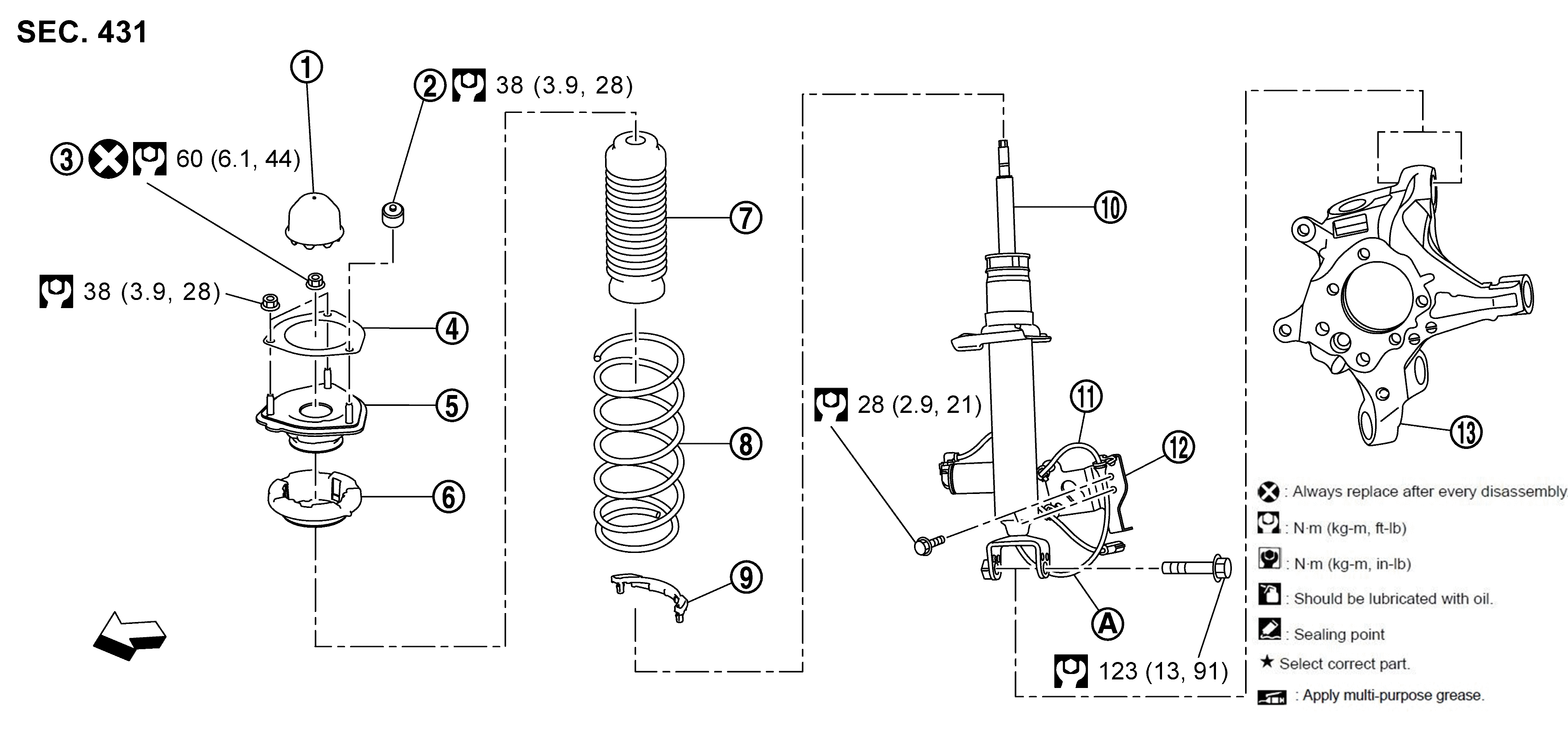

Fig 1: Rear Coil Spring And Shock Absorber W/Digital Motion Control With Torque Specifications

Courtesy of NISSAN NORTH AMERICA, INC.

	Cap	Damper Mass Nut (Left Side)	Piston Rod Lock Nut
	Gasket	Mounting Insulator	Rubber Seat
	Bound Bumper	Coil Spring	Spring Lower Pad (Right Side)
	Dynamic Digital Suspension	Dynamic Digital Suspension Harness	Dynamic Digital Suspension Bracket
	Axle Housing
	Identification Line
: Vehicle front
	: N•m (kg-m, ft-lb)
	: Always replace after every disassembly.
