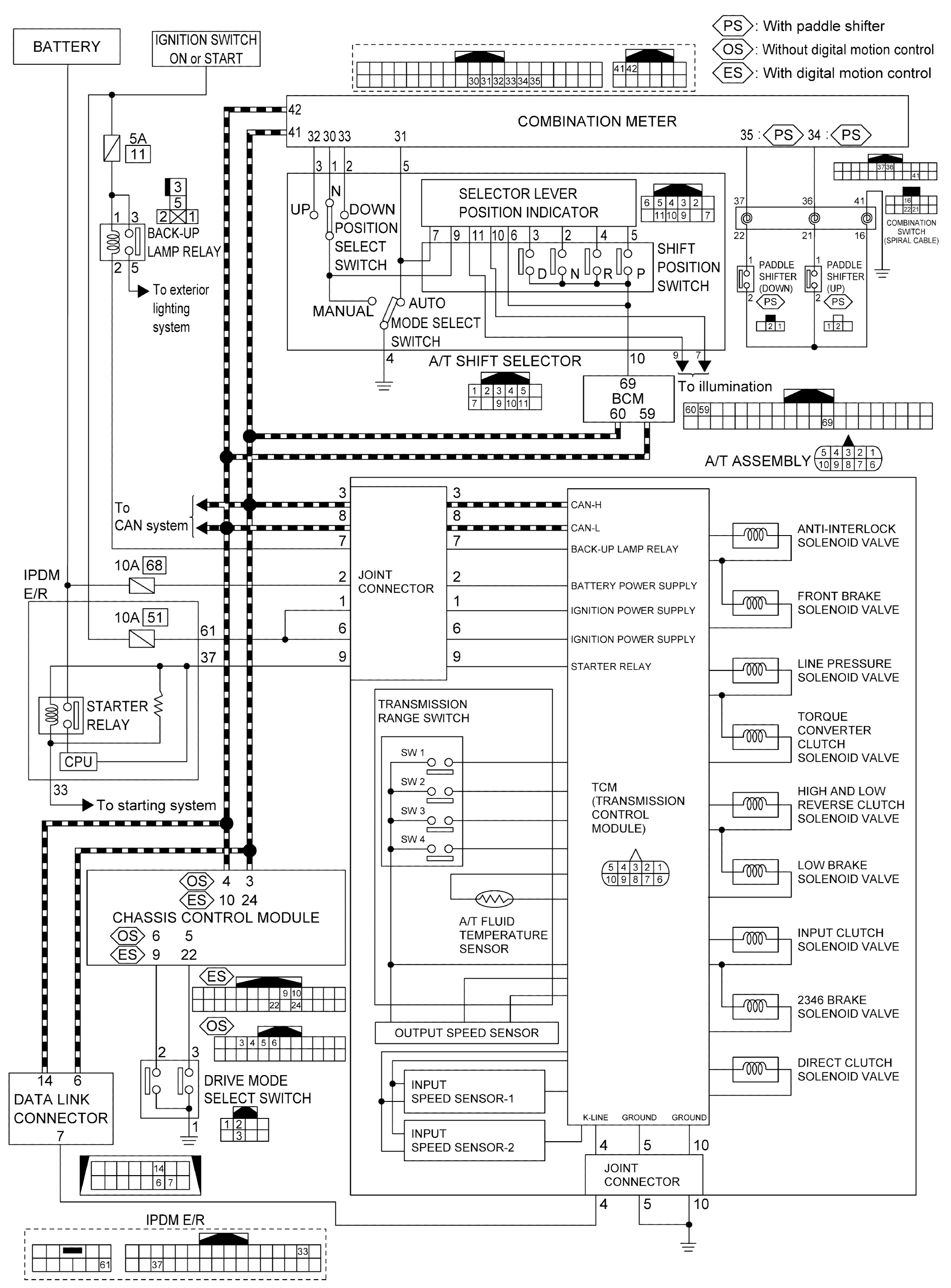

Home › Infiniti › 2017 › Q60 Base, AWD › Repair and Diagnosis › Transmission › Automatic Trans › Automatic Transmission (Introduction, Wiring Diagrams And Basic Inspection) › System Description › System › A/T Control System › Circuit Diagram › VR30DDTT Engine
