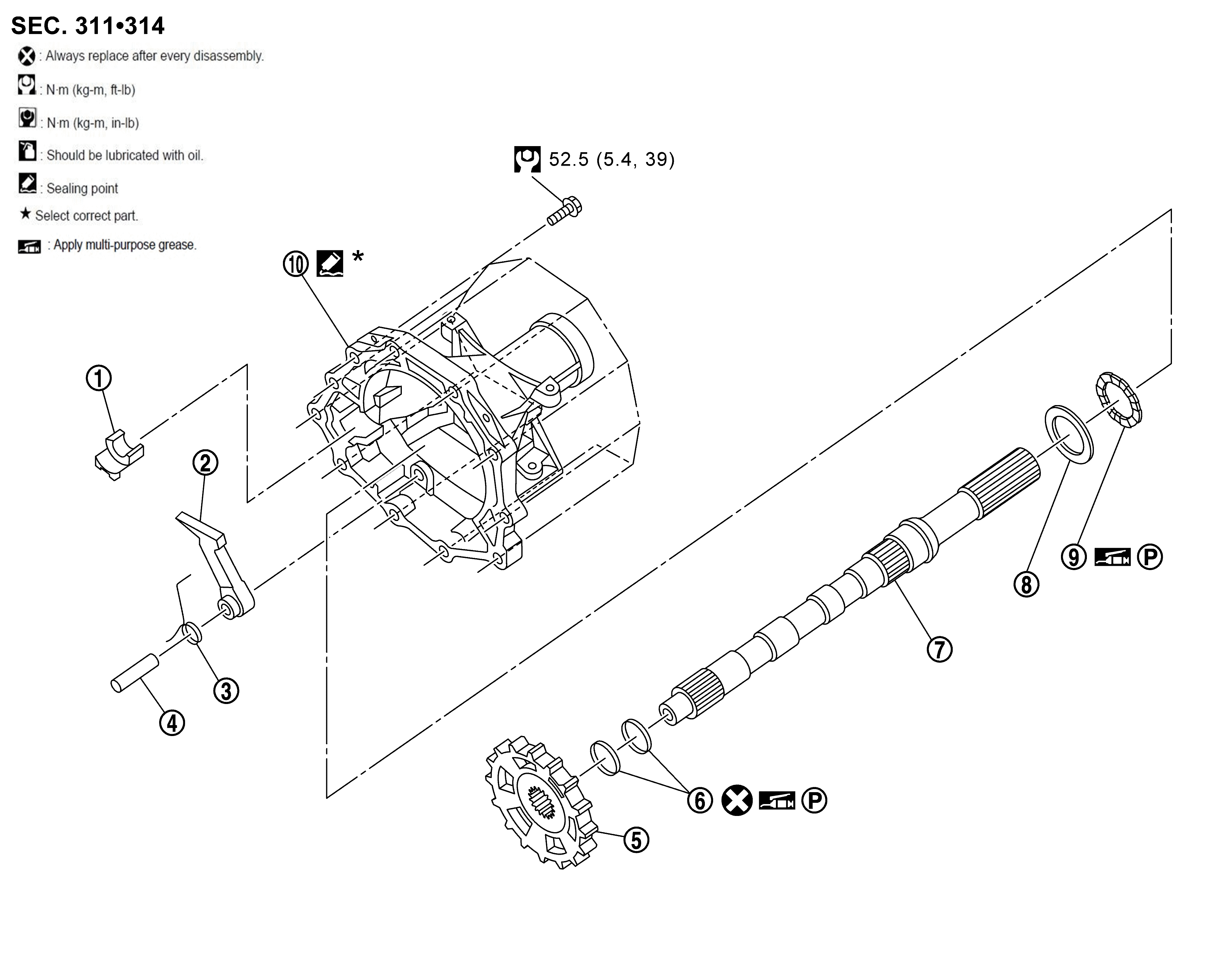

Exploded View With Torque Specifications

Courtesy of NISSAN NORTH AMERICA, INC.

	Parking Actuator Support		Parking Pawl		Return Spring
	Pawl Shaft		Parking Gear		Seal Ring
	Output Shaft		Bearing Race		Needle Bearing
	Rear Extension
	: Always replace after every disassembly.
	: N•m (kg-m, ft-lb)
: Apply petroleum jelly
*: Apply Genuine Anaerobic Liquid Gasket or equivalent. Refer to RECOMMENDED CHEMICAL PRODUCTS AND SEALANTS .
