Exploded View With Torque Specifications

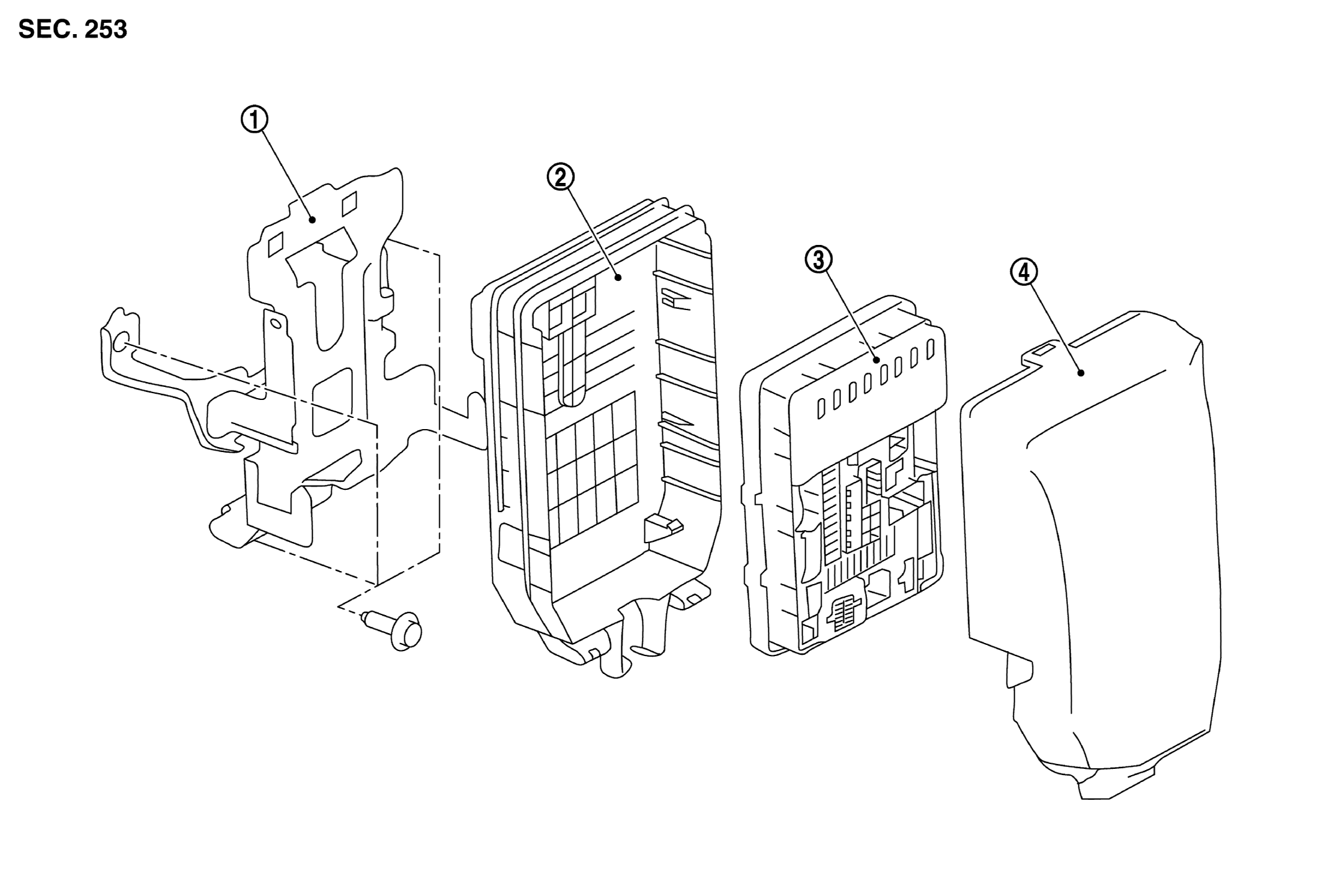

GNSJMMIA1431ZZ-431Courtesy of NISSAN NORTH AMERICA, INC.
WHITE-1 Bracket WHITE-2 IPDM E/R Cover B WHITE-3 IPDM E/R
WHITE-4 IPDM E/R Cover A
