Exploded View

WARNING: This page is about a different variant/trim than selected.

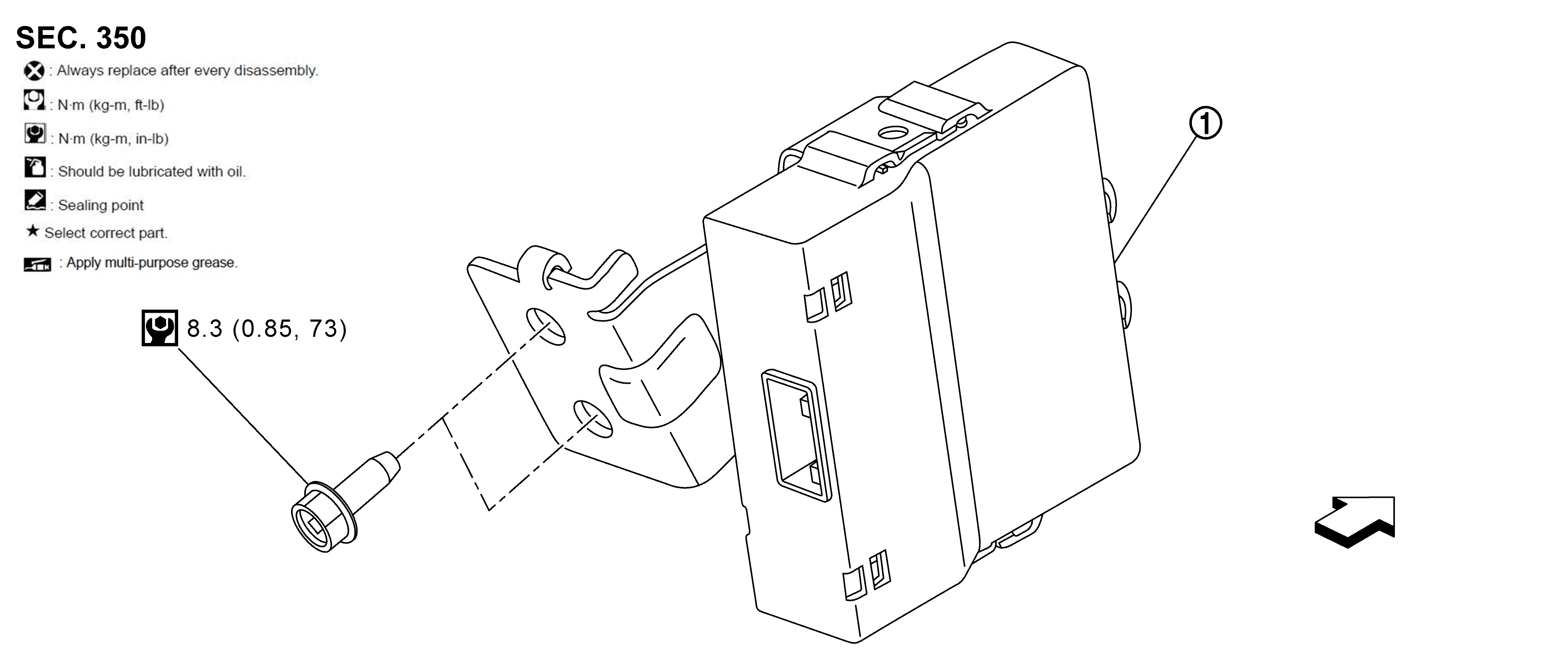

GNSJSDIB0180GB-180Courtesy of NISSAN NORTH AMERICA, INC.
WHITE-1 AWD control unit
ARROW : Vehicle front
BOLTIN : N•m (kg - m, in - lb)
