Transfer Fluid Temperature Sensor

WARNING: This page is about a different variant/trim than selected.

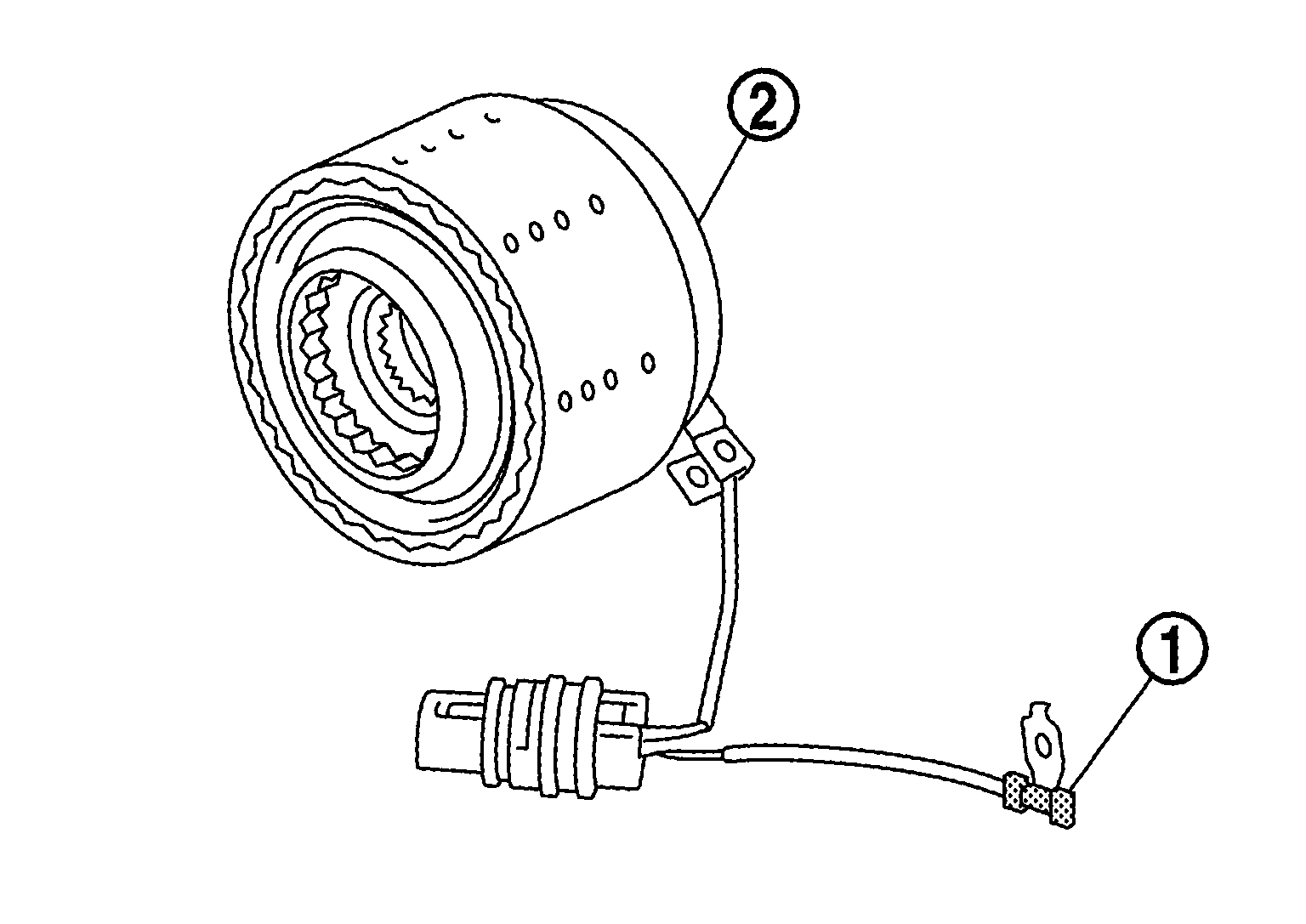

Transfer fluid temperature sensor is integrated with electric controlled coupling .

Courtesy of NISSAN NORTH AMERICA, INC.
Transfer fluid temperature sensor detects the transfer fluid temperature and transmits a signal to AWD control unit.

Courtesy of NISSAN NORTH AMERICA, INC.
The electrical resistance of the sensor decreases as temperature increases.

Courtesy of NISSAN NORTH AMERICA, INC.
