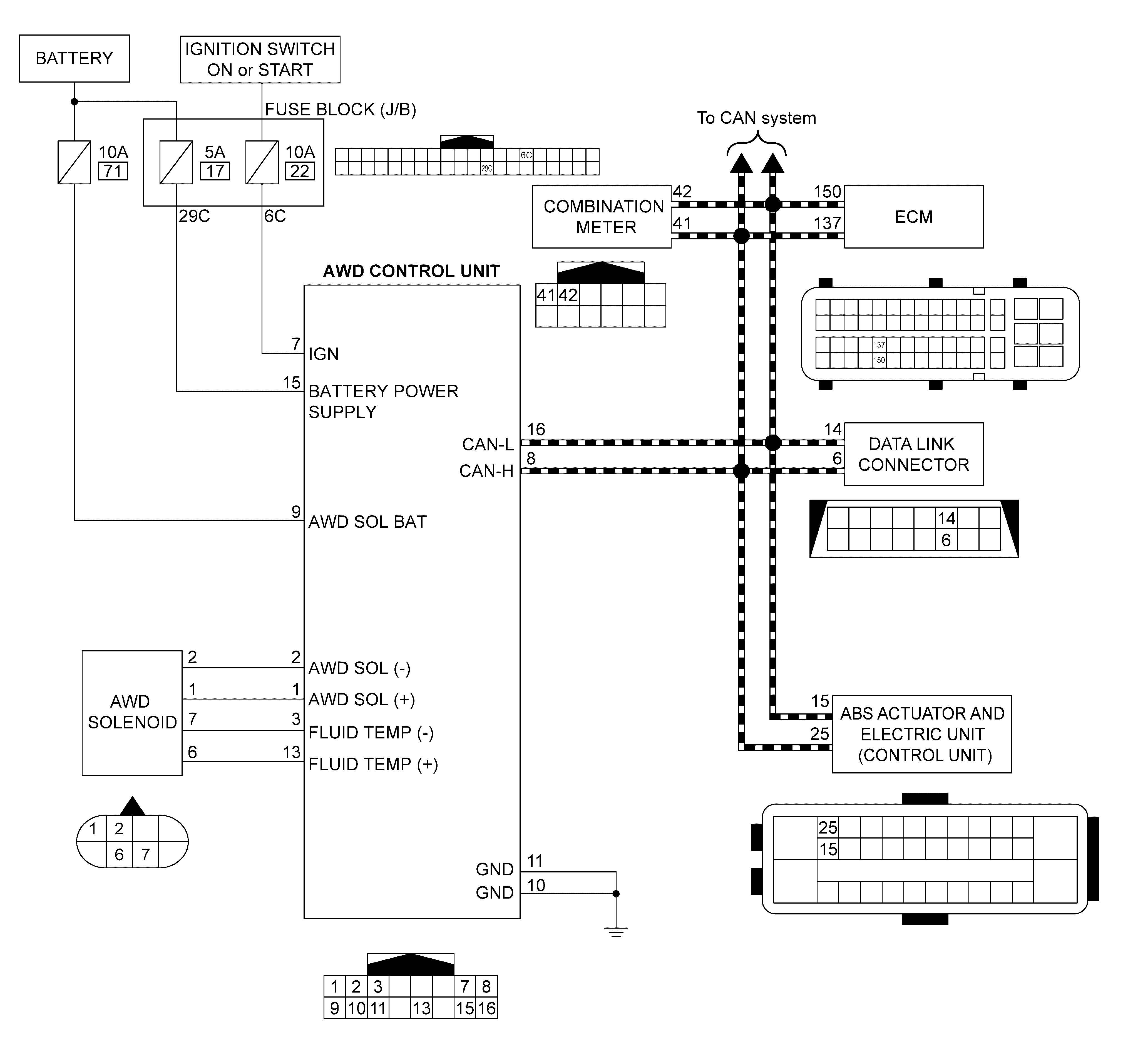

2.0L Turbo Gasoline Engine

WARNING: This page is about a different variant/trim than selected.
GNSJSDIB0191GB-191Courtesy of NISSAN NORTH AMERICA, INC.
