Component Location

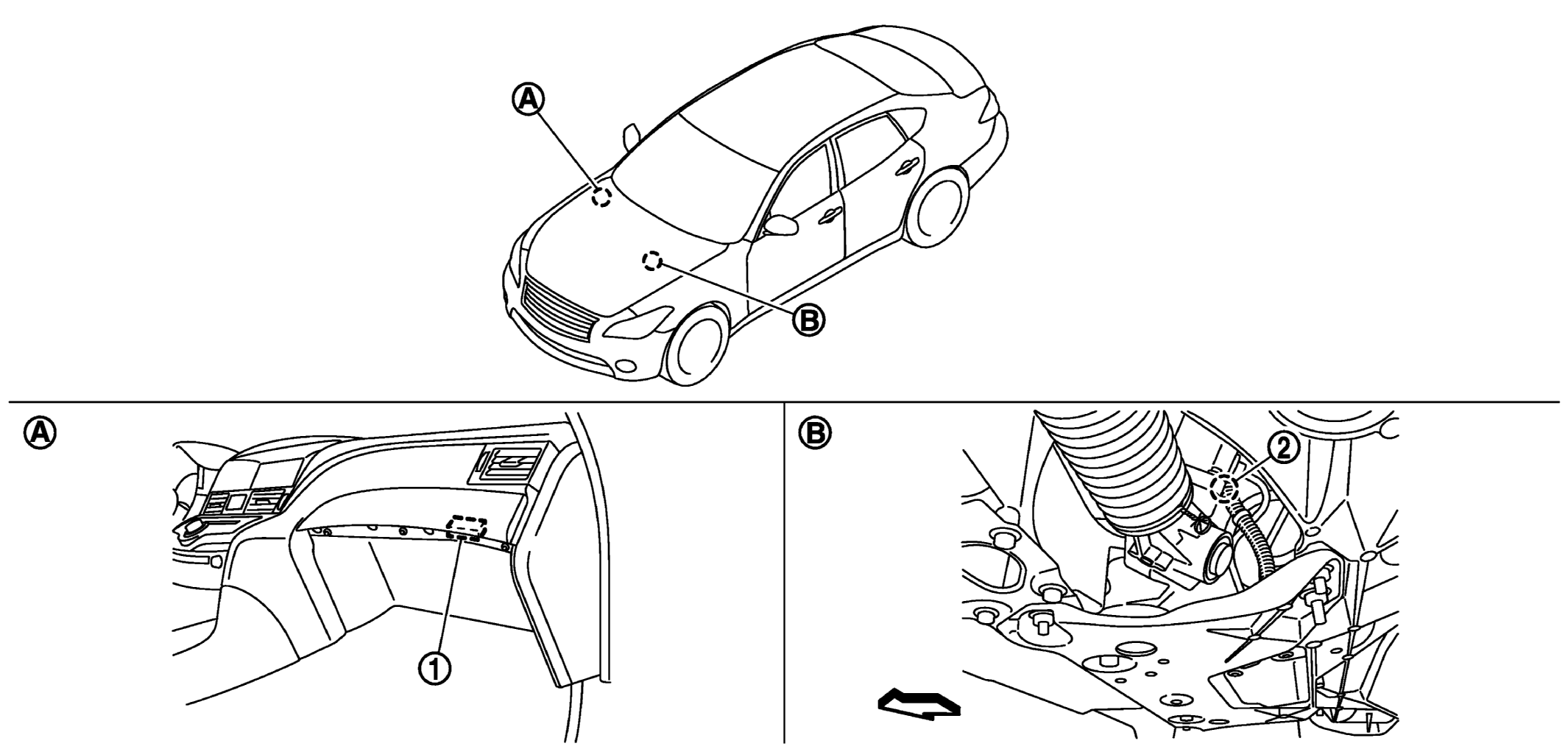

GNSJPGIB0008ZZ-008Courtesy of NISSAN NORTH AMERICA, INC.
1. Power steering control unit 2. Power steering solenoid valve
A. Glove box assembly removed B. Steering gear assembly
ARROW : Vehicle front
