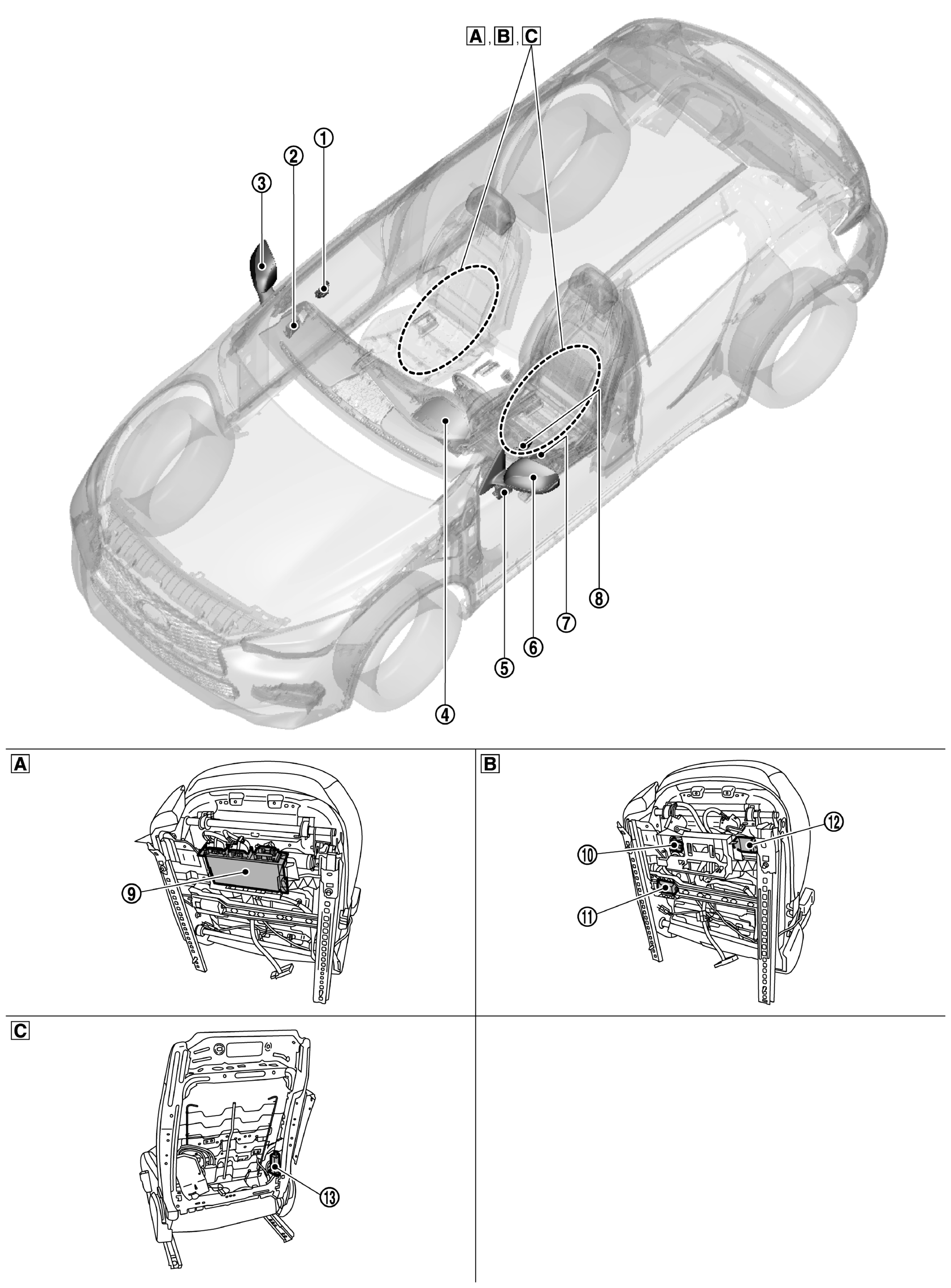

Right front seat adjustment switch group |
Refer to FRONT SEAT ADJUSTMENT SWITCH GROUP . |
 |
Right front door control unit |
Transmits each seat switch signal to seat control unit via CAN communication.
Refer to COMPONENT LOCATION
for detailed installation location. |
 |
Door mirror (passenger side) |
Door mirror motor |
It makes mirror face operate from side to side and up and down with the electric power that front door control unit supplies. |
| Mirror sensor |
- Mirror sensor is installed to door mirror.
- The resistance of 2 sensors (horizontal and vertical) is changed when door mirror is operated.
- Front door control unit calculates door mirror position according to the change of the voltage of 2 sensor input terminals.
|
 |
Combination meter |
When combination meter receives buzzer signal from seat control unit via CAN communication, it sounds the buzzer integrated in the combination meter. |
 |
Left front door control unit |
Transmits each seat switch signal to seat control unit via CAN communication.
Refer to COMPONENT LOCATION
for detailed installation location. |
 |
Door mirror (driver side) |
Door mirror motor |
It makes mirror face operate from side to side and up and down with the electric power that front door control unit supplies. |
| Mirror sensor |
- Mirror sensor is installed to door mirror.
- The resistance of 2 sensors (horizontal and vertical) is changed when door mirror is operated.
- Front door control unit calculates door mirror position according to the change of the voltage of 2 sensor input terminals.
|
 |
Power window main switch
(door mirror remote control switch) |
Mirror switch |
- Mirror switch is integrated in power window main switch.
- It operates angle of door mirror face.
- It transmits mirror face adjust operation to front door control unit.
|
| Changeover switch |
- Changeover switch is integrated in power window main switch.
- Changeover switch has three positions (L, N and R).
- It changes operating door mirror motor by transmitting control signal to front door control unit.
|
 |
Left front seat adjustment switch group |
Refer to FRONT SEAT ADJUSTMENT SWITCH GROUP . |
 |
Seat control unit |
Refer to SEAT CONTROL UNIT . |
 |
Lifting motor (rear) |
Lifting motor (rear) |
- Lifting motor (rear) is installed to seat cushion frame.
- Lifting motor (rear) is activated with seat control unit.
- Lifting motor (rear) is moved upward/downward by changing the rotation direction of lifting motor (rear).
|
| Lifting sensor (rear) |
- Lifting sensor (rear) is installed to lifting motor (rear).
- The pulse signal is input to seat control unit when lifting (rear) is operated.
- Seat control unit counts the pulse and calculates the lifting (rear) amount of the seat.
|
 |
Sliding motor |
Sliding motor |
- Sliding motor is installed to the seat cushion frame.
- Sliding motor is activated with seat control unit.
- Slides the seat forward/backward by changing the rotation direction of sliding motor.
|
| Sliding sensor |
- Sliding sensor is integrated in sliding motor.
- The pulse signal is input to seat control unit when sliding is performed.
- Seat control unit counts the pulse and calculates the sliding amount of the seat.
|
 |
Lifting motor (front) |
Lifting motor (front) |
- Lifting motor (front) is installed to seat cushion frame.
- Lifting motor is activated with seat control unit.
- Lifting motor (front) is moved upward/downward by changing the rotation direction of lifting motor (front).
|
| Lifting sensor (front) |
- Lifting sensor (front) is installed in lifting motor (front).
- When lifting motor (front) operates, pulse signal is transmitted to seat control unit from lifting sensor.
- Seat control unit counts the pulse and calculates the lift position (front) of the seat.
|
 |
Reclining motor |
Reclining motor |
- Reclining motor is installed to seatback frame.
- Reclining motor is activated with seat control unit.
- Seatback is reclined forward/backward by changing the rotation direction of reclining motor.
|
| Reclining sensor |
- Reclining sensor is integrated in reclining motor.
- The pulse signal is input to seat control unit when the reclining is operated.
- Seat control unit counts the pulse and calculates the reclining amount of the seat.
|
