Removal And Installation: Removal

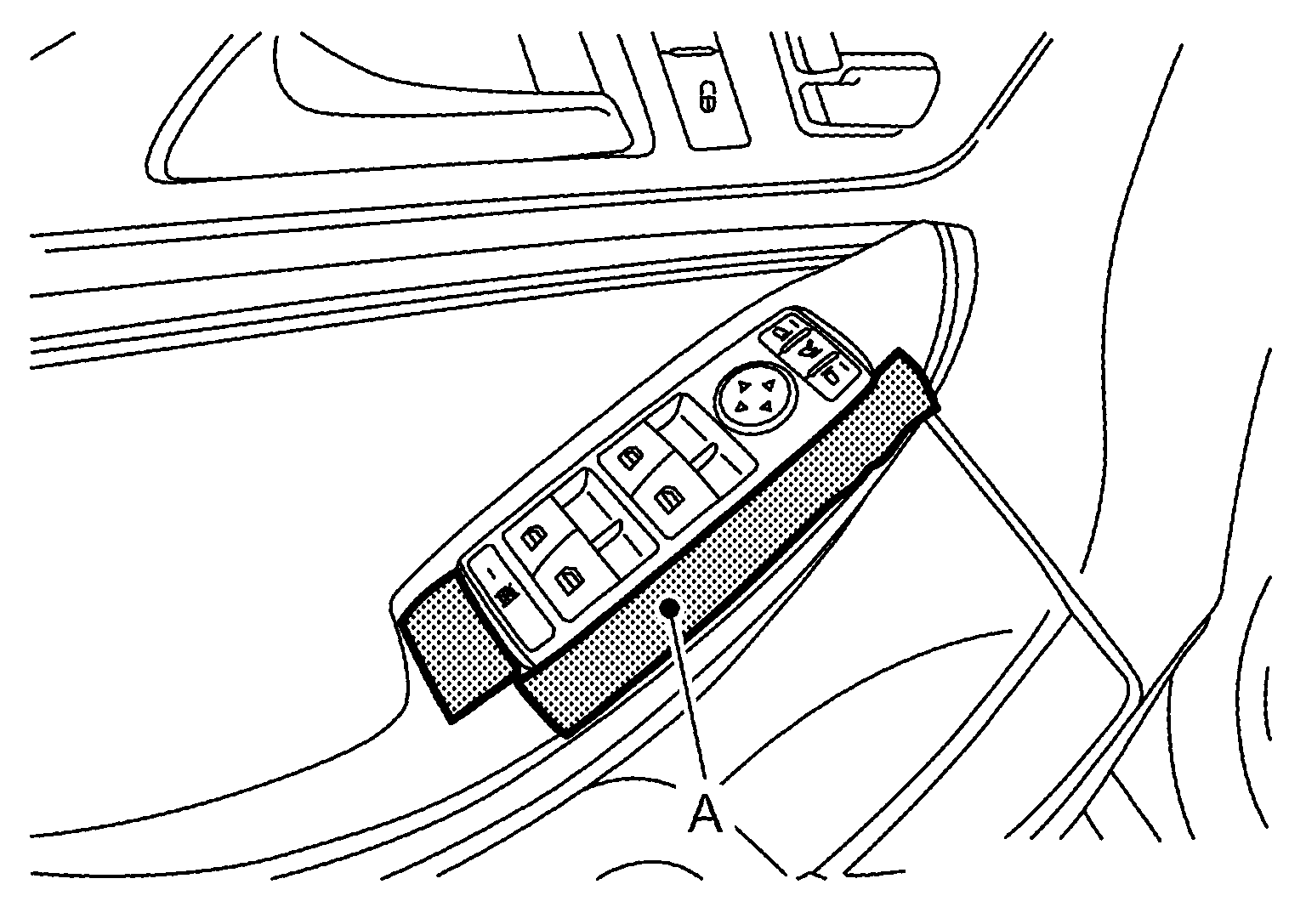

  1. Apply protective tape (A) on the front door grip to protect from damage.
    GNSJMKIB6088ZZ-088Courtesy of NISSAN NORTH AMERICA, INC.

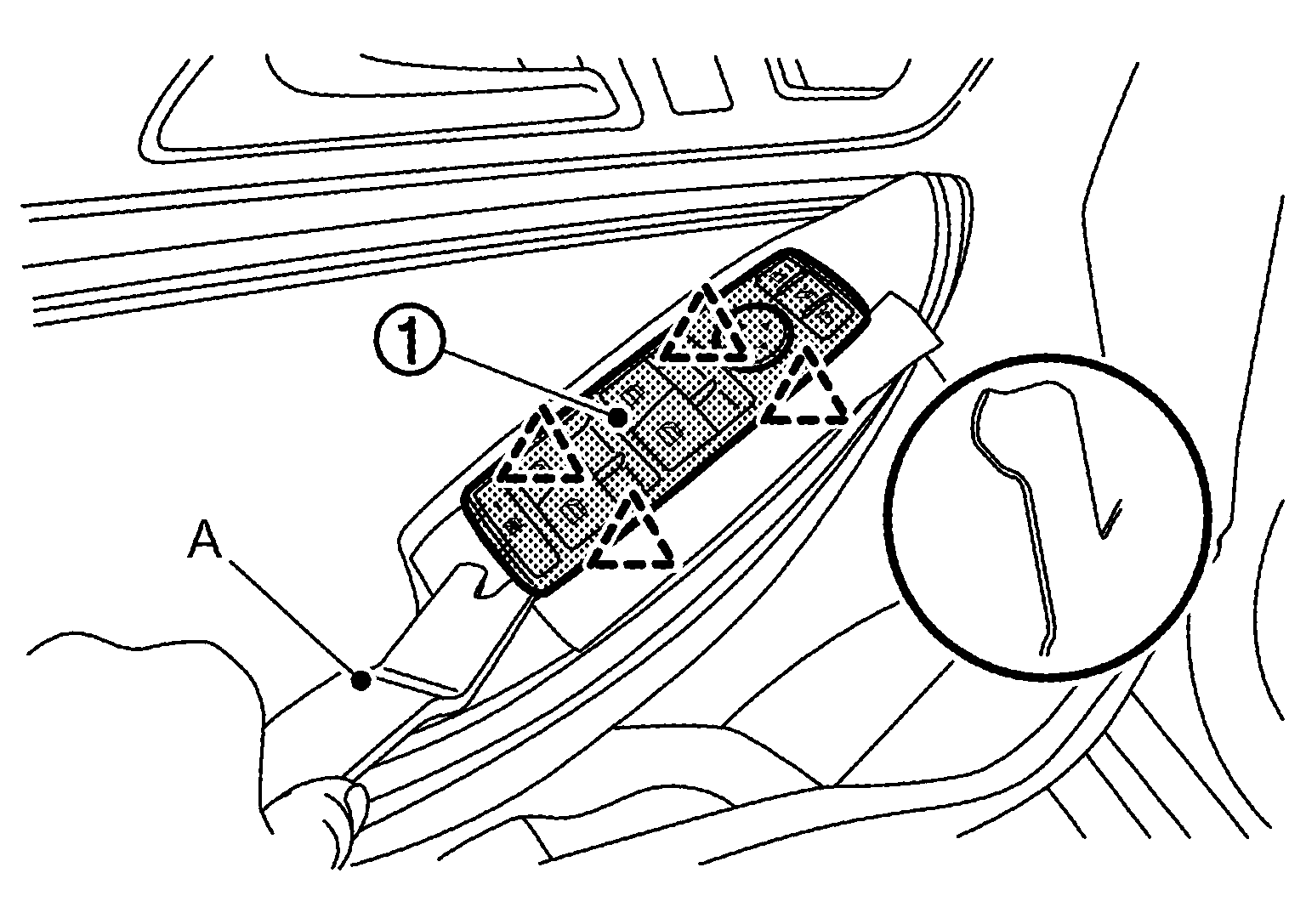

  2. Disengage power window main switch fixing pawls using removal tool (A), and than remove power window main switch WHITE-1 from door handle.
    GNSJMKIB6089ZZ-089Courtesy of NISSAN NORTH AMERICA, INC.
    SANKAKU-H : Pawl

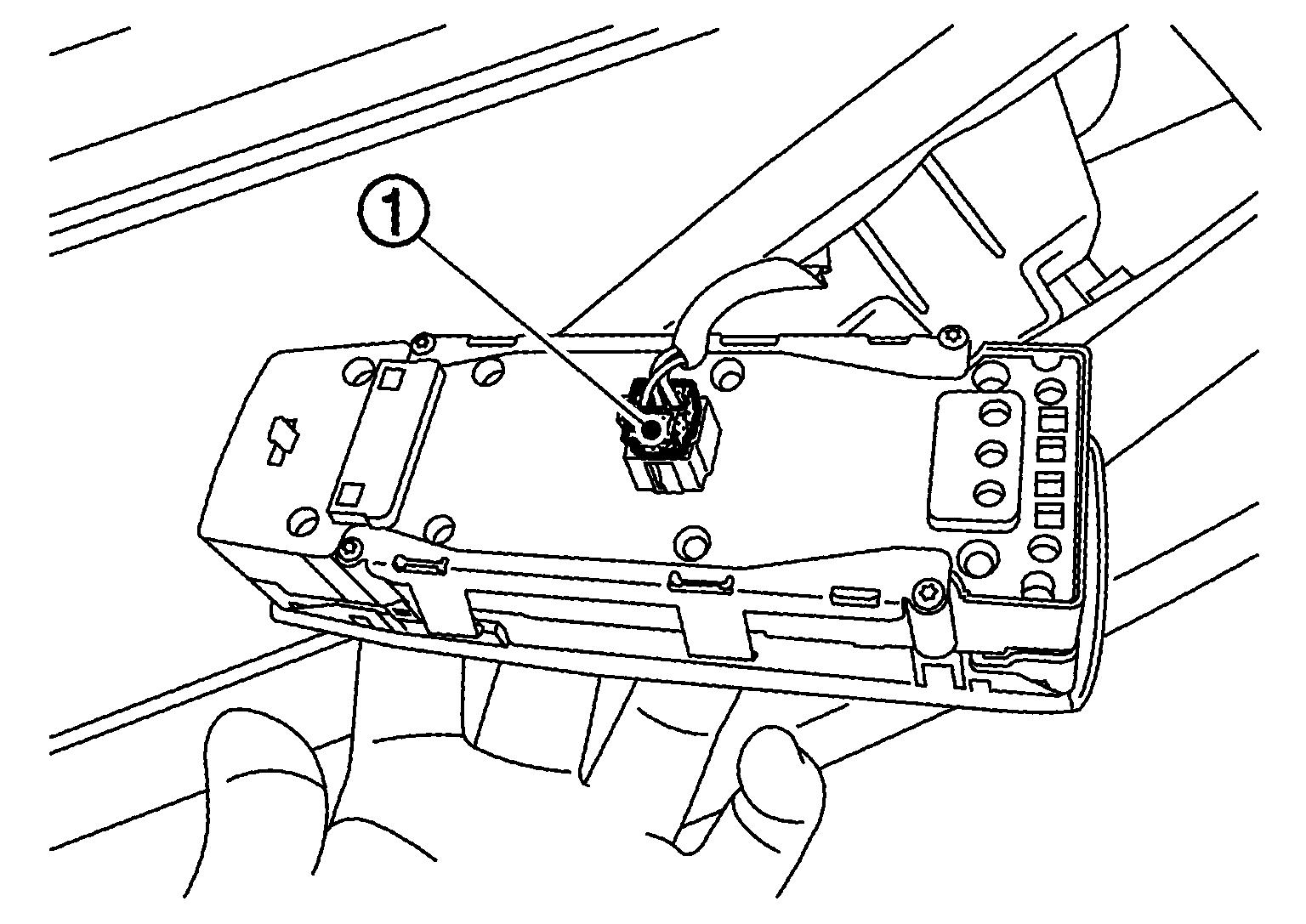

  3. Disconnect power window main switch connector WHITE-1 from power window main switch.
    GNSJMKIB6090ZZ-090Courtesy of NISSAN NORTH AMERICA, INC.
