Front Drive Shaft
›

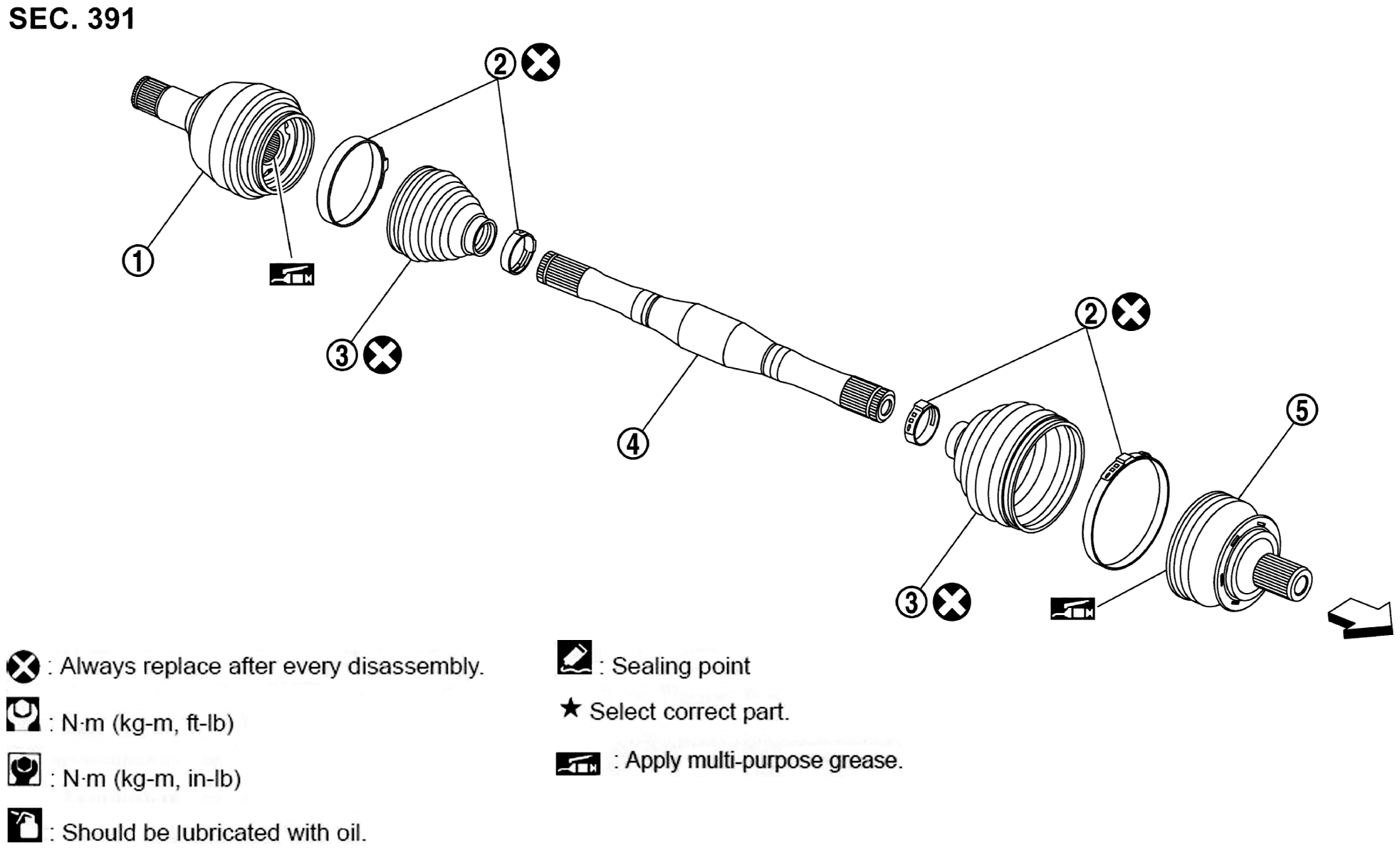

Exploded View
›
Left Side
Left Side
Courtesy of NISSAN NORTH AMERICA, INC.
Housing assembly
Boot band
Boot
Shaft
Joint sub-assembly
: Wheel side
: Fill NISSAN Genuine grease or equivalent.
: Always replace after every disassembly.
Courtesy of NISSAN NORTH AMERICA, INC.
