Component Location

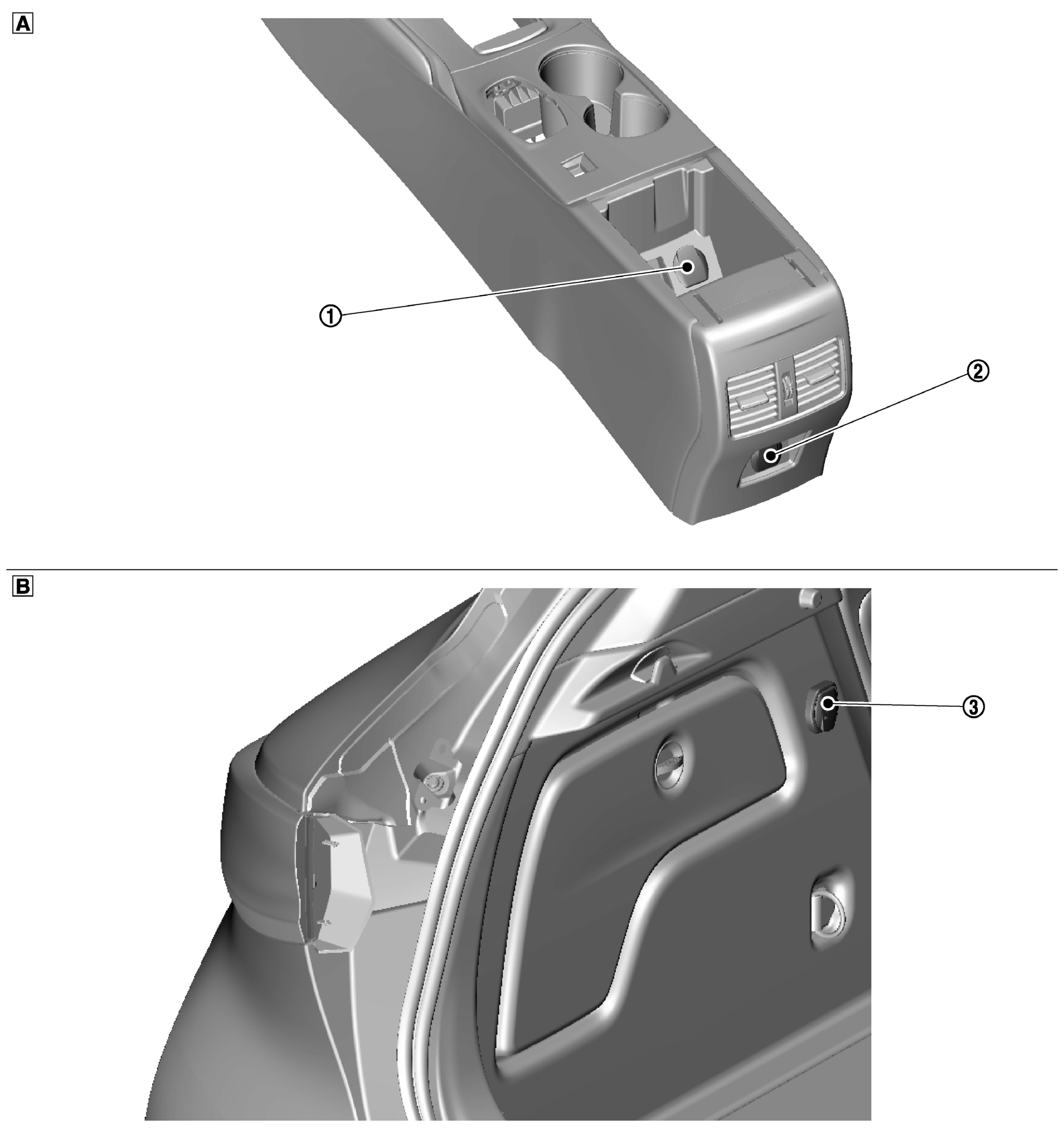

GNSJSMIA2548ZZ-548Courtesy of NISSAN NORTH AMERICA, INC.
WZ-A Center console WZ-B Luggage room
No. Component Function
WHITE-1 Console power socket Refer to POWER SOCKET .
WHITE-2 Rear power socket
WHITE-3 Luggage room power socket
