Exploded View: Disassemble

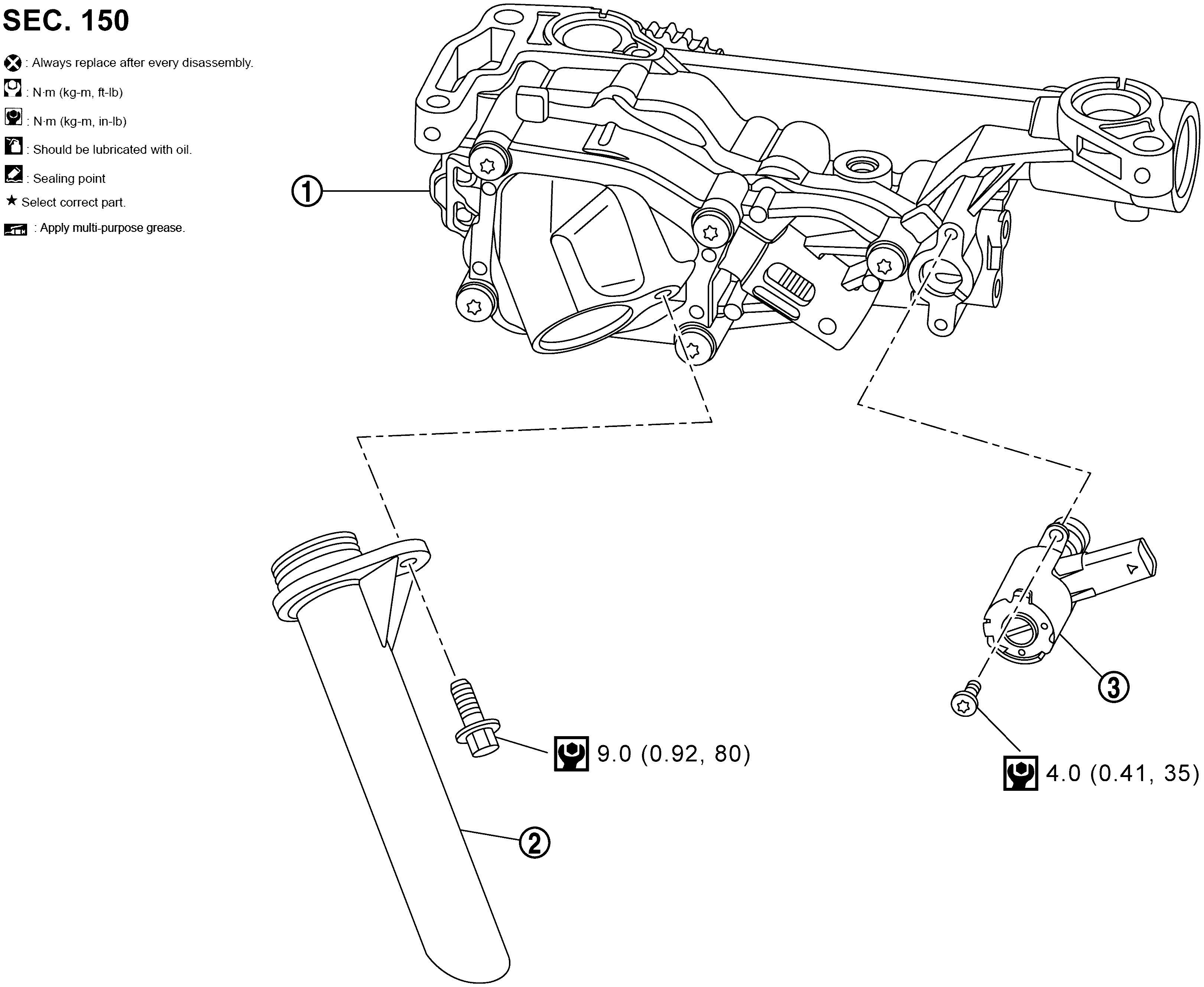

GNSJSBIA7370GB-370Courtesy of NISSAN NORTH AMERICA, INC.
WHITE-1 Engine oil pump WHITE-2 Oil suction pipe WHITE-3 Engine oil pump valve
BOLTIN : N•m (kg - m, in - lb)
