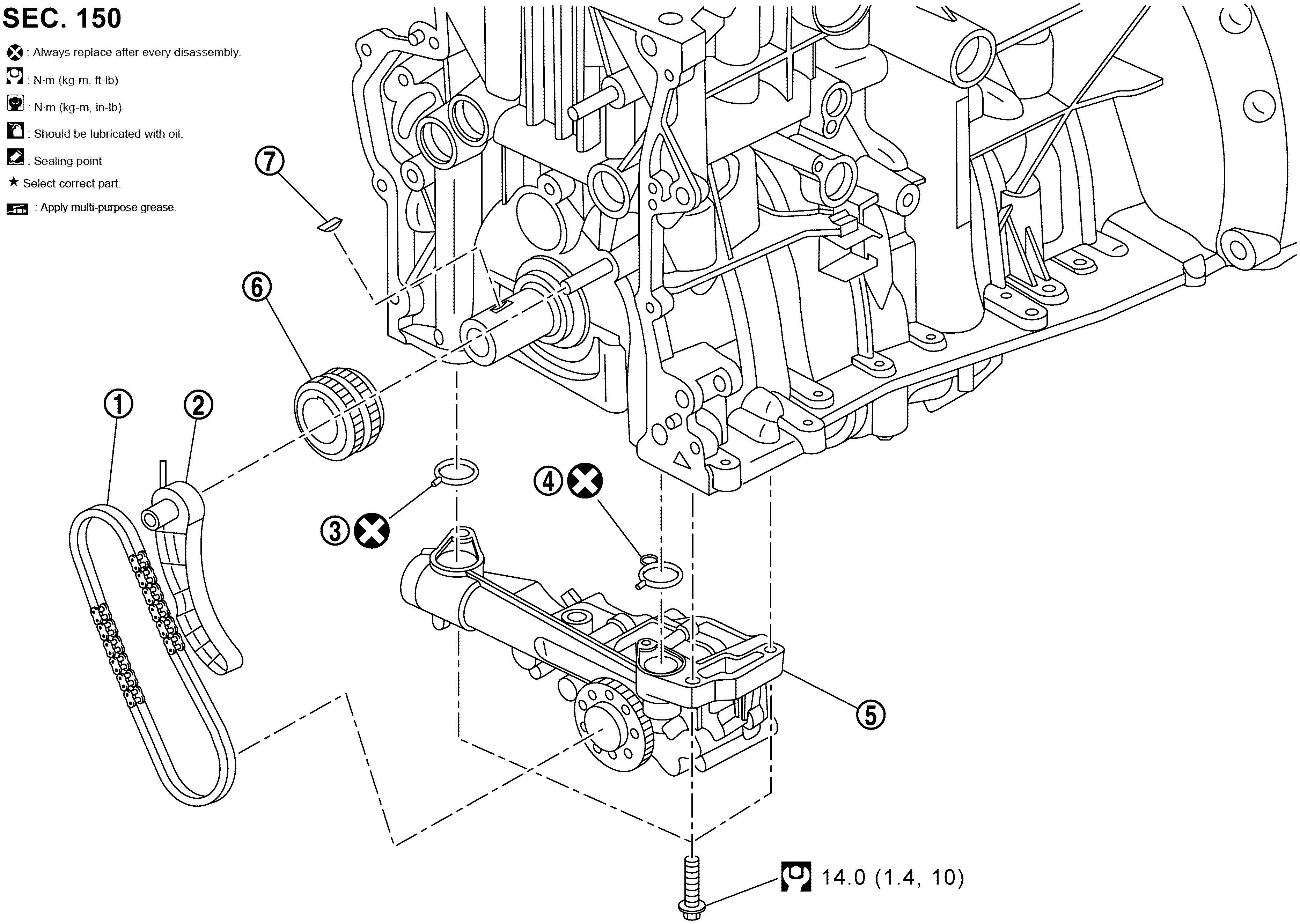

Exploded View: Removal

Fig 1: Oil Pump With Torque Specifications

Courtesy of NISSAN NORTH AMERICA, INC.

Timing chain (oil pump)	Timing chain guide	O-ring
O-ring	Engine oil pump	Crankshaft sprocket
Key
: Always replace after every disassembly.
: N•m (kg - m, ft - lb)
