Engine Control System (Introduction)
›
System Description
›
System
›
Engine Control System
›
Circuit Diagram

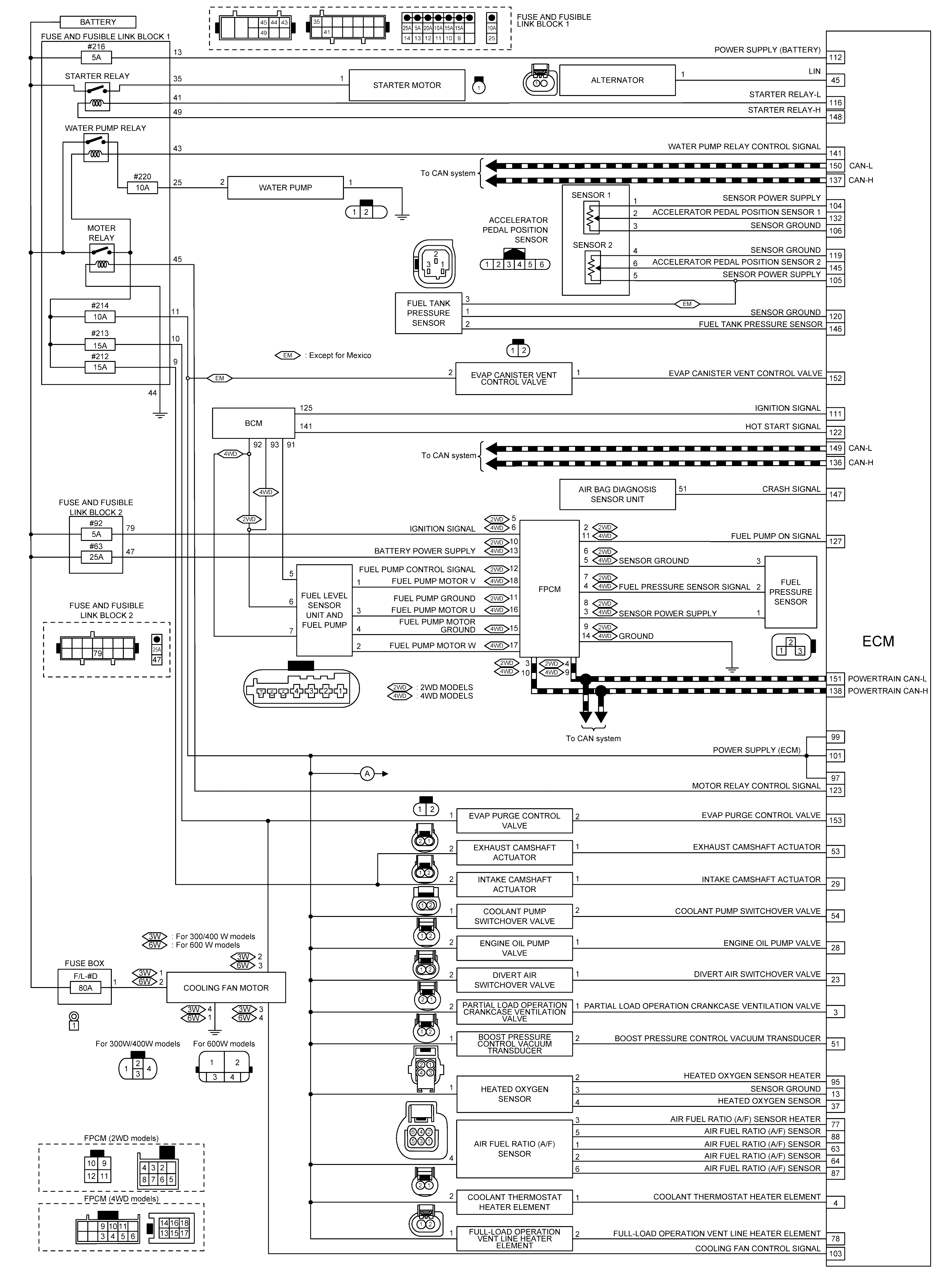

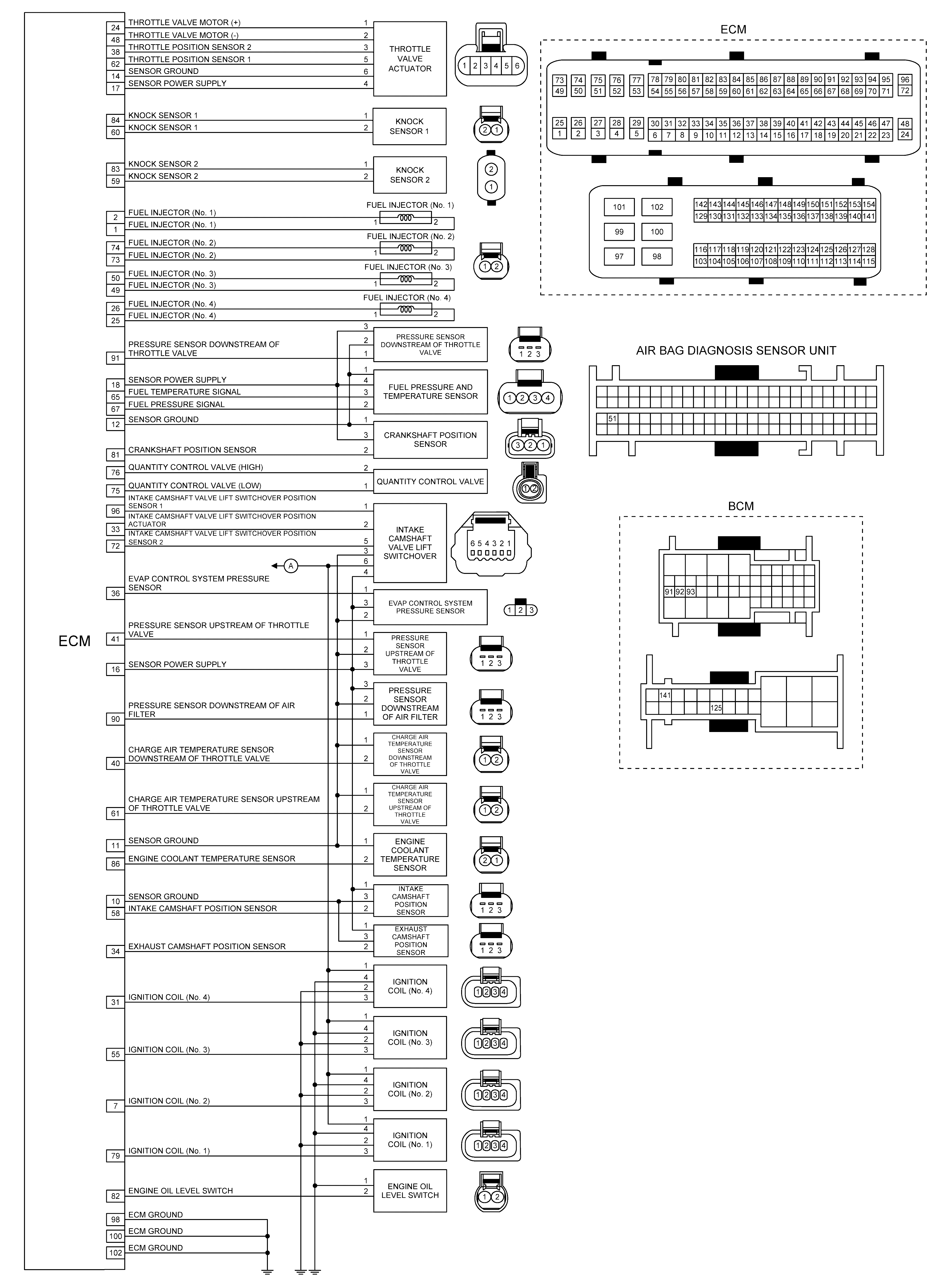

Circuit Diagram
Courtesy of NISSAN NORTH AMERICA, INC.
*: Cooling fun motor of 600 W models is not applicable.
Courtesy of NISSAN NORTH AMERICA, INC.
Courtesy of NISSAN NORTH AMERICA, INC.
Courtesy of NISSAN NORTH AMERICA, INC.
