Disassembly And Assembly: Assembly

Note the following, and install in the reverse order of disassembly.

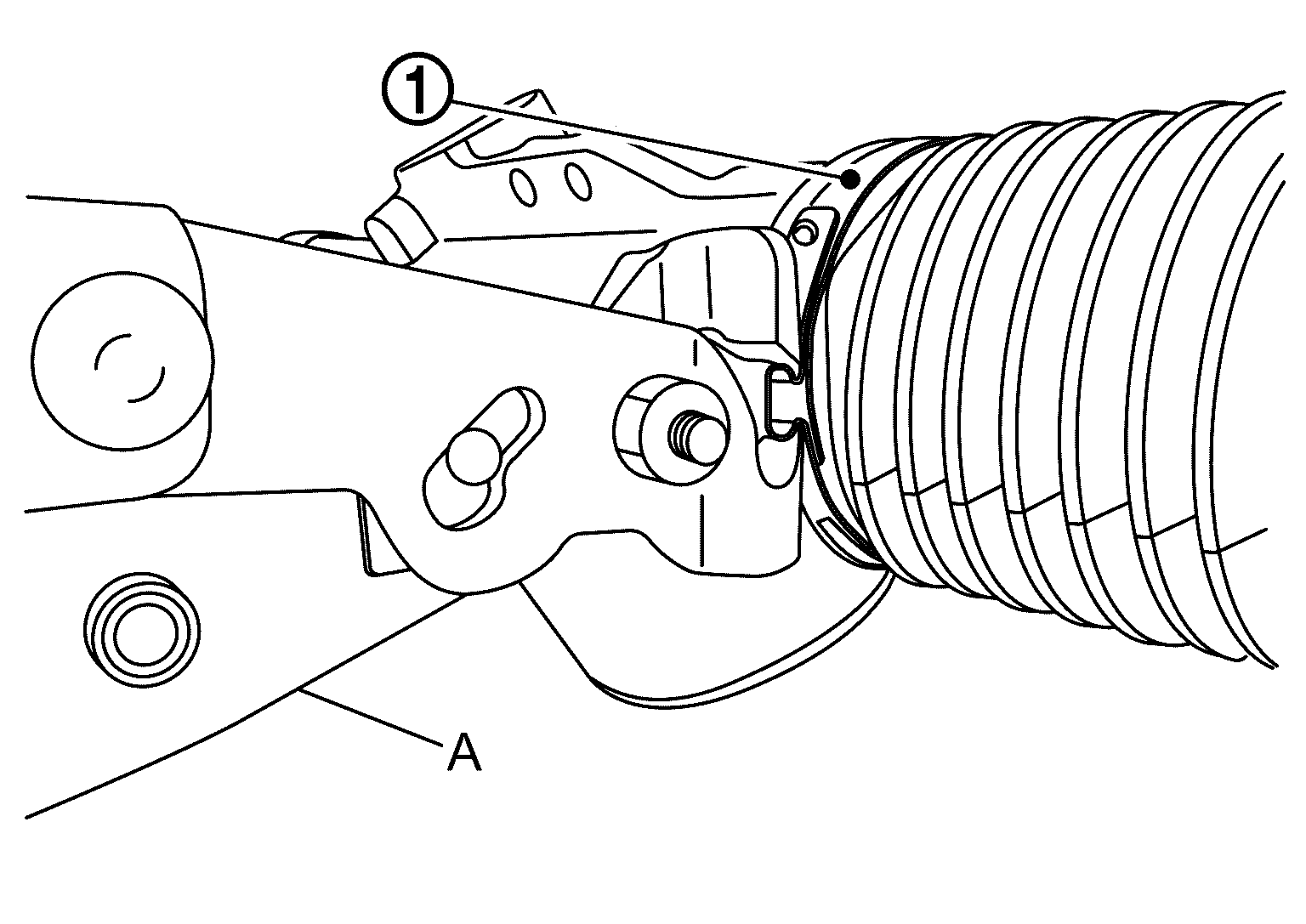

• Secure the ends of the boot with boot clamp (large diameter) using the boot band crimping tool (SST: KV40107300) (A).

  Courtesy of NISSAN NORTH AMERICA, INC.

  CAUTION:

  Never reuse boot clamp (large diameter).

• Install boot clamp (small diameter).
  CAUTION:

  Never reuse boot clamp (small diameter).
