Input Shaft
›
Exploded View

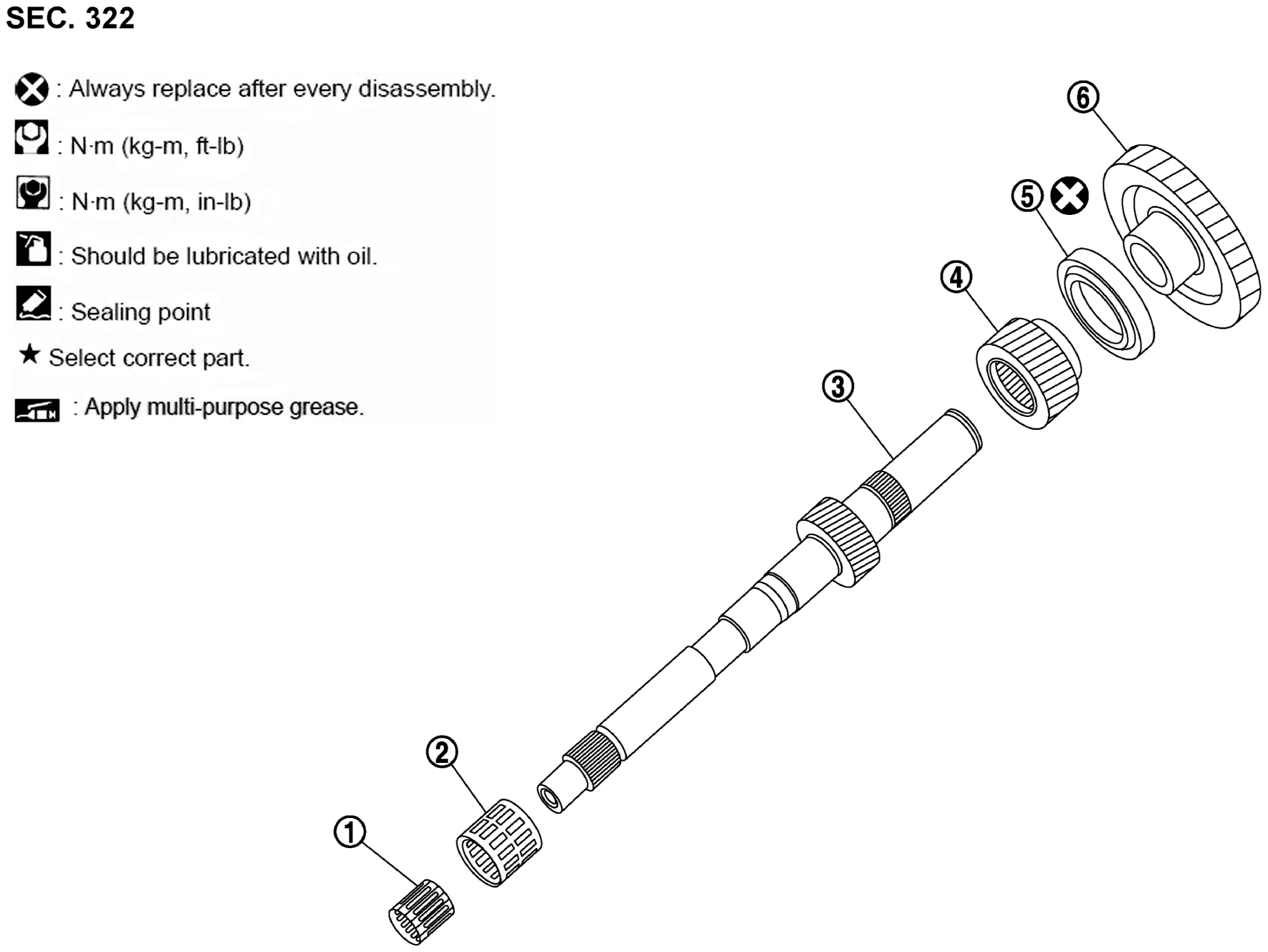

Exploded View
Courtesy of NISSAN NORTH AMERICA, INC.
Needle bearing
Needle bearing
Drive shaft
3rd gear
Sensor rotor
5th and 7th gear
: Always replace after every disassembly.
Courtesy of NISSAN NORTH AMERICA, INC.
