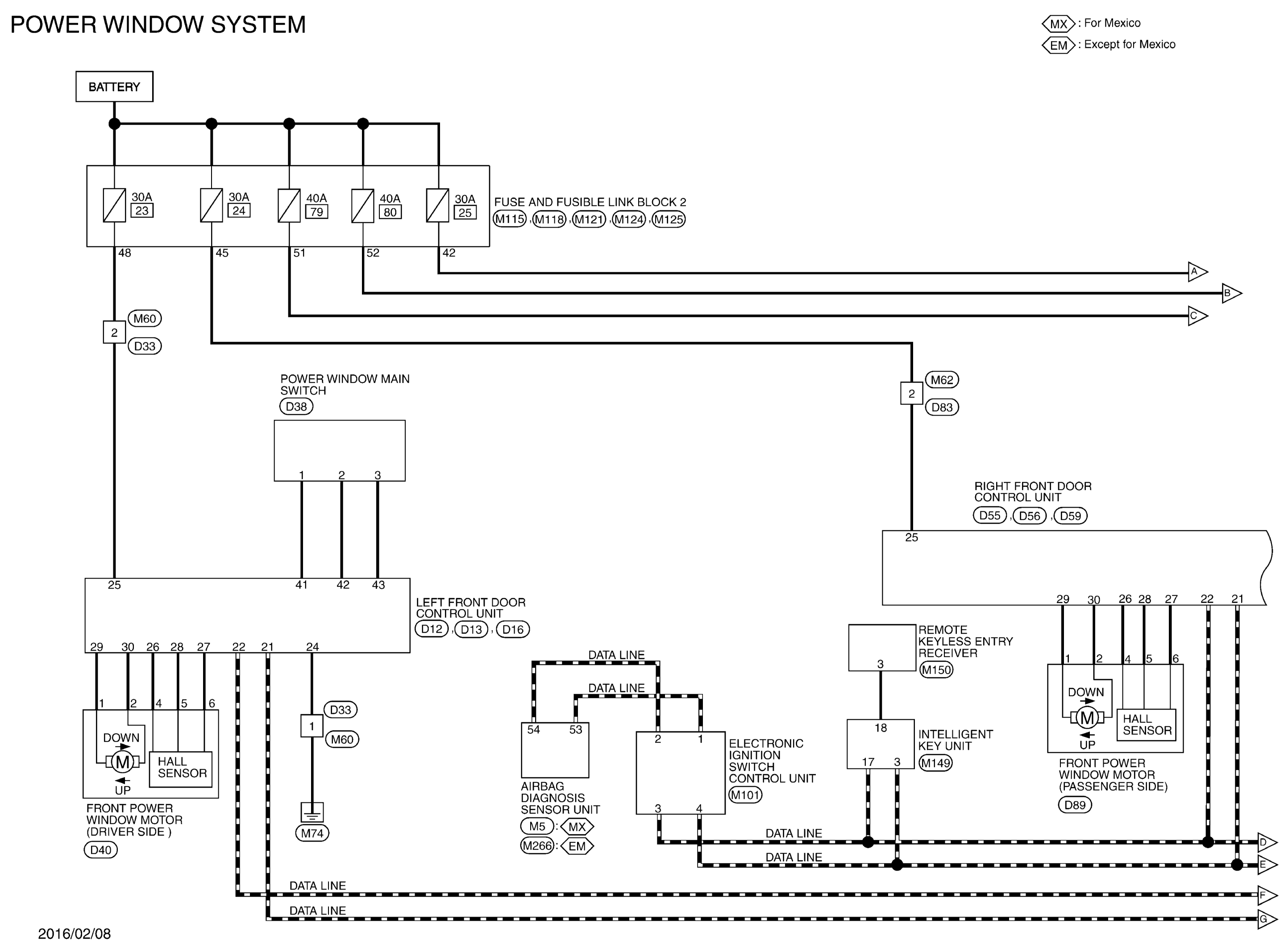

Power Window System: Wiring Diagram

GNSJRKWF8951GB-951

Courtesy of NISSAN NORTH AMERICA, INC.

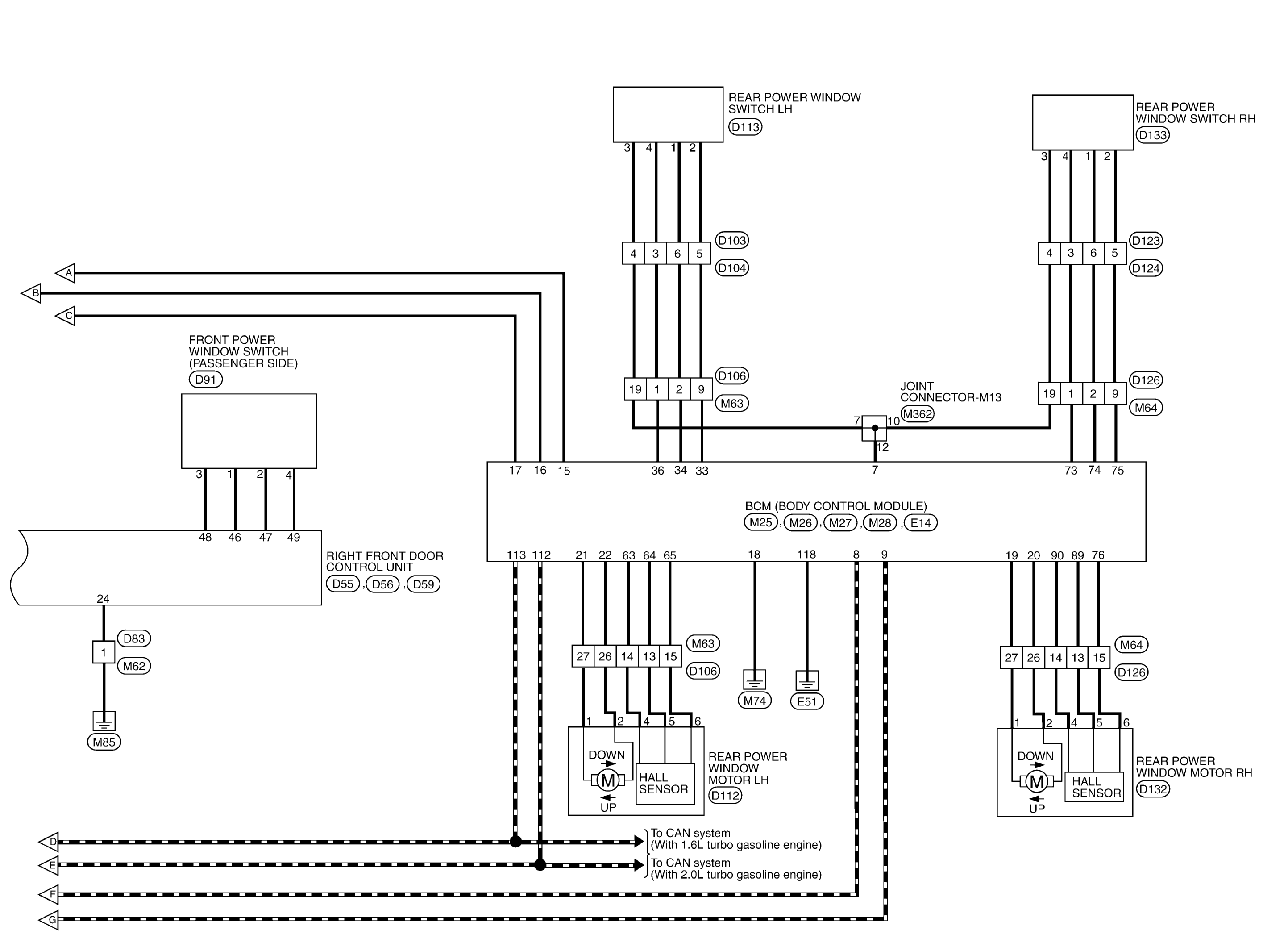

GNSJRKWF8952GB-952

Courtesy of NISSAN NORTH AMERICA, INC.

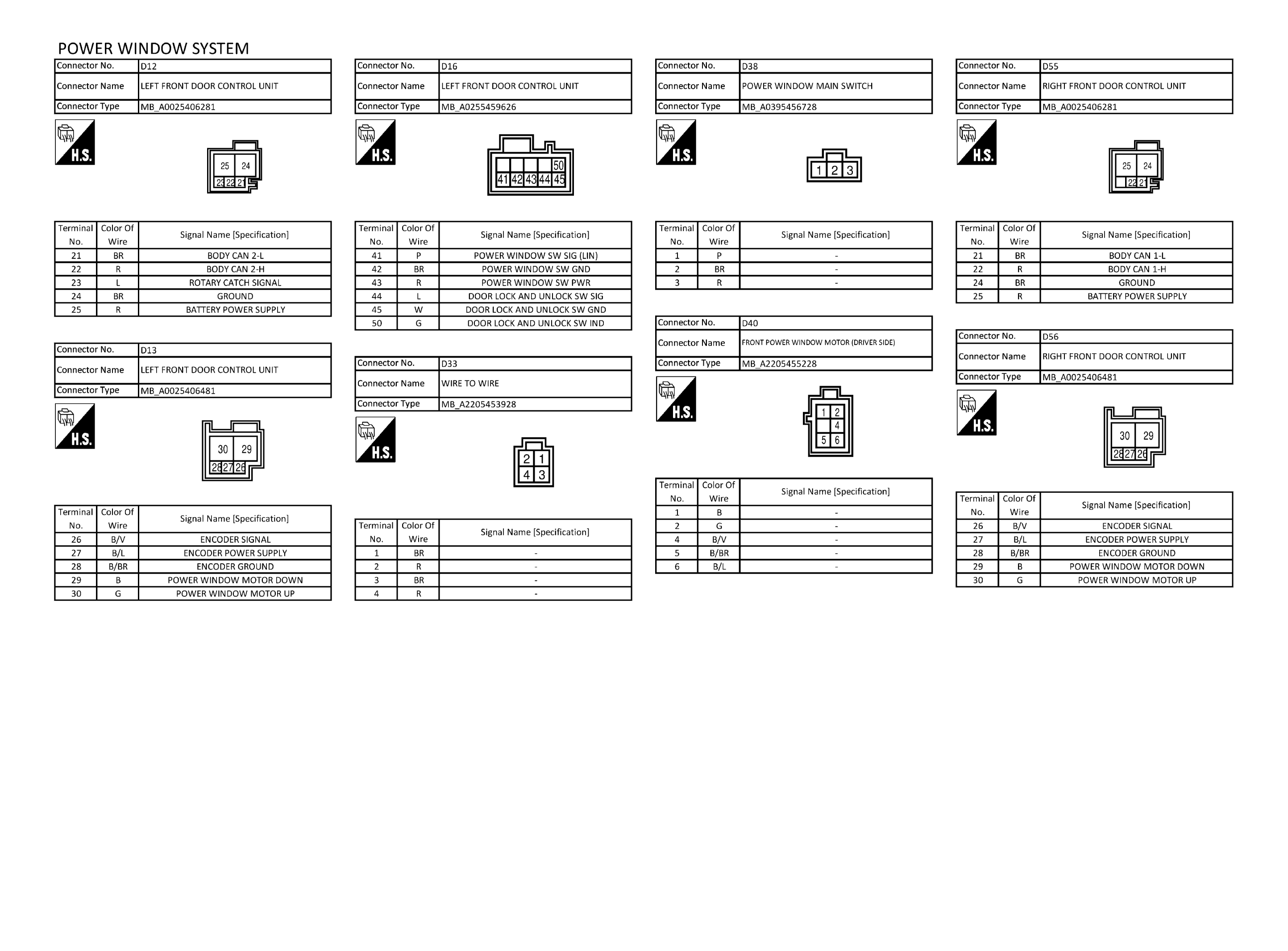

GNSJRKWF8953GB-953

Courtesy of NISSAN NORTH AMERICA, INC.

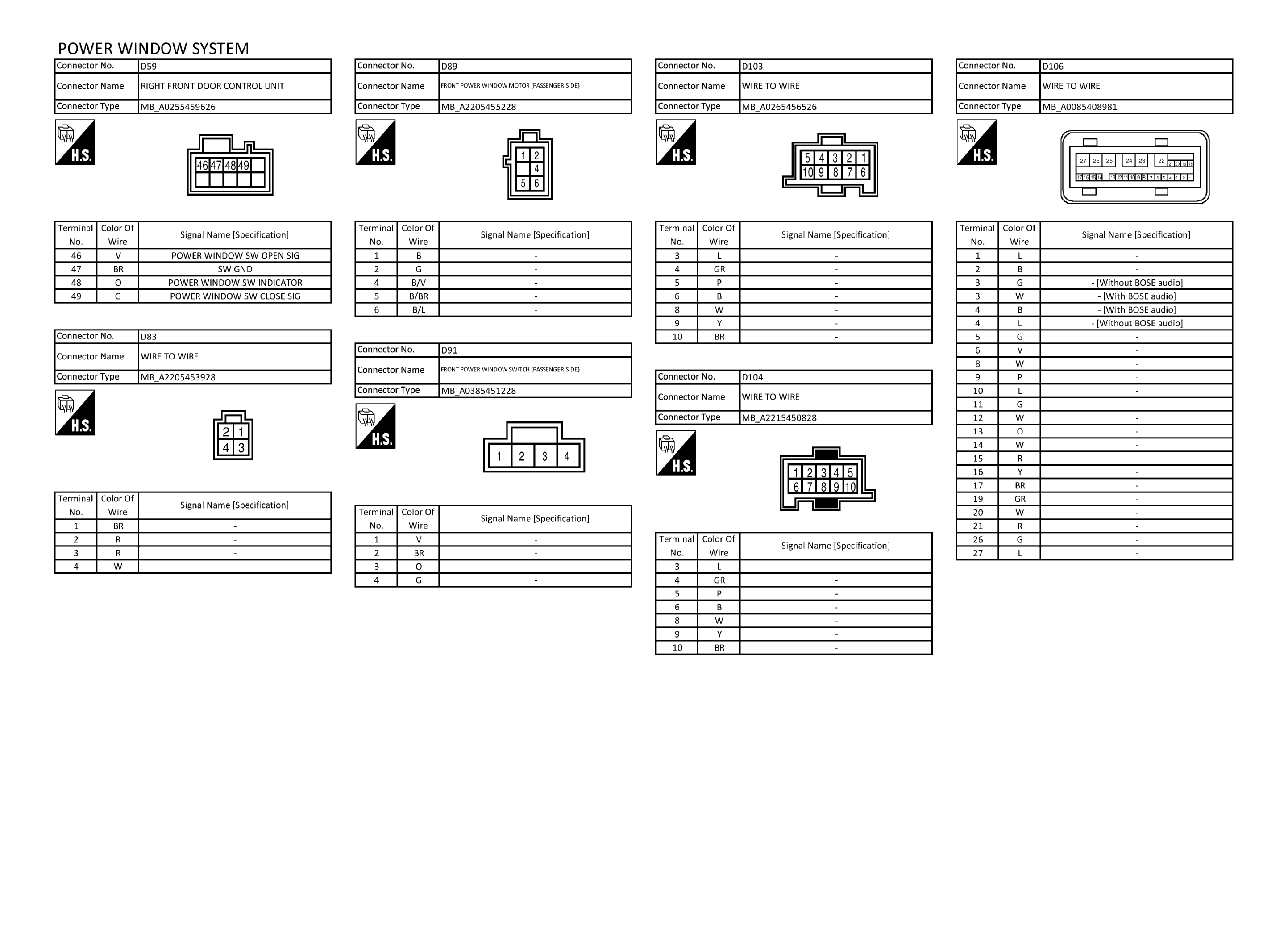

GNSJRKWF8954GB-954

Courtesy of NISSAN NORTH AMERICA, INC.

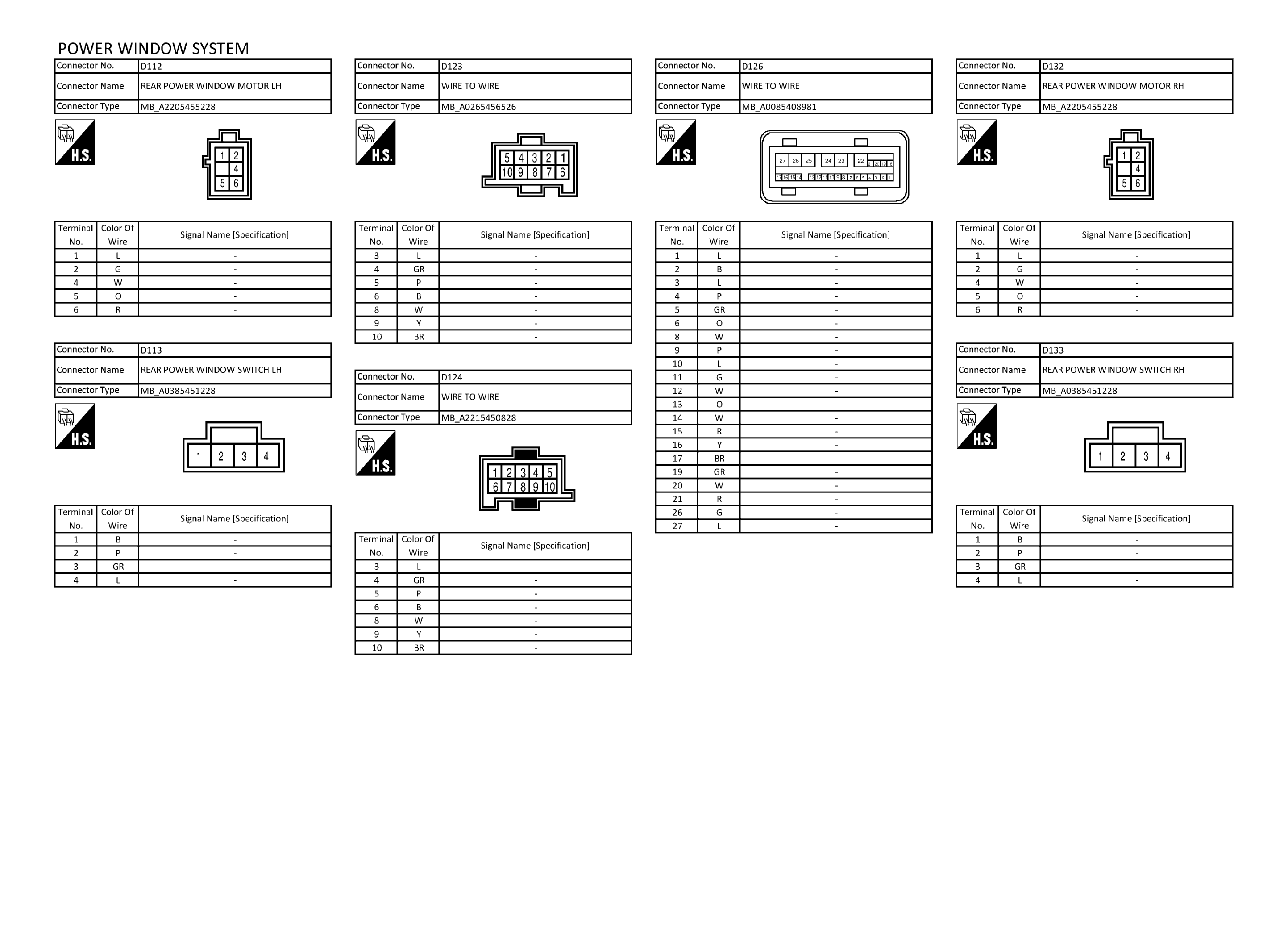

GNSJRKWF8955GB-955

Courtesy of NISSAN NORTH AMERICA, INC.

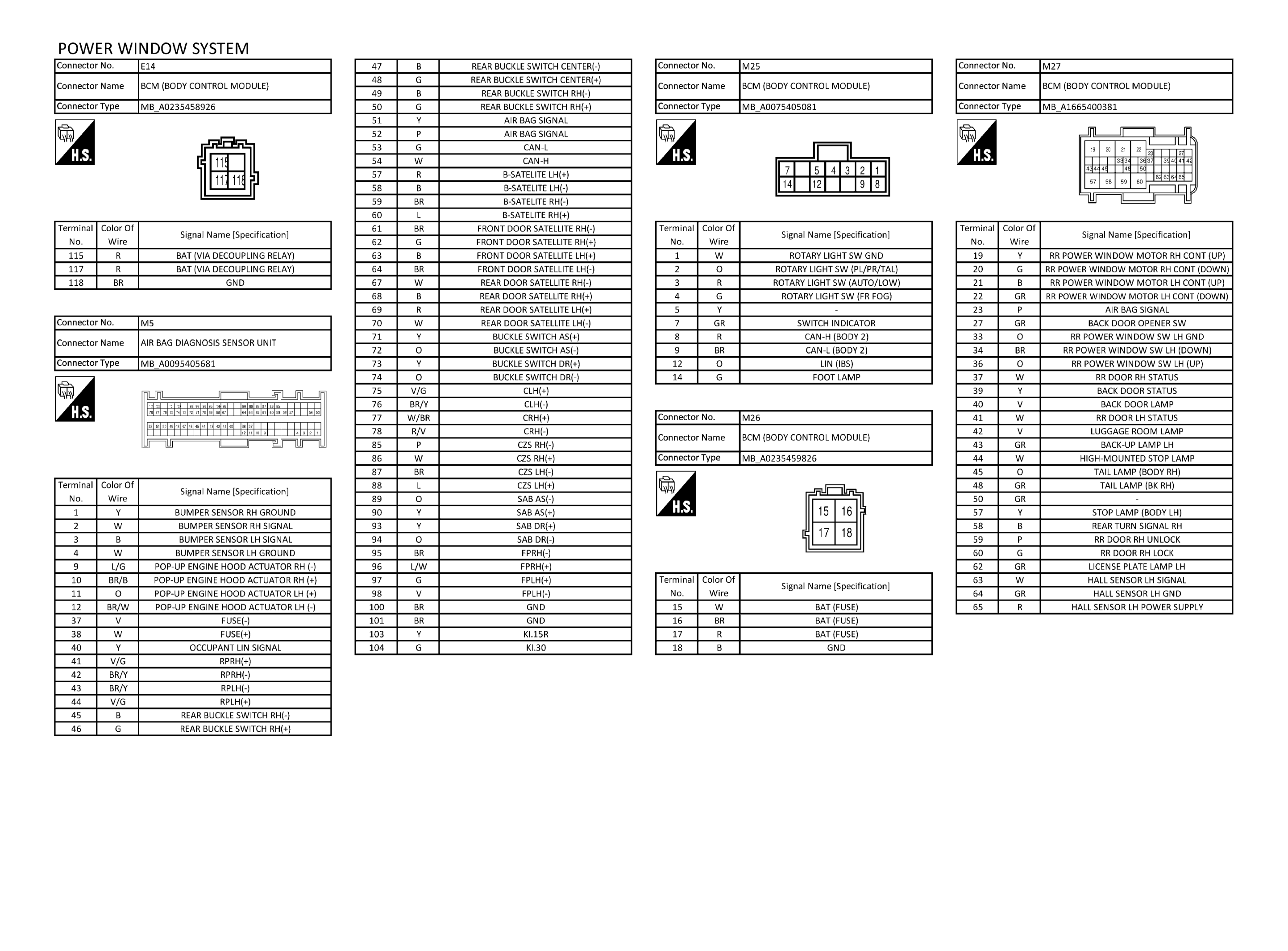

GNSJRKWF8956GB-956

Courtesy of NISSAN NORTH AMERICA, INC.

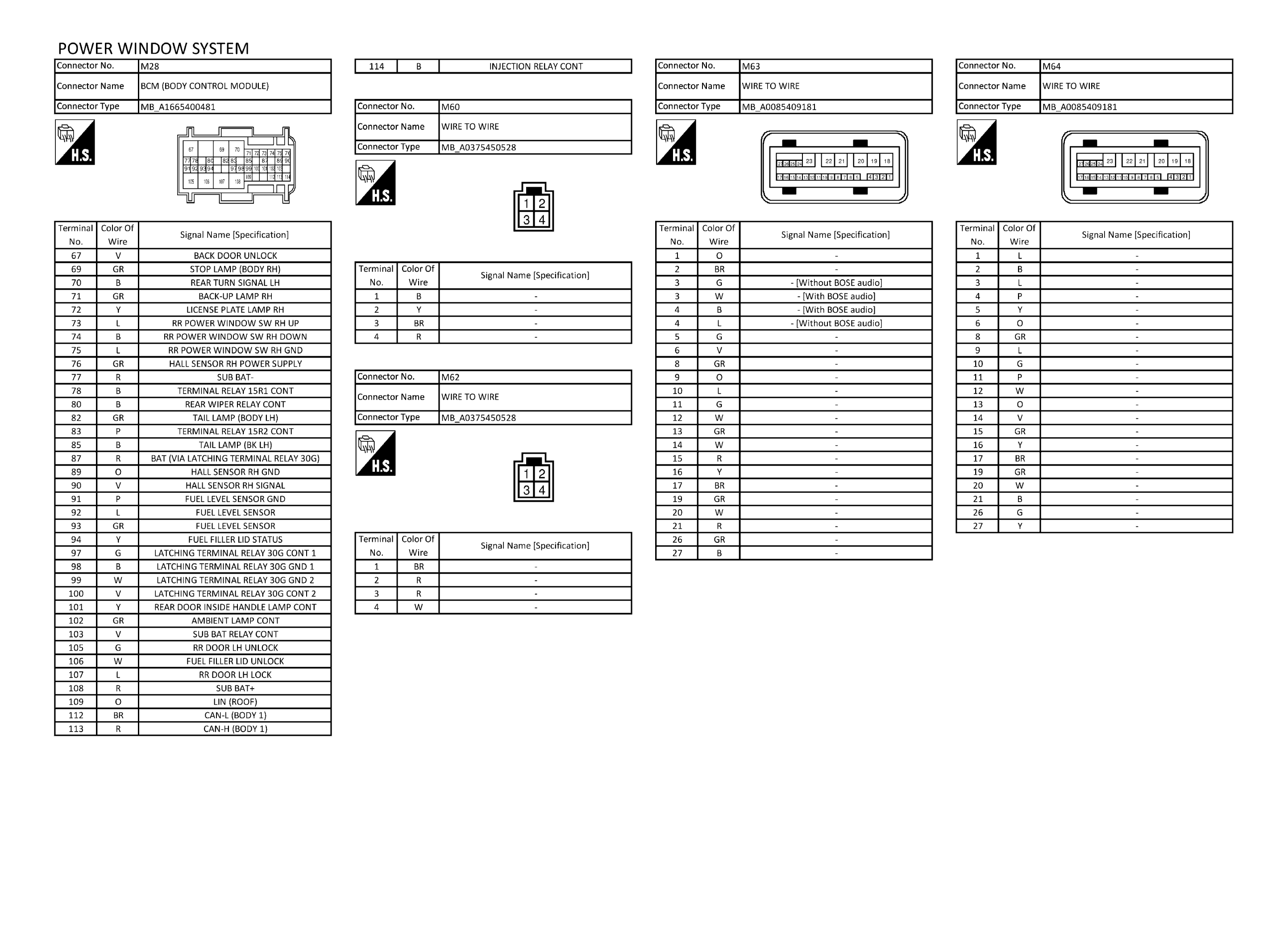

GNSJRKWF8957GB-957

Courtesy of NISSAN NORTH AMERICA, INC.

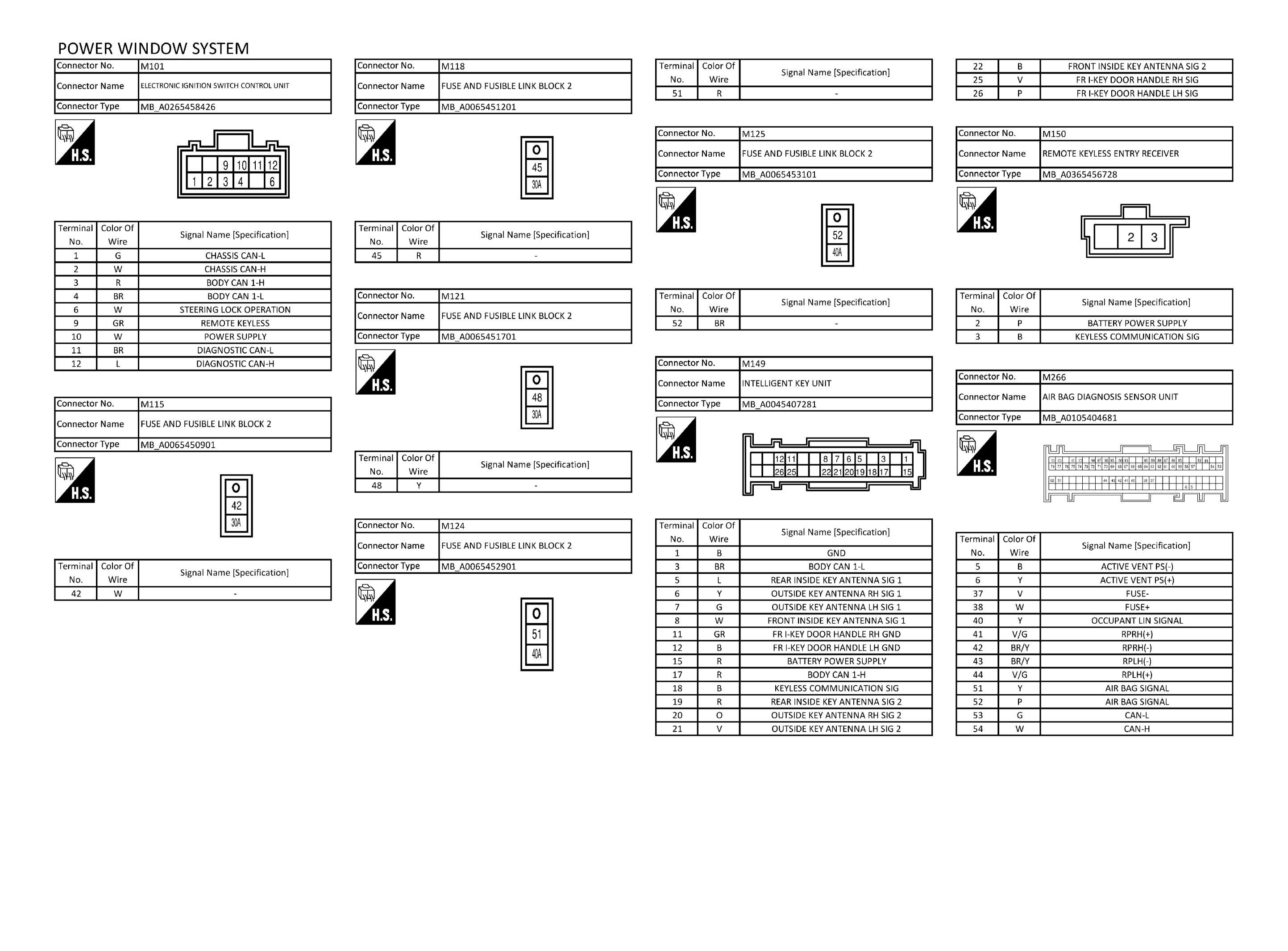

GNSJRKWF8958GB-958

Courtesy of NISSAN NORTH AMERICA, INC.

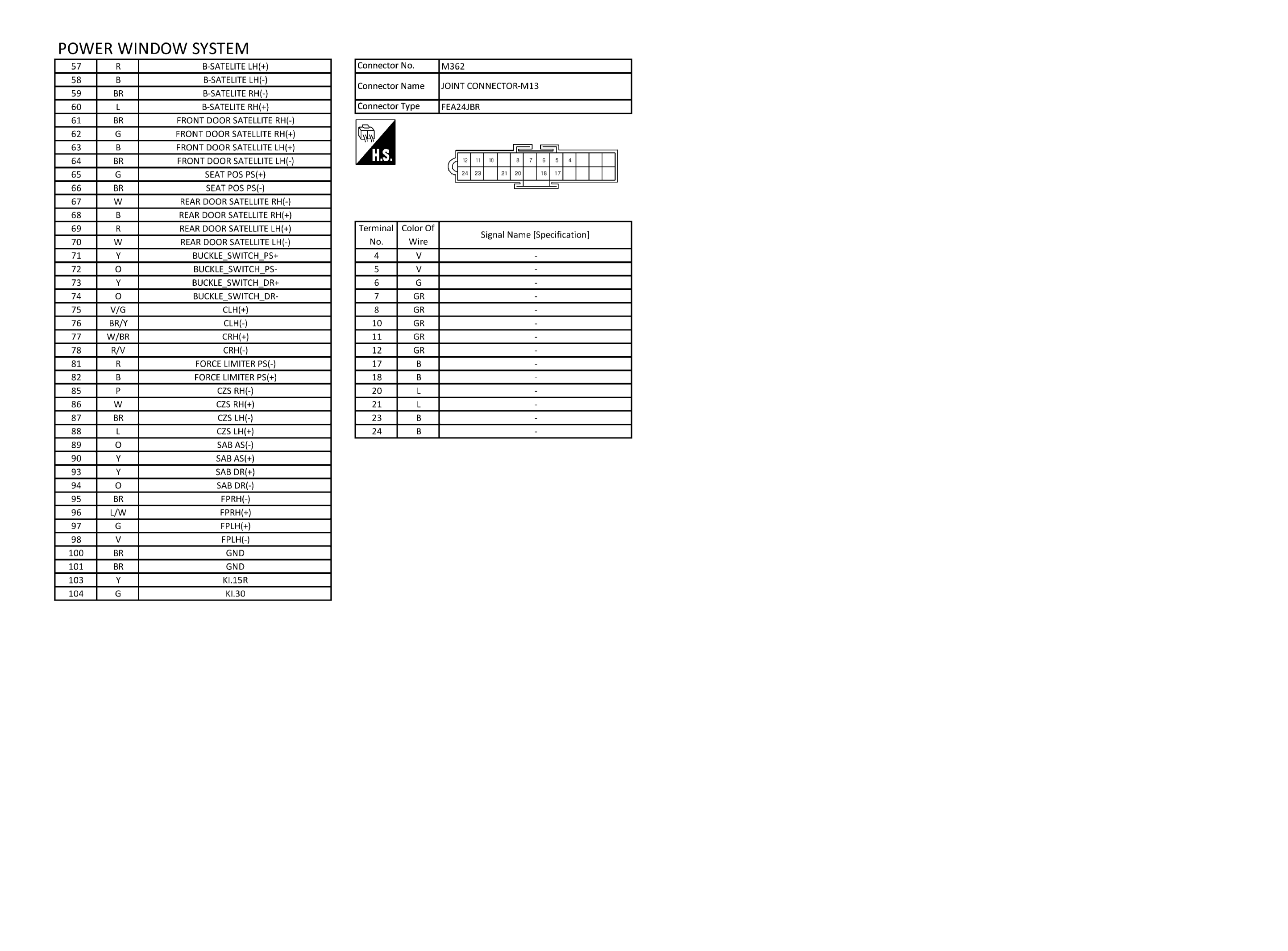

GNSJRKWF8959GB-959

Courtesy of NISSAN NORTH AMERICA, INC.
