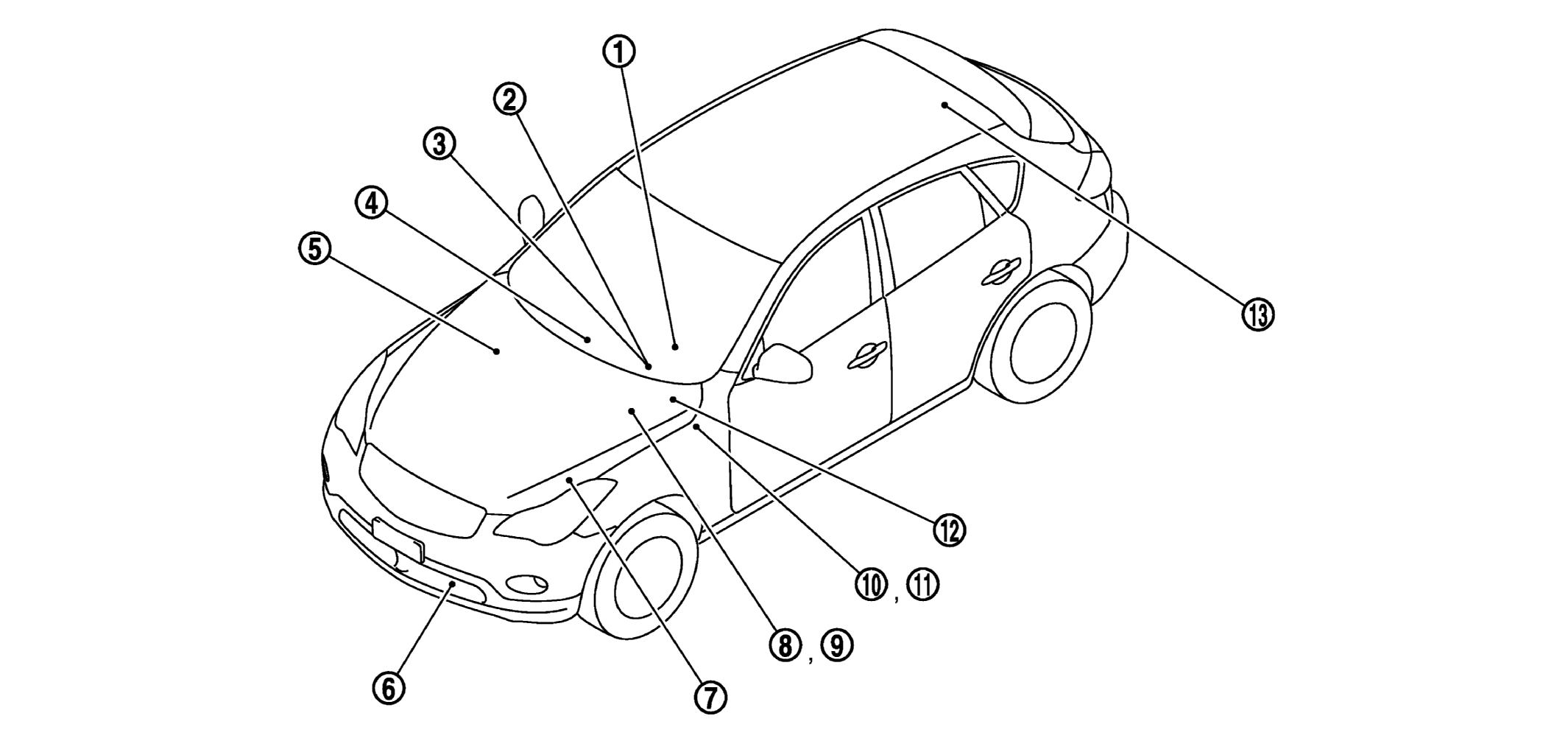

Component Location
| 1. | ICC steering switch (Dynamic driver assistance switch) |
2. | Information display, ICC system warning lamp (On the combination meter) |
3. | ICC warning chime Refer to COMPONENT LOCATION . |
| 4. | AV control unit Refer to COMPONENT LOCATION . |
5. | ECM Refer to COMPONENT LOCATION . |
6. | ICC sensor integrated unit Refer to COMPONENT LOCATION . |
| 7. | ICC brake hold relay Refer to COMPONENT LOCATION . |
8. | Booster solenoid/ Release switch Refer to COMPONENT LOCATION . |
9. | Brake pressure sensor Refer to COMPONENT LOCATION . |
| 10. | Stop lamp switch Refer to COMPONENT LOCATION . |
11. | ICC brake switch Refer to COMPONENT LOCATION . |
12. | Accelerator pedal actuator (accelerator pedal assembly) |
| 13. | Brake booster control unit Refer to COMPONENT LOCATION . |
