Exploded View

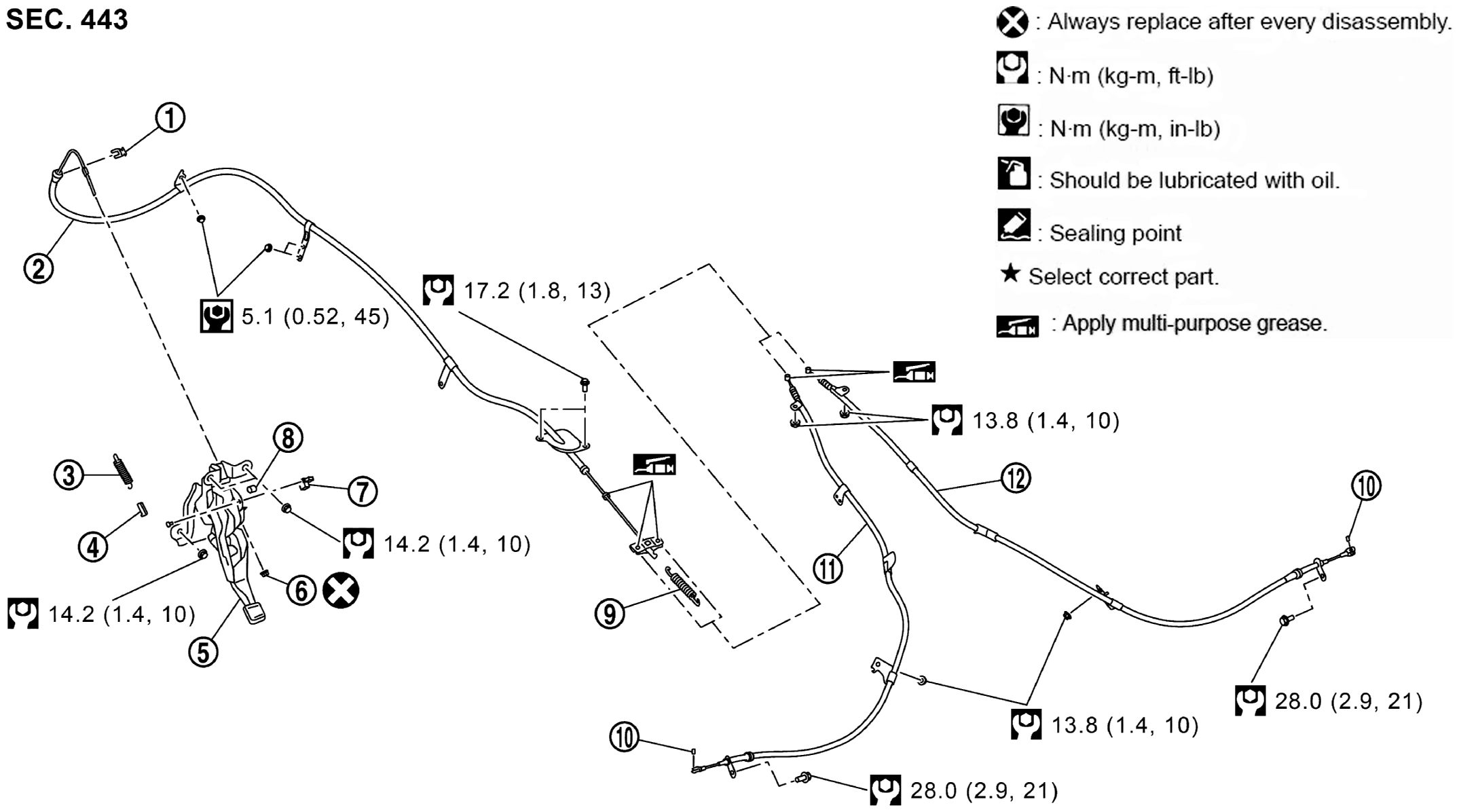

Fig 1: Parking Brake Control With Torque Specifications

Courtesy of NISSAN NORTH AMERICA, INC.

1.	Lock plate	2.	Front cable	3.	Return spring
4.	Silencer	5.	Parking brake pedal assembly	6.	Adjusting nut
7.	Parking brake switch	8.	Stopper rubber	9.	Spring
10.	Pin	11.	Rear cable (left side)	12.	Rear cable (right side)
: Apply multi-purpose grease.
Refer to COMPONENTS for symbols not described on the above.
