Exploded View

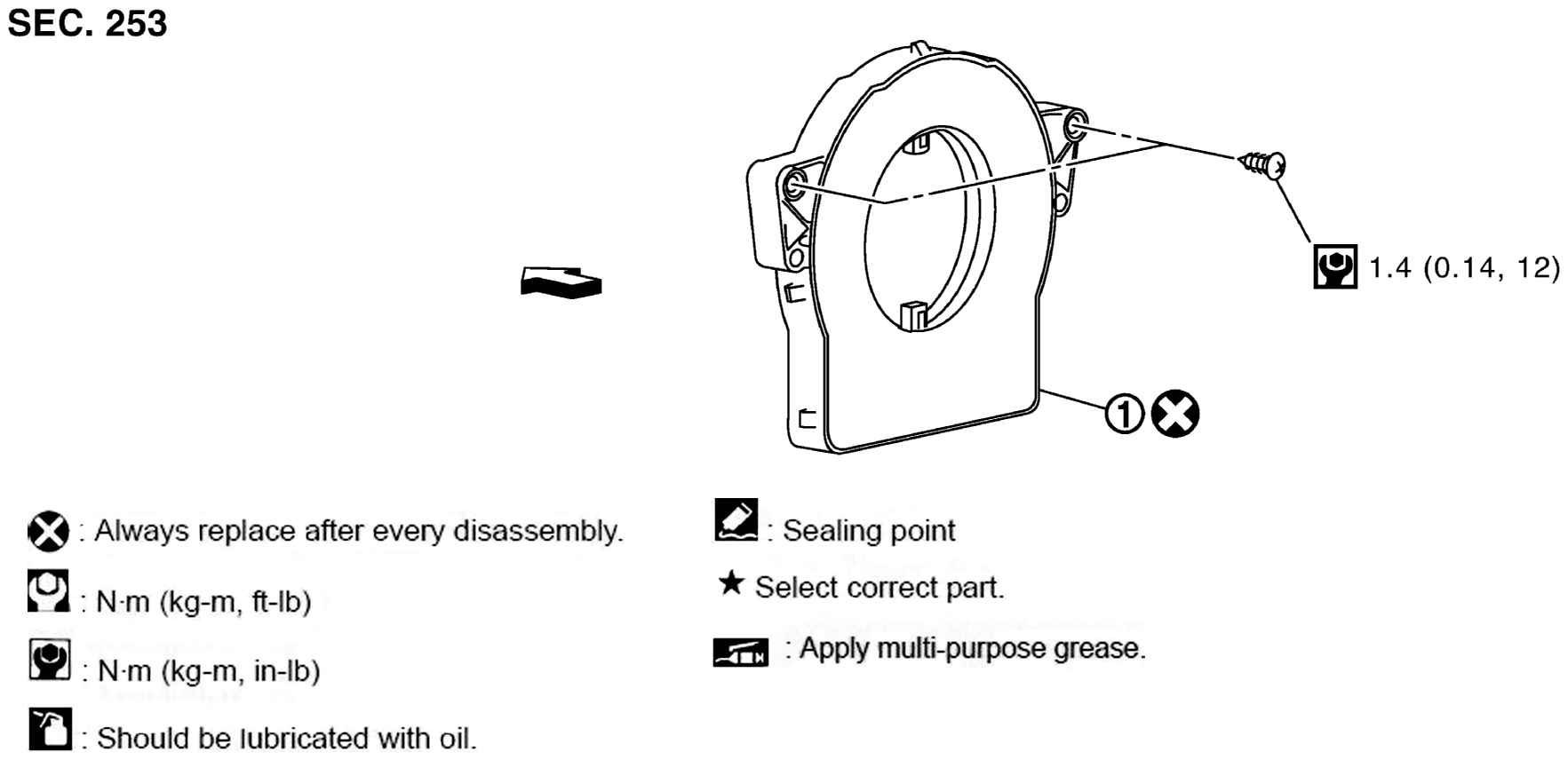

GNSJSFIA0237GB-237Courtesy of NISSAN NORTH AMERICA, INC.
1. Steering angle sensor
ARROW : Vehicle front
Refer to GI article COMPONENTS for symbol marks in the figure.
