Exploded View

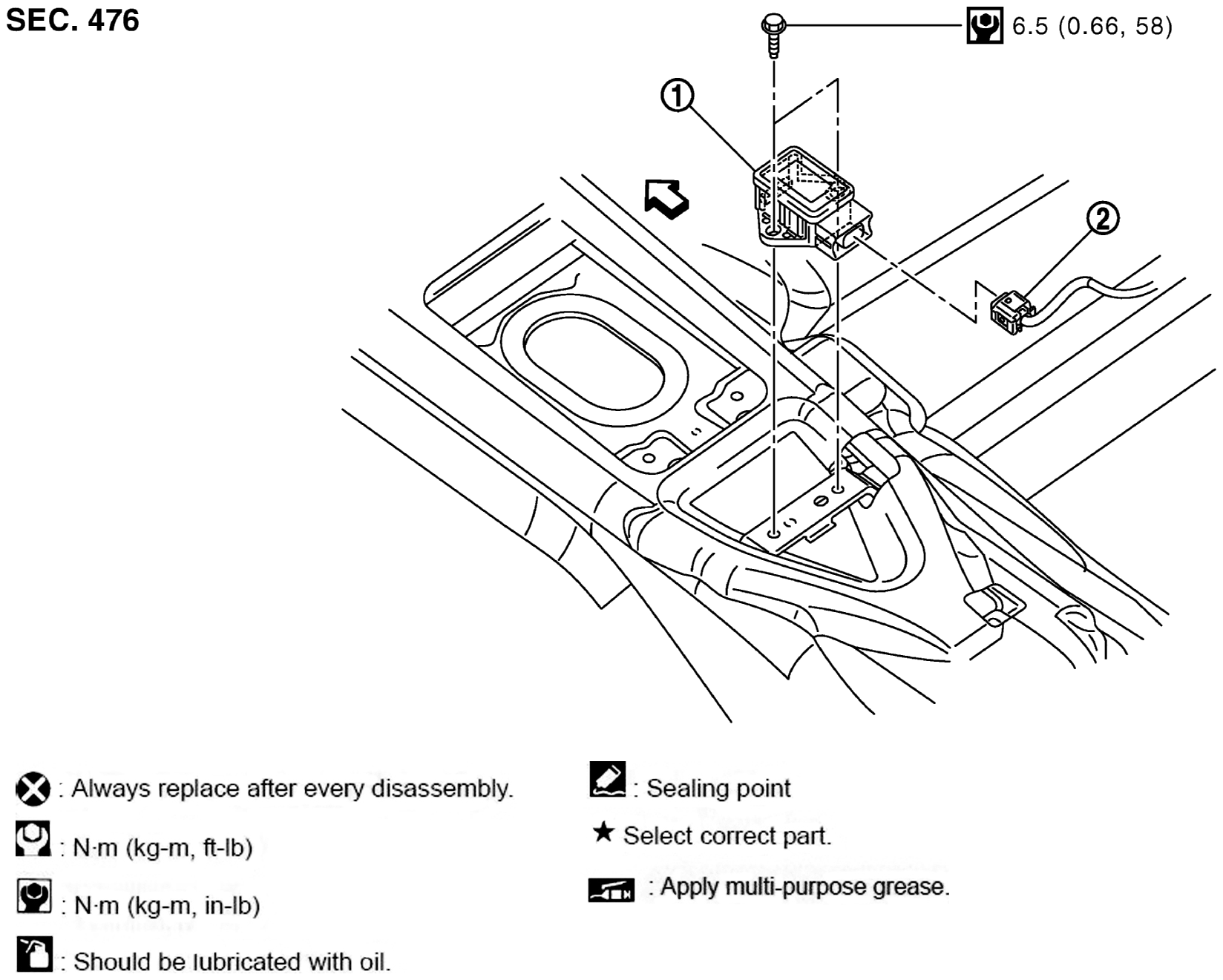

GNSJSFIA0197GB-197Courtesy of NISSAN NORTH AMERICA, INC.
1. Yaw rate/side G sensor 2. Connector
ARROW : Vehicle front
Refer to GI article COMPONENTS for symbol makes in the figure.
