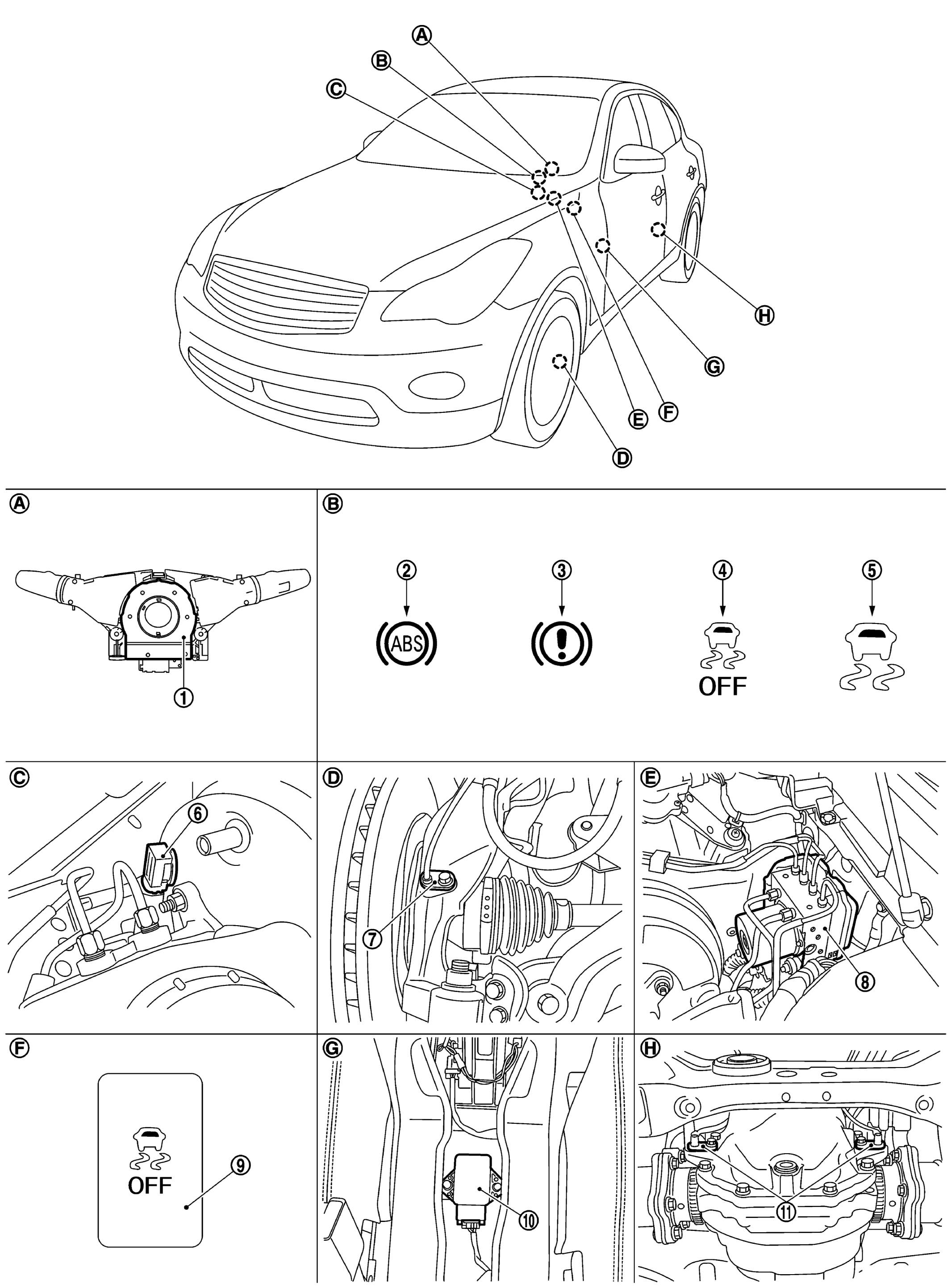

Component Location
For USA
| 1. | Steering angle sensor | 2. | ABS warning lamp | 3. | Brake warning lamp |
| 4. | VDC OFF indicator lamp | 5. | VDC warning lamp | 6. | Vacuum sensor (with ICC) |
| 7. | Front wheel sensor | 8. | ABS actuator and electric unit (control unit) | 9. | VDC OFF switch |
| 10. | Yaw rate/side G sensor | 11. | Rear wheel sensor | ||
| A. | Back of spiral cable assembly | B. | Combination meter | C. | Brake booster |
| D. | Steering knuckle | E. | Inside brake master cylinder cover | F. | Instrument driver lower panel |
| G. | Under center console | H. | Rear final drive assembly |
Except for USA
| 1. | Steering angle sensor | 2. | ABS warning lamp | 3. | Brake warning lamp |
| 4. | VDC OFF indicator lamp | 5. | VDC warning lamp | 6. | Vacuum sensor (with ICC) |
| 7. | Front wheel sensor | 8. | ABS actuator and electric unit (control unit) | 9. | VDC OFF switch |
| 10. | Yaw rate/side G sensor | 11. | Rear wheel sensor | ||
| A. | Back of spiral cable assembly | B. | Combination meter | C. | Brake booster |
| D. | Steering knuckle | E. | Inside brake master cylinder cover | F. | Instrument driver lower panel |
| G. | Under center console | H. | Rear final drive assembly |
