System Diagram

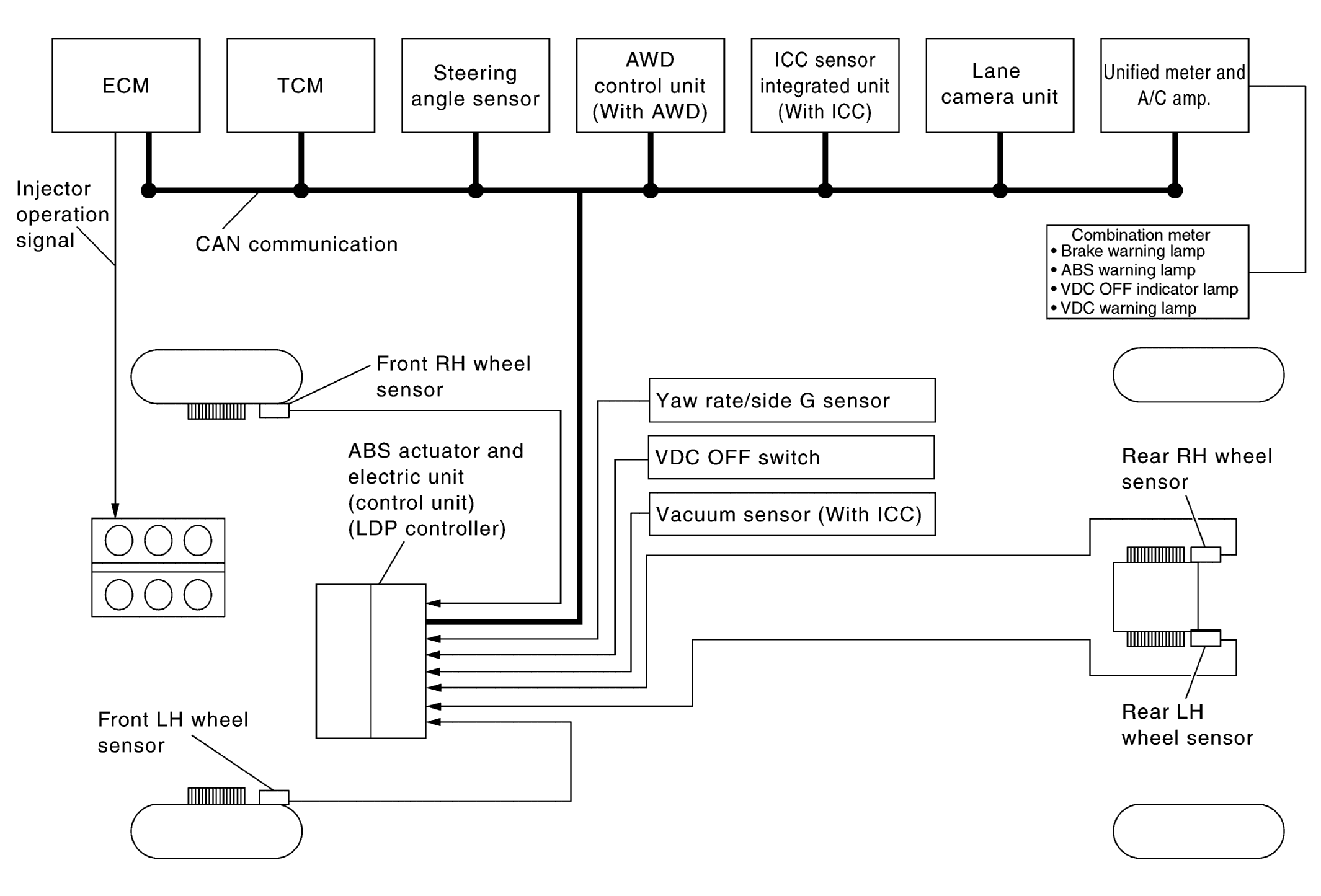

With LDP

G08993890Courtesy of NISSAN NORTH AMERICA, INC.

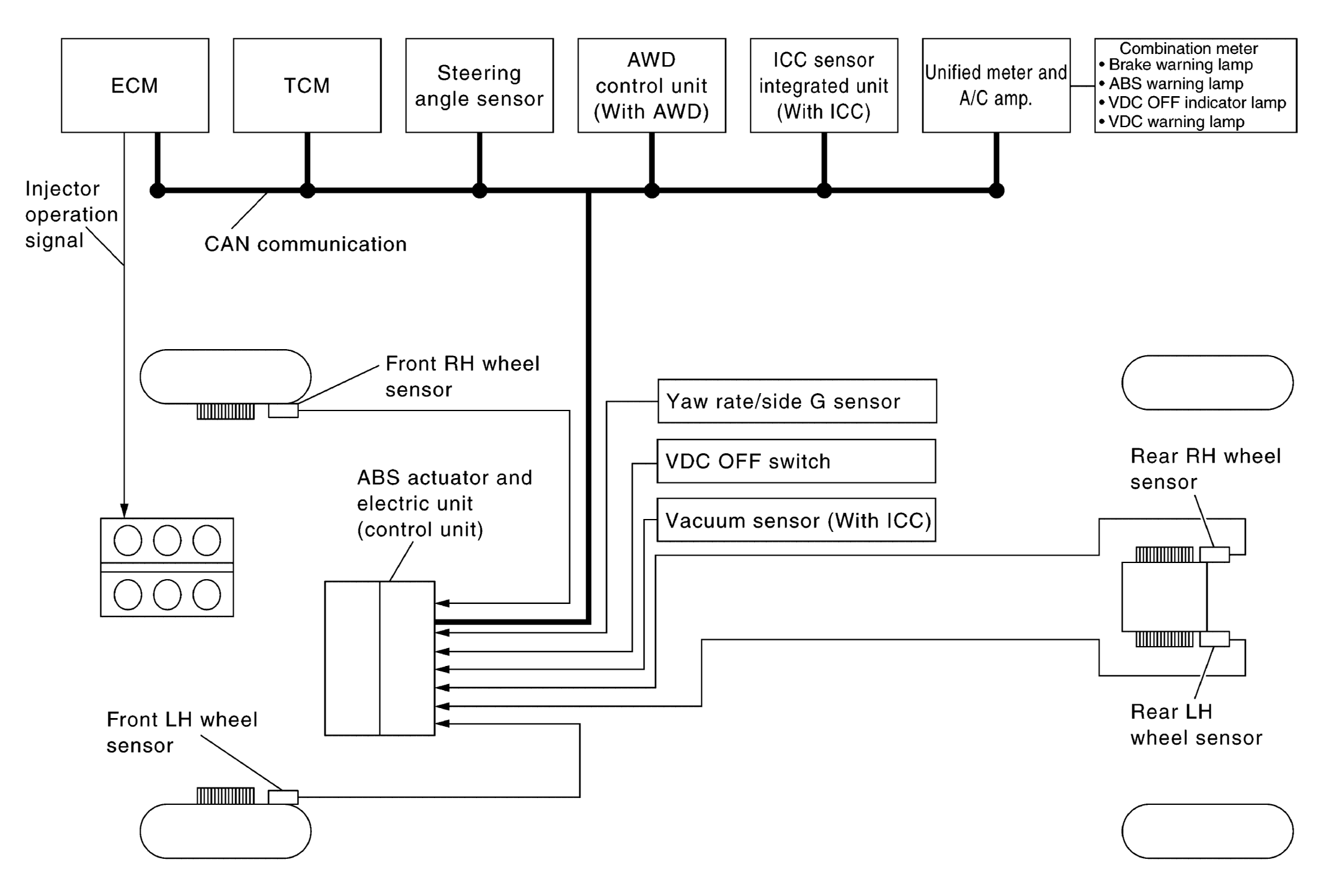

Without LDP

G08993891Courtesy of NISSAN NORTH AMERICA, INC.
