Av Control Unit Connector End View (M218)

Connector Types:  TH12FW-NH

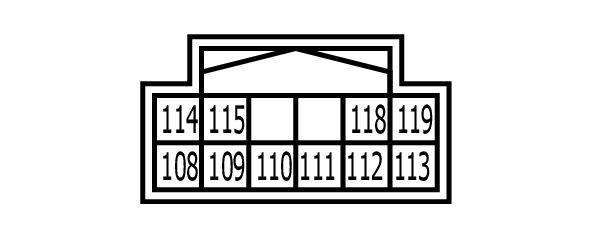

Fig 1: Terminal-side

Courtesy of NISSAN NORTH AMERICA

Fig 2: Harness-side

Courtesy of NISSAN NORTH AMERICA

Terminal No.	Color of Wire	Signal Name (Specification)
108	V	SOUND SIGNAL REAR RH (+)
109	P	SOUND SIGNAL FRONT RH (+)
110	W	AMP. ON SIGNAL
111	B	SHIELD
112	BR	SOUND SIGNAL REAR LH (+)
113	R	SOUND SIGNAL FRONT LH (+)
114	LG	SOUND SIGNAL REAR RH (-)
115	L	SOUND SIGNAL FRONT RH (-)
118	Y	SOUND SIGNAL REAR LH (-)
119	G	SOUND SIGNAL FRONT LH (-)
