Exploded View: Removal

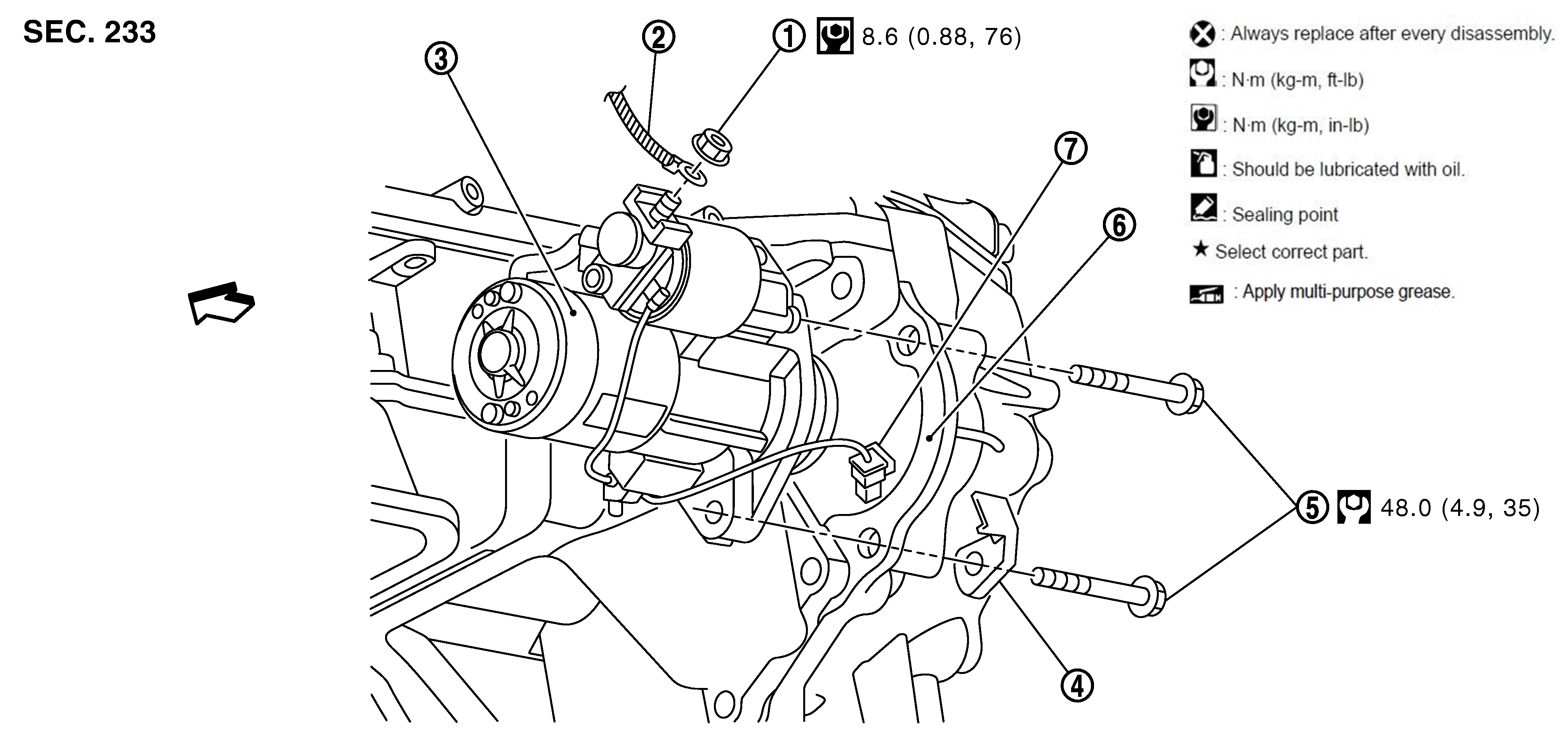

Fig 1: Starter Motor With Torque Specifications
GNSJPBIA0147GB-147ARROWBOLTBOLTINCourtesy of NISSAN NORTH AMERICA, INC.
1. "B" terminal nut 2. "B" terminal harness 3. Starter motor
4. Harness clip bracket 5. Starter motor mounting bolt 6. Converter housing
7. "S" connector
ARROW : Engine front
BOLT : N•m (kg - m, ft - lb)
BOLTIN : N•m (kg - m, in - lb)
