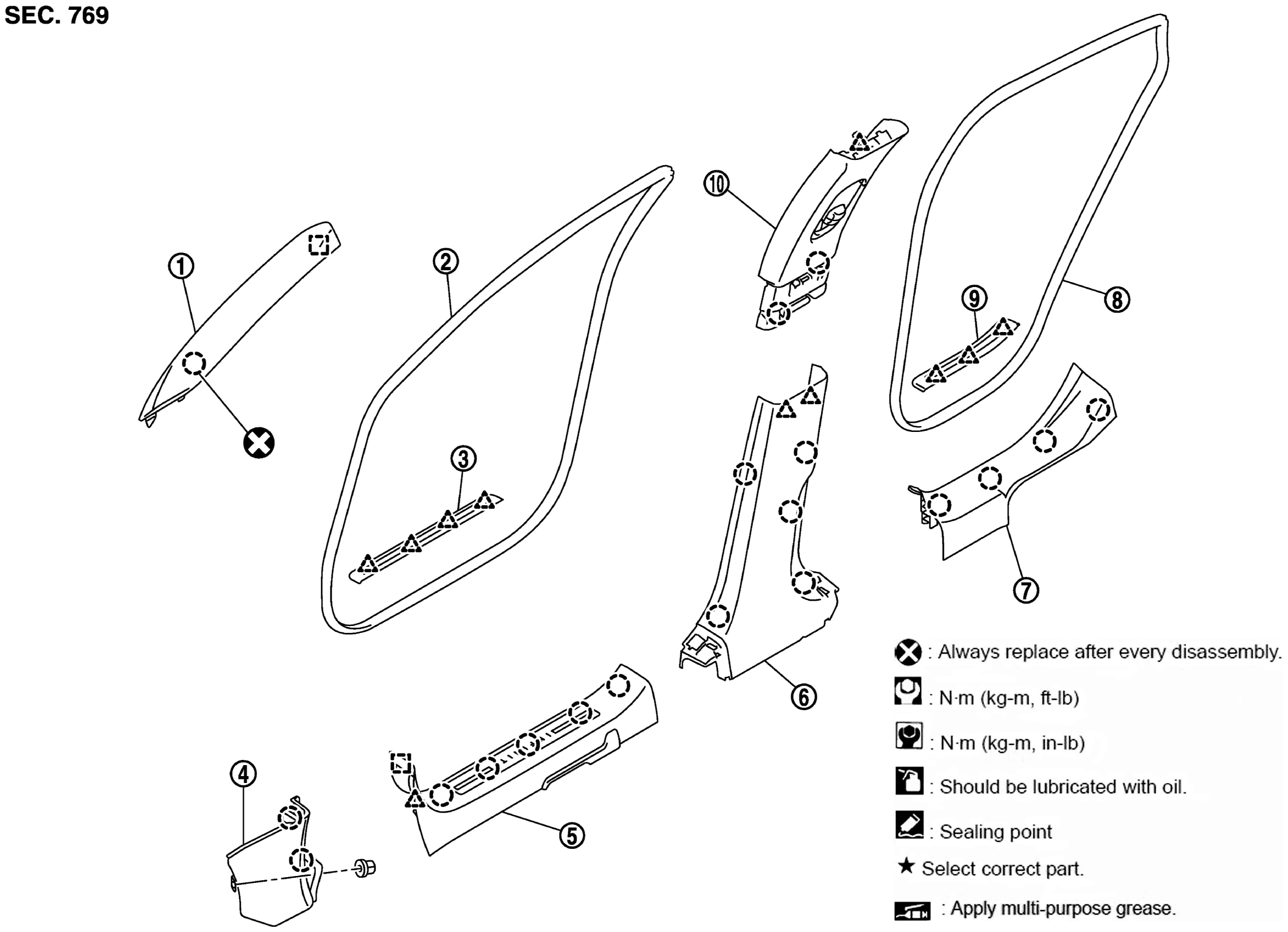

Exploded View With Torque Specifications

Courtesy of NISSAN NORTH AMERICA, INC.

1.	Front Pillar Garnish	2.	Front Body Side Welt	3.	Front Kicking Plate (Outer)
4.	Dash Side Finisher	5.	Front Kicking Plate (Inner)	6.	Center Pillar Lower Garnish
7.	Rear Kicking Plate (Inner)	8.	Rear Body Side Welt	9.	Rear Kicking Plate (Outer)
10.	Center Pillar Upper Garnish
	: Clip
	: Pawl
	: Metal clip
	: Always replace after every disassembly.
