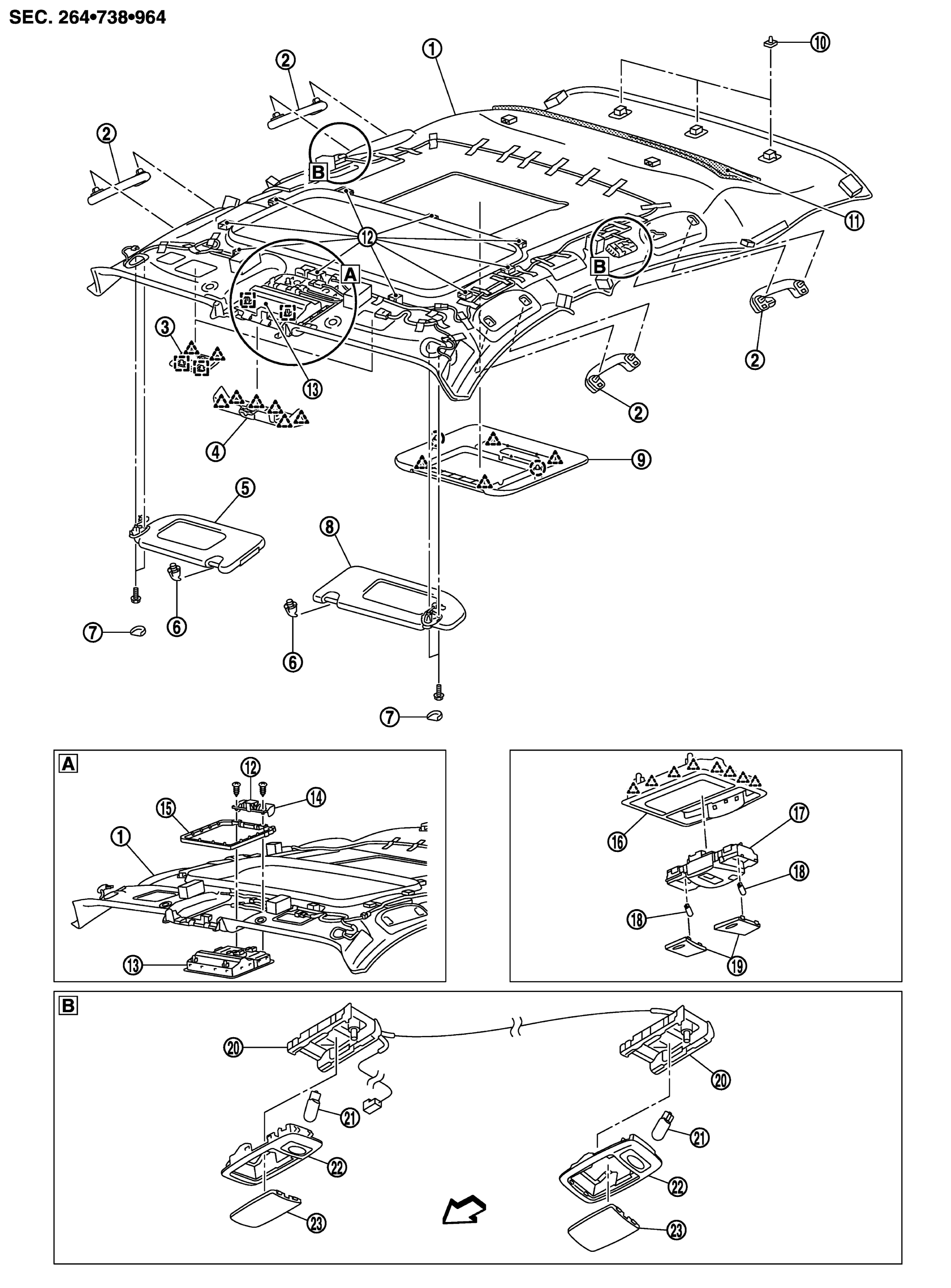

Exploded View With Torque Specifications
| 1. | Headlining Assembly | 2. | Assist Grip | 3. | Front Roof Finisher |
| 4. | Lane Camera Cover | 5. | Sun-Visor Assembly RH | 6. | Sun-Visor Holder |
| 7. | Sun-Visor Cap | 8. | Sun-Visor Assembly LH | 9. | Rear Monitor Assembly |
| 10. | Rear Hidden Clip | 11. | Roof Insulator | 12. | Dual Lock Fastener |
| 13. | Roof Console Assembly | 14. | Roof Console Bracket | 15. | Sunroof Module Plate |
| 16. | Roof Console | 17. | Map Lamp Assembly | 18. | Map Lamp Bulb (LH/RH) |
| 19. | Map Lamp Lens (LH/RH) | 20. | Personal Lamp Bracket (LH/RH) | 21. | Personal Lamp Bulb (LH/RH) |
| 22. | Personal Lamp Finisher (LH/RH) | 23. | Personal Lamp Lens (LH/RH) | ||
| : Clip | |||||
| : Pawl | |||||
| : Metal clip | |||||
| : Vehicle front |
